Summary of Contents for de Jong Duke Siro Touch 1600

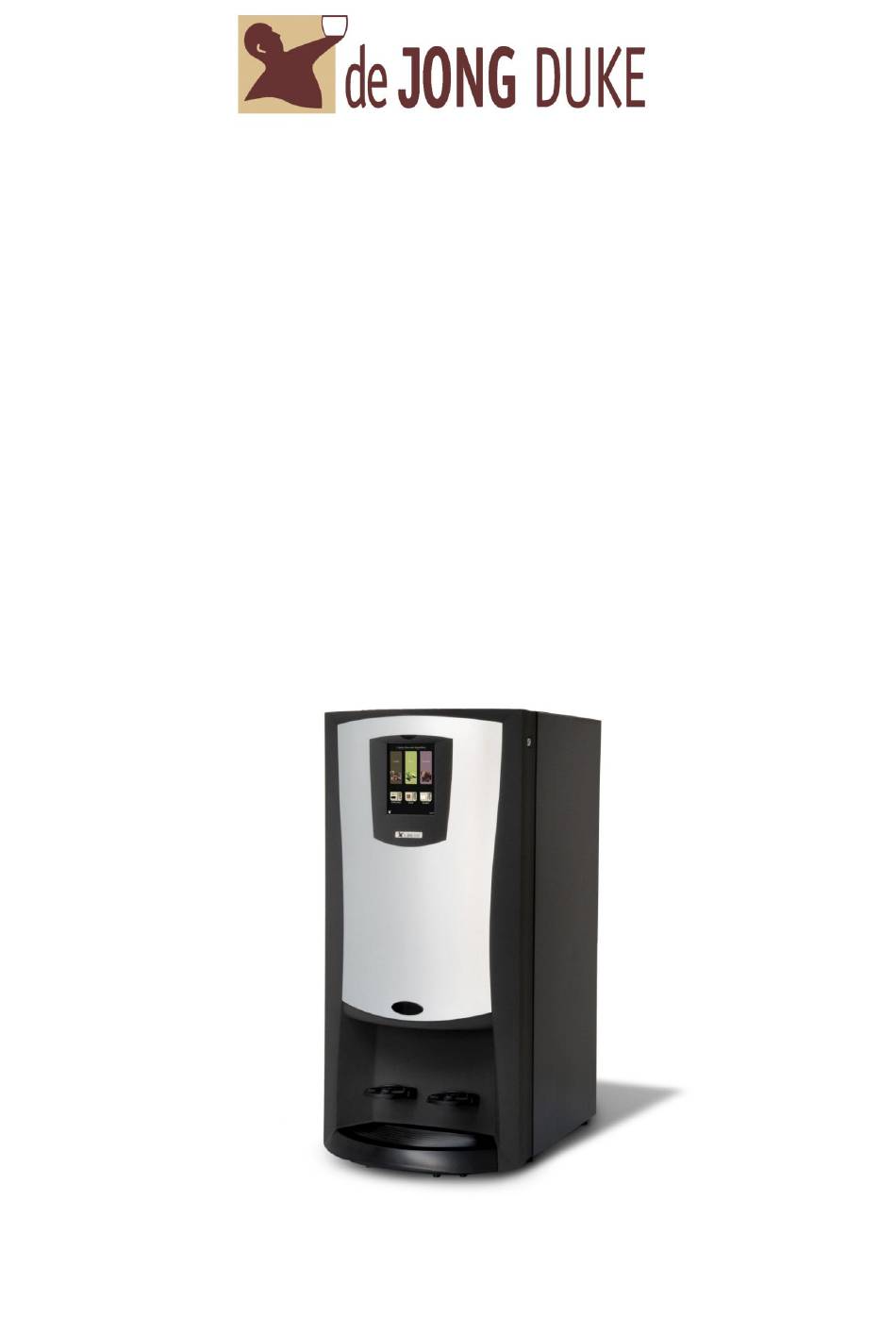

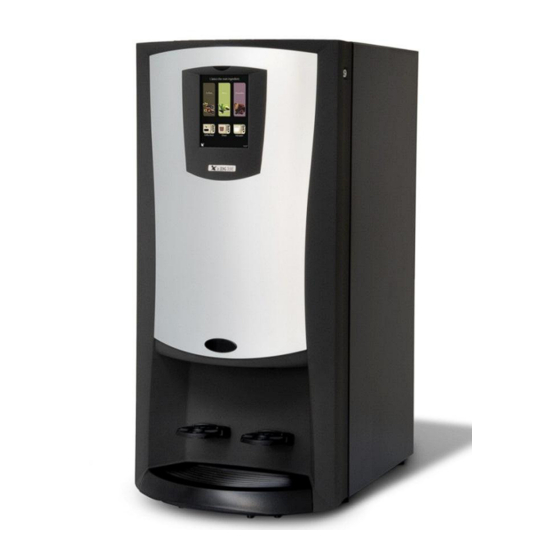

- Page 1 Coffee Machine Siro Touch 1600 series CoEx brewer - Freshbrew User Manual Picture: SiroTouch 1600 series Filename: SiroTouch-1600_9CND_UserManual_5DUCNH20c_EN_v01-01.docx...
-
Page 2: Disclaimer Manufacturer
SiroTouch 1600 series Disclaimer Manufacturer: Although this user manual has been put together with the utmost care, J.M. de Jong Duke automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions. -
Page 3: The Machine Supplier/ Dealer Is
User Manual SiroTouch 1600 series The machine supplier/ dealer is: Company name: Address: Area code – City: Country: Telephone: Fax: Internet: e-mail: For service and support, always contact the dealer / supplier of the machine by using the telephone service number below. Tel. -
Page 4: Table Of Contents
User Manual SiroTouch 1600 series Index: Disclaimer Manufacturer: ..................2 Copyright: ......................2 Manufacturer: ......................2 The machine supplier/ dealer is: ................3 Preface: ........................ 3 Index: ........................4 Safety ......................5 Safety and Risk levels: .................. 5 Safety and Warnings ..................6 Standards and norms: ................... -
Page 5: Safety
User Manual SiroTouch 1600 series 1. Safety Safety and Risk levels: Four safety and risk levels are used in this manual. The risk levels and explanations are described below. To warn persons / readers about the possibility of Danger: serious or fatal injury to themselves or others. To warn persons / readers about the possibility of Warning: minor injury to themselves or others. -
Page 6: Safety And Warnings
User Manual SiroTouch 1600 series Safety and Warnings The general safety warnings apply to the entire document. The risk level associated with the explanation below. Do not use water in or near the machine unless the instructions contain explicit directions to the contrary. -
Page 7: Standards And Norms
User Manual SiroTouch 1600 series Standards and norms: The machine is build according to CE norms The machine complies with the following standards: ● Machine standard: 89/392/EEG ● EMC standard: 89/336/EEG, The machine complies with the following norms: ● EN 292: safety of machines. ●... -
Page 8: Description Of The Machine
User Manual SiroTouch 1600 series 2. Description of the machine: General: Hot drinks are dispensed from the machine Take care to avoid scalding yourself. If cups or jugs are not correctly placed The machine will spill hot liquid down the front. This can cause serious burns. -
Page 9: Overview Of The Machine Interior
User Manual SiroTouch 1600 series Overview of the machine interior: Bean canister lid & lock Bean canister Base cabinet Bean canister Instant canisters lock Service lock Grinder Outlet tube(s) Mains Power switch Mixing bowls Brewer outlet Mixers CoEx Brewer Dispensing nozzles Waste bucket Driptray under CoEx brewer... -
Page 10: Type Plate
User Manual SiroTouch 1600 series Type plate: The type plate is mounted on the inside of the machine, at the top left. The following data is mentioned on the type plate: ● Name of manufacturer ● Serial number ● Type/model specification ●... -
Page 11: Technical Specifications
User Manual SiroTouch 1600 series Technical specifications: Dimensions of the machine: Height: 31.2 Width: 14.5 Depth: 20.9 Weight (empty): 99.2 Electricity: Mains supply (Europe): V AC Frequency: 50 ~ 60 Max. capacity: Max. capacity: (limited Power) Mains supply (North America): V AC Frequency: 50 ~ 60... -
Page 12: Before Use
User Manual SiroTouch 1600 series 3. Before use: Installation: Installation, transportation, and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking, and installation of the machine, see the technical manual. -
Page 13: Measure Of Cup And Jug Heights
User Manual SiroTouch 1600 series Measure of cup and jug heights: Measure A: Max cup diameter: 2.76 Measure B: Mounted default Max cup height: 4.33 Mounted low Max cup height: 4.92 Mounted high Max cup height: 3.74 Mounting high is discontinued from serial numbers 201106xxxxxxx Min height: Able to receive a volume of consumption... -
Page 14: Operation
User Manual SiroTouch 1600 series 4. Operation: Operating the machine in free vend mode: Risk of burning injuries when taking out the HOT beverages. When the hot beverages comes in contact with a person, this can lead to serious burn injuries on the human skin. If cups or jugs are not correctly placed. -
Page 15: Jug Dispensing
User Manual SiroTouch 1600 series Jug dispensing: Risk of burn injuries when taking out the HOT beverages. When the hot beverage comes in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. The machine will spill hot liquid down the front. -
Page 16: Maintenance And Filling
User Manual SiroTouch 1600 series 5. Maintenance and filling: Daily maintenance Failing to perform the daily maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine. Install the safety key (see paragraph: install safety key) Flush mixers and brewer: Place a jug underneath the nozzle to collect the hot water. -
Page 17: Weekly Maintenance
User Manual SiroTouch 1600 series Weekly maintenance: Failing to perform the weekly maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine Clean the mixing system: Remove the mixing system according to paragraph “Disassembling the mixing bowl”. Rinse out all loose parts of the mixing system in warm water. -
Page 18: Monthly Maintenance
User Manual SiroTouch 1600 series Monthly maintenance: Failing to perform the monthly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks must be performed monthly to ensure the machine operates correctly and optimal beverage quality is maintained. -
Page 19: Place Safety Key
User Manual SiroTouch 1600 series Place safety key: The machine is now powered up with open door. Warning: Parts in the machine can move automatically and hot water can flow out. Open the door and locate the safety key. Insert the safety key and turn a quarter turn clockwise or counter clockwise. SiroTouch-1600_9CND_UserManual_5DUCNH20c_EN_v01-01.docx Page 19 of 32... -
Page 20: Cleaning Cycle For Coex Brewer
User Manual SiroTouch 1600 series Cleaning cycle for CoEx brewer: Run the cleaning cycle for the coffee brewer weekly using the cleaning tablet. Not cleaning the brewer can cause the machine to Note: malfunction! Failure to clean the brewer weekly with the cleaning Note: tablet delivered by the manufacturer will void the warranty on related parts. -
Page 21: Fill Canisters
User Manual SiroTouch 1600 series Fill canisters: Do not fill the canisters further than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4-cm of product. - Page 22 User Manual SiroTouch 1600 series Fill canisters: 5. Fill the canister with the product indicated on the canister. Place the lid back on the canister. 6. Place the canister back in the machine. Make sure the drive at the back of the canister fits well on the motor drive. 7.
-
Page 23: Removal Of The Brewer
User Manual SiroTouch 1600 series Removal of the brewer: Removal of the brewer is necessary for performing maintenance. Only properly trained personnel may work on the brewer itself. Instructions for performing work on the brewer are found in the technical manual. Carry out the following procedure for removal of the brewer: Open the door of the machine. -
Page 24: Install The Brewer
User Manual SiroTouch 1600 series Install the brewer: Carry out the following procedure to replace the brewer: Place the brewer in the bracket. Push the brewer firmly in the machine until you hear a click and the green handle is turned downwards in its home position. -
Page 25: Disassembling The Mixing System
User Manual SiroTouch 1600 series Disassembling the mixing system: 1. Open the door. 2. Remove the mixers using the following procedure. 3. Remove the outlet pipes from the mixers. 4. Turn the bayonet catch counterclockwise (approx. 10º). Remove the mixer house. SiroTouch-1600_9CND_UserManual_5DUCNH20c_EN_v01-01.docx Page 25 of 32... - Page 26 User Manual SiroTouch 1600 series Disassembling the mixing system: 6. Pull the mixer parts towards you. 7. Pull the whipper blade towards you and off the shaft. 8. Turn the base plate counterclockwise and pull it towards you. 9. Ready Picture may be different based on model.
-
Page 27: Assembling The Mixing System
User Manual SiroTouch 1600 series 5.10 Assembling the mixing system: Procedure to assemble the mixer. Install the base plate. The arrow on the whipper blade must on the flat side Caution: of the mixer shaft. Install the whipper blade. Be sure that the arrow is at the flat side of the shaft. - Page 28 User Manual SiroTouch 1600 series 5.10 Assembling the mixing system: Install the mixer house. Turn the bayonet catch clockwise until it is locked. Install the outlet pipes on the mixers. Close the door. Check correct functionality by taking test beverages. Picture may be different based on model.
-
Page 29: Failure And Error Messages
User Manual SiroTouch 1600 series Failure and Error messages: Always check whether an error message is shown on the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. -
Page 30: Document Control
User Manual SiroTouch 1600 series Water filter installed? Consult the service engineer. Replace water filter Consult the service engineer Shortcut temp.sensor Consult the service engineer Temp. sensor disconnected Consult the service engineer Temp. boiler to high Consult the service engineer Water level to low Consult the service engineer Document control:... -
Page 31: Notes
User Manual SiroTouch 1600 series Notes: SiroTouch-1600_9CND_UserManual_5DUCNH20c_EN_v01-01.docx Page 31 of 32... - Page 32 User Manual SiroTouch 1600 series SiroTouch-1600_9CND_UserManual_5DUCNH20c_EN_v01-01.docx Page 32 of 32...
