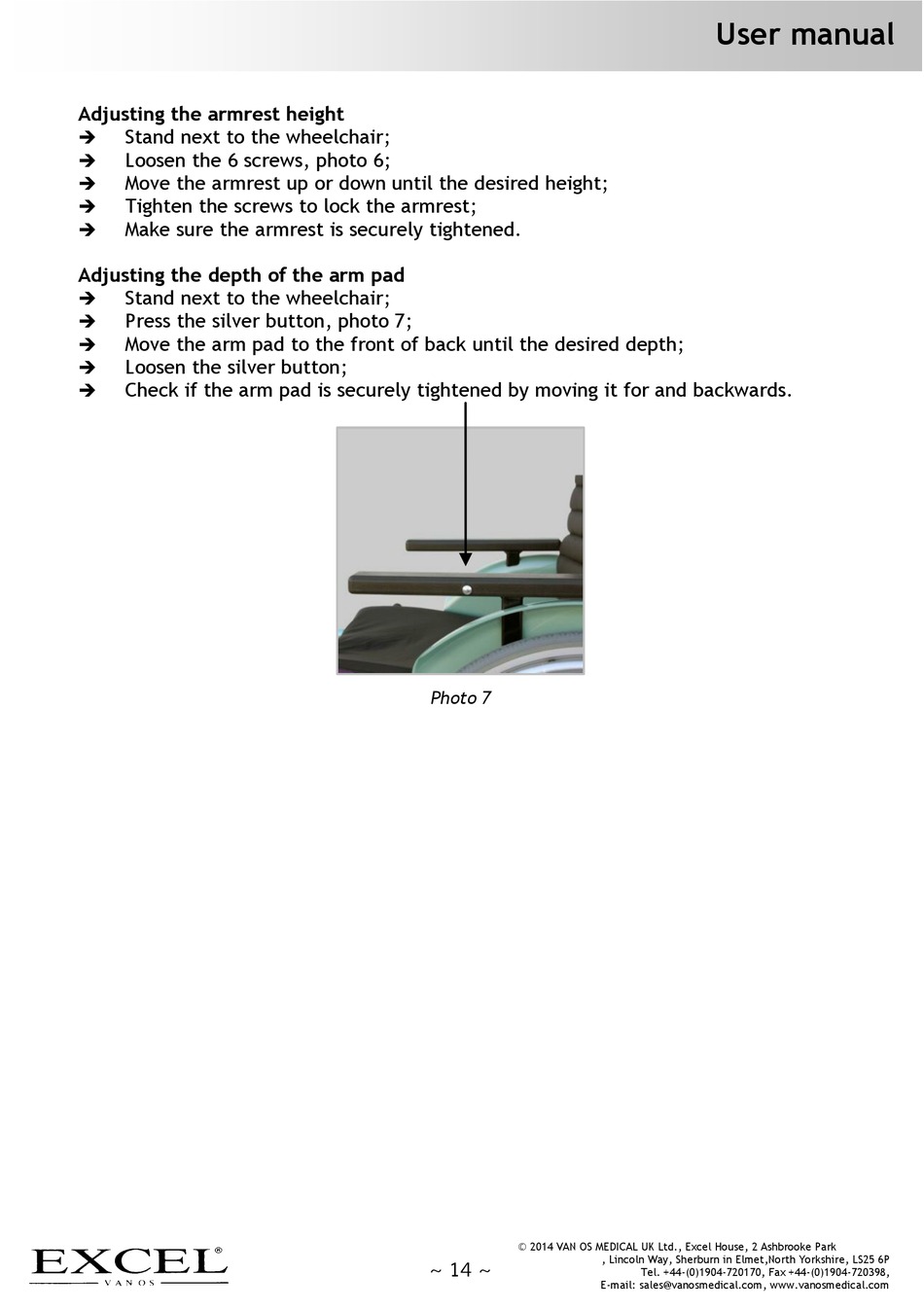

Adjusting the armrest height

Stand next to the wheelchair;

Loosen the 6 screws, photo 6;

Move the armrest up or down until the desired height;

Tighten the screws to lock the armrest;

Make sure the armrest is securely tightened.

Adjusting the depth of the arm pad
Stand next to the wheelchair;

Press the silver button, photo 7;

Move the arm pad to the front of back until the desired depth;

Loosen the silver button;

Check if the arm pad is securely tightened by moving it for and backwards.

Photo 7
