Using the
battery pack
Start
Charging the
battery pack
The battery is not fully charged out of the
carton. Make sure you read and understand
all of the safety instructions on page 2-3 before
attempting to use the equipment.
Follow the steps on the right to charge the
battery pack.
Low battery indicator
The indicator operates only when the trigger is
pulled.
A blinking red light while pulling the trigger
indicates that there is approximately one quart
of spray time left until the battery will need to be
recharged. This is a good time to find a place
to stop spraying.
A solid red indicator light while pulling the
trigger means that the sprayer has shut itself
off, and the battery needs to be recharged.
1
(a)

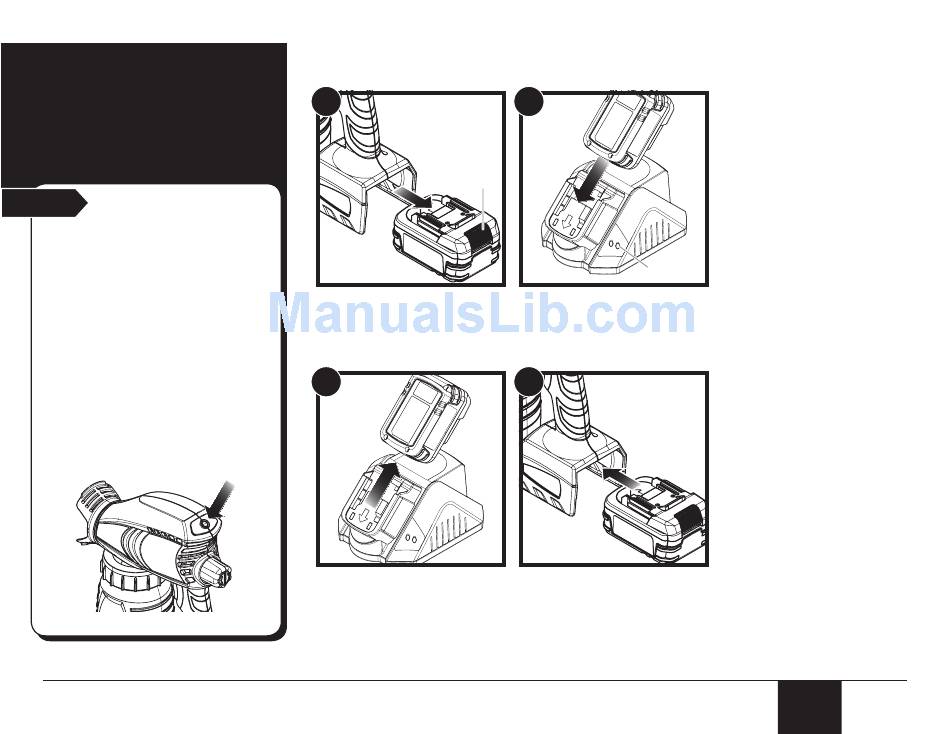

1. Press the button on the rear of the
battery pack (a) to unlock it. Slide
the battery pack from the handle as
shown.
3
3. When the battery pack is fully
charged, unplug the charger and
remove the battery pack from the
charger.
5
2
(b)
2. Slide the battery pack into the
charger as shown. Make sure
you hear the battery pack "snap"
into place. Plug in the charger.
4
4. Slide the battery pack into the
sprayer handle as shown. Make
sure you hear the battery pack
"snap" into place.
Notes:
The indicator lights (b) on the
charger show the following:
Blinking green:
battery pack is charging
Solid green:
battery pack is fully charged
Red:
battery pack is not properly placed in
the charger. Remove the battery to
reset the charger. Firmly replace the
battery pack
It will take approximately one hour
for the battery pack to be fully
charged.
Notes:
• A fully charged battery pack will
allow you to spray approximately
eight (8) quarts.
• If the red charger indicator light
stays lit even though the battery
pack is properly seated, the
battery pack may be defective.
Call customer service at 1-866-
848-2698.
