Reassembly /
Maintenance
Start You will need:
• Scrap piece of wood or cardboard
• Household oil
ImpoRTANT: make sure the battery
pack is removed from the spray gun.
4

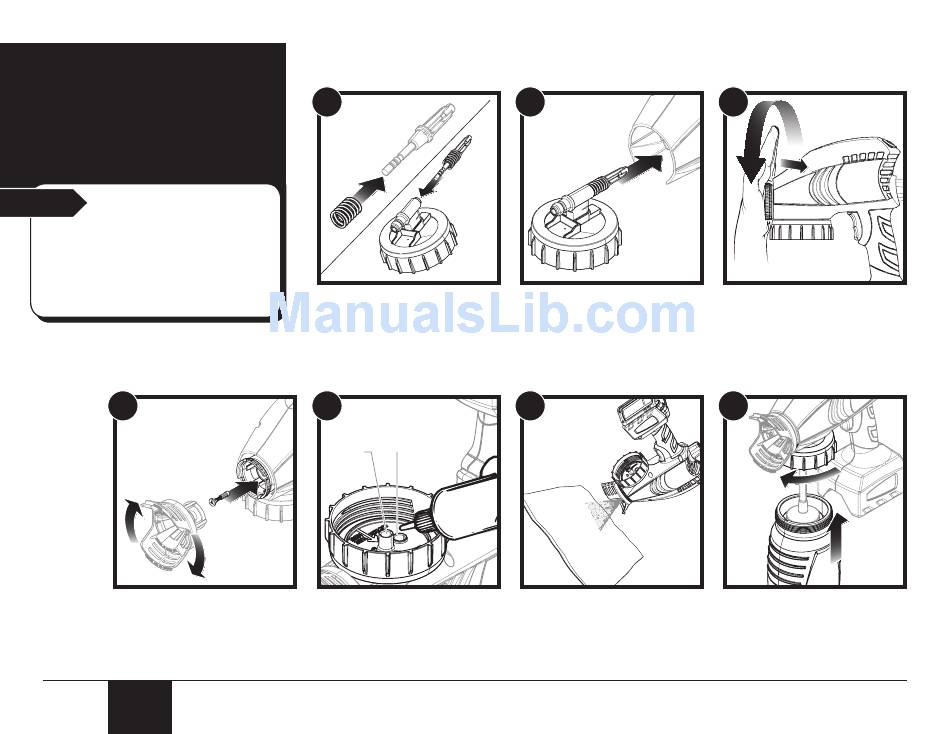

4. Insert the atomizer valve into the
front end of the pump housing.
Place the spray tip onto the pump
housing and turn it clockwise until
it is tightened securely.
English
1
1. Slide the spring onto the front
end of the piston.
Insert the piston into the back
of the pump housing.
5
(b)
(a)
5. Turn the sprayer upside-down
while the material container
is removed. Squeeze a small
amount of standard household
oil into both the intake (a) and
return (b) openings on the
pump housing.
14
2
2. Insert the pump housing
assembly into the front of the
sprayer.
6
6. Replace the battery pack.
Aim at piece of scrap wood or
cardboard and squeeze the
trigger of the sprayer for 2 to
3 seconds while sprayer is still
inverted.
3
3. Place the locking nut onto the
motor housing. Press in while
turning the locking nut clockwise.
Tighten firmly with the spray tip.
do not cross-thread the
locking nut. make certain it
is threaded correctly before
tightening.
7
7. Replace the suction tube.
Replace the material container.
