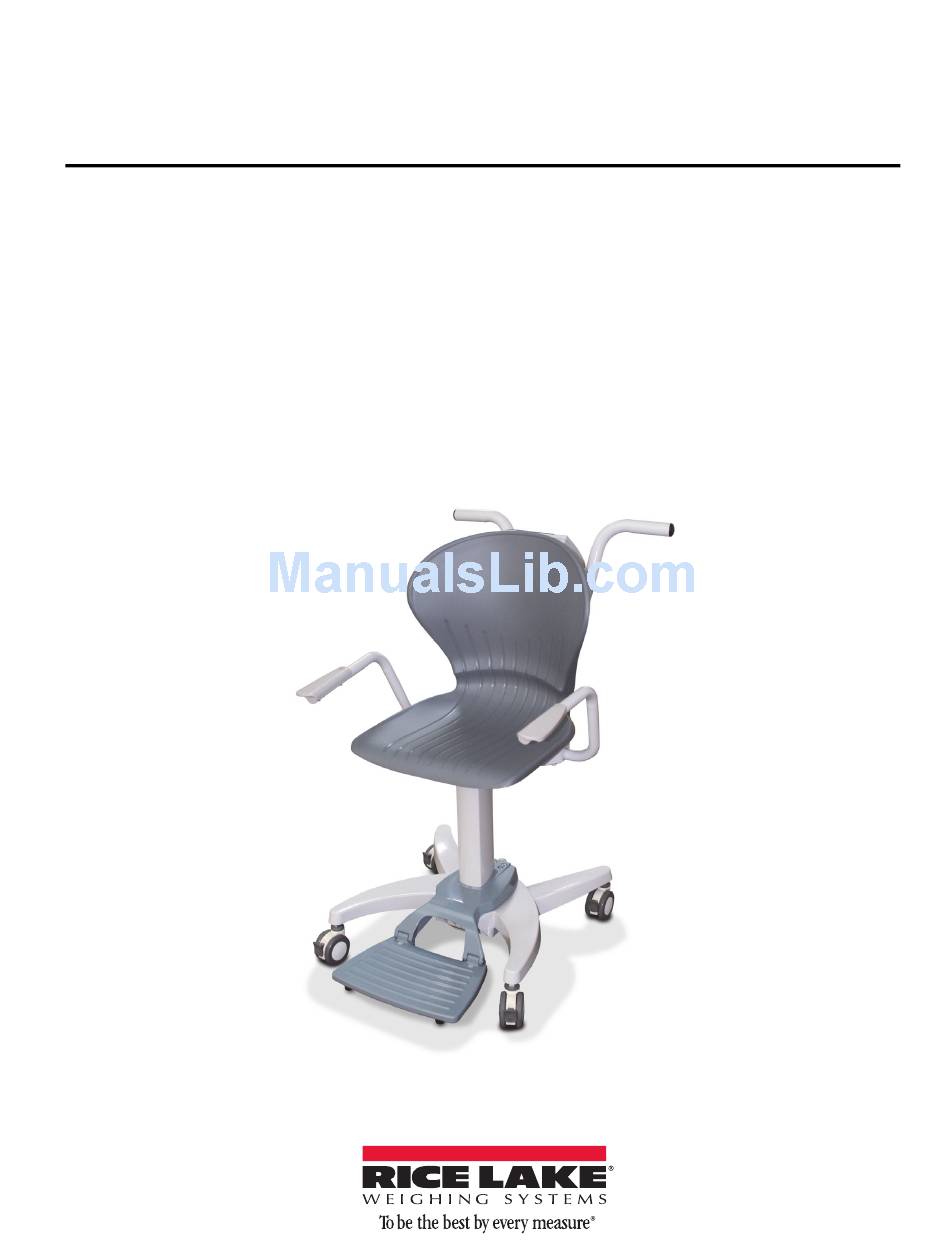

- Page 1 Rice Lake Digital Chair Scale Model 550-10 Software Revision 11454 Operation Manual PN 130893 Rev E...
-
Page 3: Table Of Contents
715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. Software version 114154 December 2014, Rev. E... - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Rice Lake 550 Digital Chair Scale Operation Manual...
-
Page 5: Introduction
Introduction The Rice Lake 550 Digital Chair scale is efficiently designed to provide accurate, reliable and repeatable weight measurements and has features that enable a fast and convenient weighing process. The Rice Lake 550 Digital Chair scale features an ergonomic design, has two armrests that can be lifted separately and a foot rest that can be folded. -
Page 6: Safety Precautions
Safety With the Rice Lake 550 Digital Chair scale there are certain precautions that should be taken to prevent personal injury to the user and damage to your scale. Safety Signals Safety Signal Definitions: WARNING Indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury CAUTION Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. -
Page 7: Scale Assembly
M6 x 16 Allen screws (4) — (to attach seat to base) Save Packaging If the Rice Lake 550 Digital Chair scale must be returned for any reason, it must be properly packed with sufficient packing materials in the original carton. - Page 8 3. Remove top Styrofoam piece and remove the seat from the attached Styrofoam. Figure 3-2. Remove Seat From Packaging 4. Set the seat aside for later assembly. 5. Remove the side and the back handle Styrofoam pieces. Figure 3-3. Remove Side Styrofoam Pieces From Packaging The c hair is heavy so use assistance in taking it out of the box and placing it on the floor, making sure it Note...
- Page 9 6. Lift chair off of Styrofoam packing material using assistance and place it on the floor. Figure 3-5. Lift Chair off of Styrofoam Bottom Packaging 7. Collect the Styrofoam pieces and place them back in the carton box. Chair Assembly Use the following steps to assemble the chair.
- Page 10 3. Remove Styrofoam pieces from the main handle. Figure 3-7. Remove Styrofoam Packing Pieces from Main Handle 4. Pull out the back handle frame and rotate it so that the indicator will be facing up. Figure 3-8. Pull out Frame and Rotate 5.
- Page 11 6. Connect the load cell cable and indicator cable making sure to position the load cell cable on the grooves so that it doesn’t get damaged or pinched. Figure 3-10. Connect Load Cell Cable and Indicator Cable 7. Use the Allen key (provided) to release both screws holding the arm rest frame (marked with circles below). Figure 3-11.
- Page 12 11. Use level bubble to check for level and adjust feet as needed by adjusting bolts located on top of each caster wheel. Bubble level location Adjust bolt located above caster to adjust bubble level Figure 3-14. Bubble Indicates that the Scale is Level Note Ensure casters are in a locked position prior to having a patient sit down on the chair scale.
- Page 13 AC Power Connections The Rice Lake 550 Digital Chair scale has an optional 120 VAC adaptor or 230 VAC adaptor to use when power is readily available. The optional AC power adaptor plugs into the back of the indicator as shown in Figure 3-18.
-
Page 14: Scale Operation
Scale Operation The Rice Lake 550 Digital Chair scale display has various front panel keys. They are shown below. Figure 4-1. Rice Lake 550 Digital Chair Scale Front Panel Display Keys Key Descriptions Table 4-1 describes each of the Rice Lake 550 Digital Chair scale’s key functions. -
Page 15: Weighing
Name Function ENTER Used to accept height in BMI mode. ENTER Up/Down Arrows Used to adjust height input (0.5 in/0.5 cm) while in BMI mode. Table 4-1. Digital Chair Scale Key Functions The keys on the front panel display are very sensitive so only a gentle pushing motion is required to Note obtain results. -
Page 16: Toggle Tare
Toggle Tare Use the following steps to use the Toggle Tare function: 1. When the weight is set to , press the key. TARE 2. The default tare value is displayed (default is programmed to be 33.0 Lb/15.0 Kg), while the zero is flashing. -
Page 17: Rs-232 Communication
PATIENT BMI 28.4 USB Connection The Rice Lake 550 Digital Chair scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). That connection location is shown in Figure 5-1. USB Connection RS-232 Connection Figure 5-1. - Page 18 The USB driver can be downloaded from the Rice Lake Weighing Systems website at the following location; http://www.ricelake.com/software.aspx Select Medical/Health Scales, Software and Get Downloads. Opening any product will show a USB driver download.
- Page 19 6. If you want to verify the installation, you can view the driver by looking at the device manager of your system. 7. To print a ticket using the USB driver, open the software driver (shown above) and the port assigned to that driver is shown.
-
Page 20: Troubleshooting And Testing
Table 6-1. Troubleshooting Table for the Rice Lake Scale Line Maintenance The following section provides instructions for maintaining and cleaning the Rice Lake line of scales. Maintenance operations other than those described in this section should be performed by qualified service personnel. -
Page 21: Rice Lake 550 Digital Chair Scale Specifications
660 Lb (300 Kg) 0.2lb (0.1Kg) Seat Dimension 17"W x 15"L x 16"H Inner Dimension arm to arm at narrowest point 19-3/4" Certifications and Approvals RoHS Compliant Digital Chair Scale Operation Manual - Rice Lake 550 Digital Chair Scale Specifications... -
Page 22: For More Information
For More Information System Manuals • Rice Lake 550 Digital Chair Scale Technical Manual, PN 155191 Literature • 4-color 550-10 Series Digital Chair Scale 550-10 Series literature, PN 130955 Web Site • http://www.ricelakehealth.com Contact Information Hours of Operation Knowledgeable customer service representatives are available 6:30 a.m. - 6:30 p.m. Monday through Friday and 8 a.m. - Page 23 Digital Chair Scale Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two years.
- Page 24 Digital Chair Scale Operation Manual...
- Page 26 230 W. Coleman St. Rice Lake, WI 54868 USA U.S. 800-472-6703 Canada/Mexico 800-321-6703 International 715-234-9171 Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in m.ricelake.com © Rice Lake Weighing Systems 12/2014 PN 130893 Rev E...
