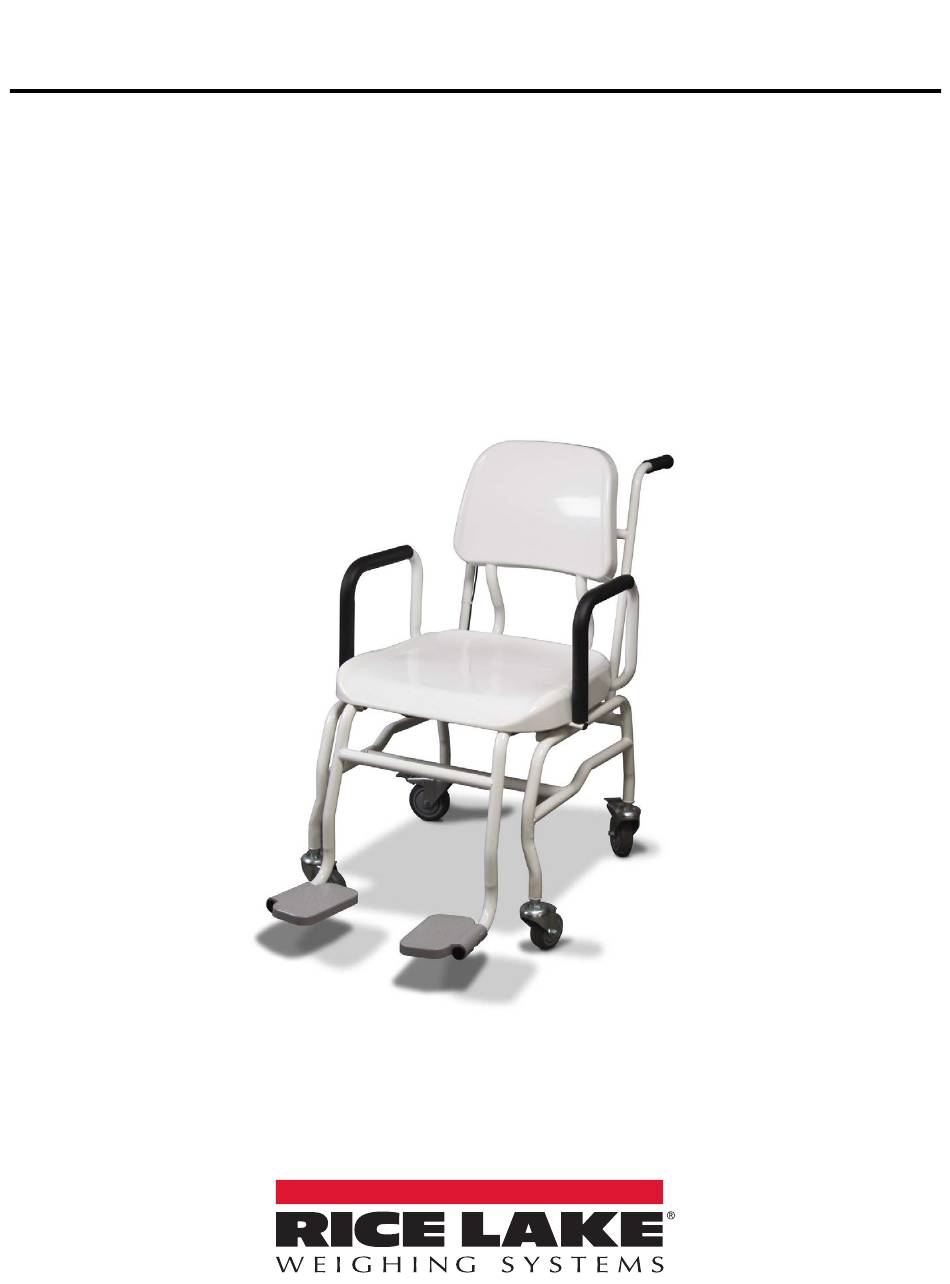

- Page 1 560-10-1 Digital Chair Scale Software Version 11525 Operation Manual December 9, 2024 PN 167393 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Revision History
December 9, 2024 Revised battery replacement instructions Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. -
Page 4: Table Of Contents
6.0 Specifications ............... . . 22 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
The 560-10-1 digital chair scale is efficiently designed to provide accurate, reliable and repeatable weight measurements and has features that enable a fast and convenient weighing process. The 560-10-1 digital chair scale features a robust design, two armrests that can be lifted separately and two foot rests that can be folded up for easy patient access. The scale has four swivel caster wheels including two rear locking wheels. -
Page 6: General Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Assembly
Unpacking Place the unopened box in an open area that has ample room for unpacking the scale. Visually inspect the 560-10-1 digital chair scale to ensure all components are included and undamaged. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. -
Page 8: Repackaging
Used to attach the indi- cator plate to the han- dle frame Table 2-1. (Continued)560-10-1 Digital Chair Scale Component Parts 2.1.1 Repackaging Retain the packaging for use in the event that the scale must be returned or moved. The product must be properly packed with sufficient packing materials. -
Page 9: Setting Up Scale
Assembly Setting Up Scale Use the following steps to set up the 560-10-1 digital chair scale. 1. Move the carton to an area where the scale can be assembled. It’s recommended that the scale be placed on a hard, level surface for the most accurate weighments. -
Page 10: Attach Indicator Display To Chair
560-10-1 Digital Chair Scale 2. Use the four (4) 1/4 x 3/8 inch bolts provided in the parts kit bag to bolt the footrests onto the frame. Figure 2-3. Secure with Screws 2.2.2 Attach Indicator Display to Chair Use the following steps to attach the display to the handle assembly. -
Page 11: Attach Seat To Scale Base
2.2.4 Arm Rests The 560-10-1 digital chair scale has two arm rests that can be lifted separately for easy patient access. The arm rests are permanently mounted to the chair scale seat. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Load Cell Connection
560-10-1 Digital Chair Scale 2.2.5 Load Cell Connection The scale comes with the load cell cable coiled and ready to plug into the back of the indicator. 1. Uncoil the load cell cable and route along the chair scale frame. Secure with six (6) zip ties (included). -
Page 13: Insert Batteries
An optional AC power adapter can be used when a power outlet is available. IMPORTANT: Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 14: Casters
560-10-1 Digital Chair Scale Casters The 560-10-1 digital chair scale comes equipped with four casters. Ensure casters are in a locked position prior to having a patient sit down on the chair scale. Figure 2-13. Caster Wheels (one of four shown) www.RiceLake.com... -
Page 15: Scale Operation
Adjusts height input (0.5 in/0.5 cm) while in BMI mode Down Arrows Adjusts the value of the flashing digit/number Adjusts height input (0.5 in/0.5 cm) while in BMI mode Table 3-1. Key Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Weighing
560-10-1 Digital Chair Scale Weighing Use the following steps to weigh. to turn on the scale. 0.0 appears on the display along with the ZERO annunciator. 1. Press 2. Place the patient on the scale. The patient’s weight is displayed, the LOCK annunciator is on and the indicator beeps to indicate the end of the weighing process. -
Page 17: Using The Body Mass Index (Bmi) Function
5. Press ENTER 6. The BMI value and BMI annunciator are shown on the display. Press to return to the Weighing mode and the CLEAR BMI function will be turned off. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Troubleshooting
560-10-1 Digital Chair Scale Troubleshooting Refer to the following table to check and correct any failure before contacting service personnel. Symptom Possible Cause Corrective Action Scale does not turn on Dead batteries Replace batteries or connect to AC power Faulty electrical outlet... -
Page 19: Communication
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section on the next page. -
Page 20: Usb Connection
560-10-1 Digital Chair Scale USB Connection The scale has the capability of connecting to a Windows computer (PC) using a USB cable (not included) and a terminal ® emulation program. A terminal emulation program allows the transfer of data between the scale and PC using a serial port. -
Page 21: Maintenance
• Clean all external surfaces with a clean, damp cloth or tissue. Mild soap and water solution may be used. Dry with a clean soft cloth • Do not immerse the scale into cleaning or other liquid solutions • Do not use Isopropyl alcohol or other solutions to clean the display surface © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Specifications
560-10-1 Digital Chair Scale Specifications Power Optional AC Adapter - 120 VAC-9VDC-60Hz / 230 VAC-9VDC-50Hz Battery Type (6) AA size Alkaline batteries Battery Use 25 hours continuous use Automatic power-off can be configured Data Communications RS-232 with RJ-45 jack USB Connection... - Page 24 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 December 9, 2024 PN 167393 Rev B www.ricelake.com...
