Summary of Contents for LAMBORGHINI PYROTHERM 30

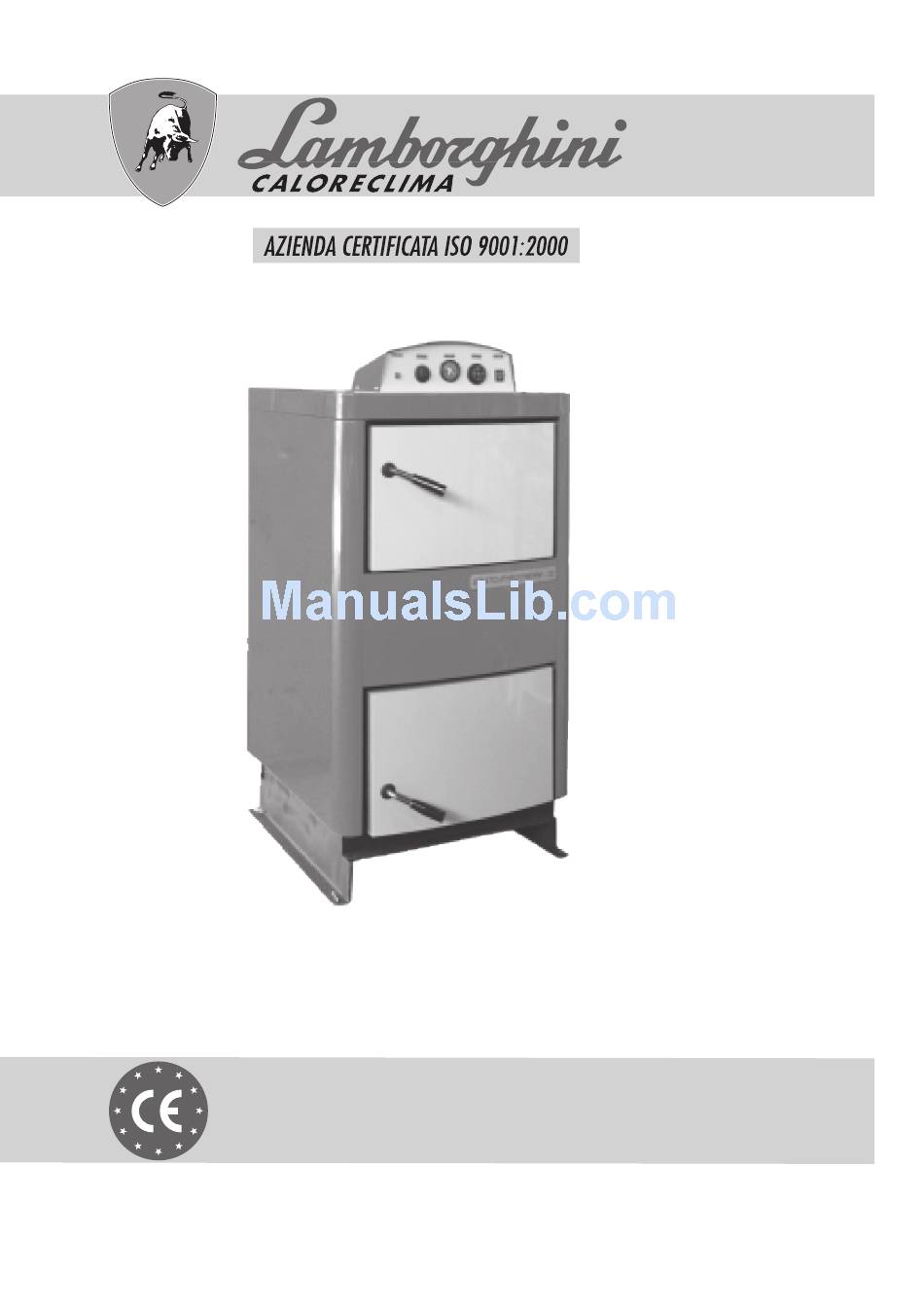

  • Page 1 CALDAIA A LEgNA - PELLET ECOLOgICAL WATER-HEATINg BOILERS CHAUDIèRES éCOLOgIqUES à EAU 30-35-50 PYROTHERM LIBRETTO DI INSTALLAZIONE E MANUTENZIONE INSTALLATION AND MAINTENANCE MANUAL NOTICE D’INSTALLATION ET D’ENTRETIEN...
  • Page 2 Please read the instructions carefully as they provide important information about the safety, installation, use and maintenance of the boiler. Keep the manual in a safe place for future consultation. Installation must be carried out by qualified personnel in conformance with technical standards, the national and local laws in force, and the instructions in the manual provided with the equipment.
  • Page 3 LAMBORGHINI CALORECLIMA is daily committed to the search for innovation technical solutions that will meet all requirements. The constant presence of our products on the Italian and international markets is guaranteed by a widespread network of Agents and Dealers who are backed up by “LAMBORGHINI SERVICE”, which ensures qualified equipment assistance and maintenance.
  • Page 4: Table Of Contents

    GENERAL CONTENT GENERAL PURPOSE Page 18 TECHNICAL DATA “ PACKAGING “ CONSTRUCTION “ INSTALLATION INSTRUCTIONS FOR INSTALLATION Page 20 ELECTRICAL DIAGRAM OF THE CONTROL PANEL “ CONNECTING DIAGRAMS “ PROTECTION OF THE BOILER FROM OVERHEATING “ USE AND MAINTENANCE INSTRUCTIONS FOR EXPLOITATION Page 24 IGNITION “ FILLING-UP WITH FUEL “ MODES OF OPERATION “ CLEANING THE BOILER “ - 1...
  • Page 5: Purpose

    GENERAL PUrPOSE The ecological water-heating boilers PYROTHERM are designed to warm family houses, offices, small production plants and other small and medium-sized accommodations. The boilers are built exclusively for burning wood. Almost any kind of dry wood with a maximum length of 500-750 mm, according to the type of boiler, can be used for the purpose.
  • Page 6: Packaging

    GENERAL PACKAGING Steel piece Rake piece Manual for installation and exploitation piece Paper of quality piece Warranty card piece HONEYWELL Braukmann – thermo regulator FR124 piece CONSTrUCTION The ecological water-heating boilers PYROTHERM are created for pyrolitic burning of logs, and, after the installation of the appropriate container, for pellets as well.
  • Page 7: Installation

    INSTALLATION INSTALLATION INSTrUCTIONS CAUTION! • The installation and maintenance of pyrolitic boilers is done only by a specialized firm authorized to carry out such activities. • The installation of the boilers requires the preparation of a preliminary project that complies with the active norms and prescriptions.
  • Page 8: Electrical Diagram Of The Control Panel

    INSTALLATION ELECTrIC DIAGrAM Of THE CONTrOL PANEL 1X-1 1X-2 1X-3 1X-4 safety device failure thermostat luminous net switch “POWER” thermostat for exhaust gases switch for mode selection “Pellet burner” signal lamp “ALARM” boiler thermostat “Thermostat-B” CONNECTING DIAGrAMS RECOMMENDED DIAGRAM FOR CONNECTING THE BOILER WITH A THERMO-REGULATING VALVE TS 130 - 2...
  • Page 9 INSTALLATION RECOMMENDED DIAGRAM FOR CONNECTING THE BOILER WITH AN ACCUMULATING VESSEL RECOMMENDED CONNECTION OF THE BOILER WITH A 4-WAY VALVE boiler heating system 4-way mixing valve regulator temperature sensor temperature sensor circulation pump - 2...
  • Page 10: Protection Of The Boiler From Overheating

    INSTALLATION RECOMMENDED SCHEME FOR CONNECTION WITH A SPECIAL CONTROL VALVE BLOCk AND ACCU- MULATING VESSEL PrOTECTION Of THE BOILEr frOM OvErHEATING Boiler with a coolant and a safety valve regulated by temperature Honeywell TS 130-3/4 A (temperature of opening the valve 95 degrees) Filter TS 130 Water supply from the...
  • Page 11: Use And Maintenance

    USE AND MAINTENANCE EXPLOITATION INSTrUCTIONS CAUTION! • Pyrolitic boilers are brought into exploitation only by a specialized firm authorized to carry out such activity. Before starting to use the boiler, the following things have to be checked: a) the heat system must be filled with water; The water used for filling the boiler and the heat system must be transparent, colorless, without sediments, oil and aggres- sive chemical additives.
  • Page 12: Ignition

    USE AND MAINTENANCE IGNITION We plug the boiler in the electric mains via a power cable. The ignition valve and the upper door are opened and we put dry splinters over the fire-resistant forms perpendicular to the nozzle, so that there is a 2-3 cm distance between them (the splinters do not block the nozzle). Paper, splinters and logs are placed on top of them, we light the fire and wait for the wood to start burning, then we add more logs and, after these have are aflame as well, we close the door of the upper fuel compartment, close the ignition valve and switch the fan on from the control panel.
  • Page 13 USE AND MAINTENANCE CAUTION! • The adjustment of the air valve should only be done by a qualified technician, and within 2-3 mm margin. Fuel The power and duration of the burning depend on the quality of the wooden material. Oak, beech, ash-tree, sycamore and the fruit trees are the best quality wood for burning.
  • Page 14: Cleaning The Boiler

    USE AND MAINTENANCE CLEANING THE BOILEr Cleaning the boiler begins by switching off the fan. It must be done periodically and thoroughly every 3 to 5 days, since the ash that has accumulated in the fuel chamber, as well as the condensations and the tar reduce significantly the average life expectancy and capacity of the boiler, and also isolate the surface that conducts heat.
  • Page 15 TrATTAMENTO ACQUA CONDIZIONAMENTO Le illustrazioni e i dati riportati sono indicativi e non impegnano. La LAMBOrGHINI si riserva il diritto di apportare senza obbligo di preavviso tutte le modifiche che ritiene più opportuno per l’evoluzione del prodotto. The illustrations and data given are indicative and are not binding on the manufacturer. LAMBOrGHINI reserves the right to make those changes, considered necessary, for the improvement of the product without forwaming the customer.

This manual is also suitable for:

Pyrotherm 35Pyrotherm 50
