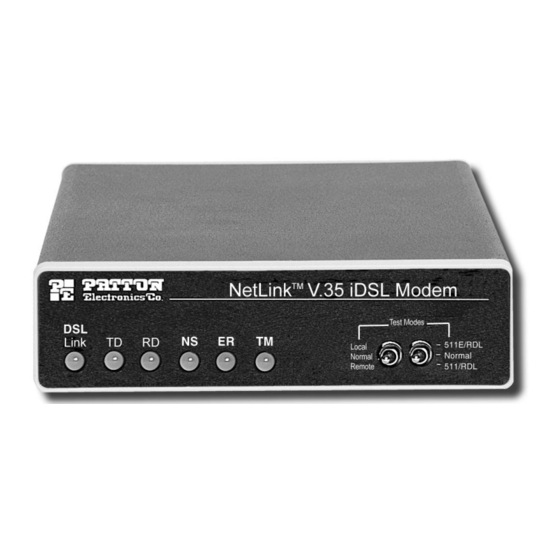

Patton electronics NetLink 1082/144 User Manual

Idsl modem with v.35 or x.21 interface
Hide thumbs Also See for NetLink 1082/144:
Table of Contents

Advertisement

Quick Links

Download this manual
Part# 07M1082-UM
Doc# 03315U2-001
Rev. C
Revised 11/2/06
C E R T I F I E D
An ISO-9001
Certified
Company
USER
MANUAL
MODEL 1082 and
1082/144
iDSL Modem with
V.35 or X.21 Interface
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetLink 1082/144 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patton electronics NetLink 1082/144

Summary of Contents for Patton electronics NetLink 1082/144

  • Page 1 USER MANUAL MODEL 1082 and 1082/144 iDSL Modem with V.35 or X.21 Interface Part# 07M1082-UM SALES OFFICE Doc# 03315U2-001 (301) 975-1000 Rev. C TECHNICAL SUPPORT Revised 11/2/06 (301) 975-1007 C E R T I F I E D An ISO-9001 Certified...
