45
1

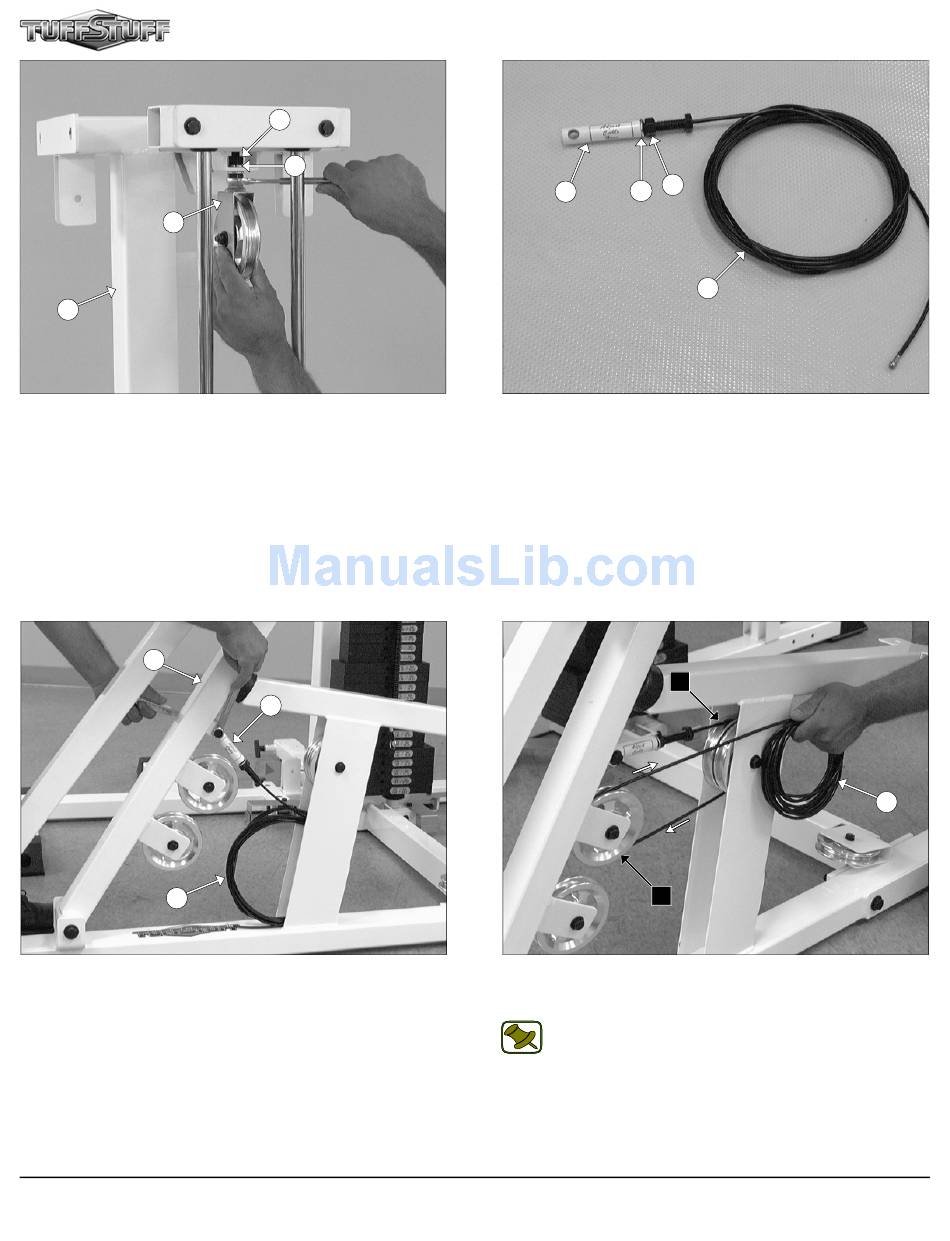

FIG. 7
Next, attach the assembled Adjustable Pulley Bracket
(#45) to the receptacle of the Weight Stack Frame (#1) using one Split
Lock Washer 1/2" (#176) and one Finished Hex Nut 1/2-13 (#89).
52
55
FIG. 9
Next, attach the Swivel Cable End (#56) to the Fulcrum
with Brackets (#52) using one Hex Head Cap Screw 3/8-16 X 1 3/4
(#101), two Flat Washers SAE 3/8" (#94), one Nylon Insert Jam Lock
Nut 3/8-16 (#123).
3
89
176
56
90
176
56
FIG. 8
Thread one Finished Hex Jam Nut 1/2-13 (#90) and insert
one Split Lock Washer 1/2" (#176) onto the Screw of the Leg Press
Cable (#55). Next, Locate the Swivel Cable End (#56) and thread it to
the bolt of the Leg Press Cable (#55).
D1
D2
FIG. 10
Route the Leg Press Cable (#55) around the Pulley 4 1/2
Rd. (#78-Labeled D1). Next, route under then up the Pulley 4 1/2 Rd.
(#78-Labeled D2).
Note: Refer to the Cable Mapping Diagram on fold-out page 6for
further detailed illustration of the Leg Press Cable (#55) routing.
55
55
Leg Press Station
