TuffStuff CPL-400 Owner's Manual

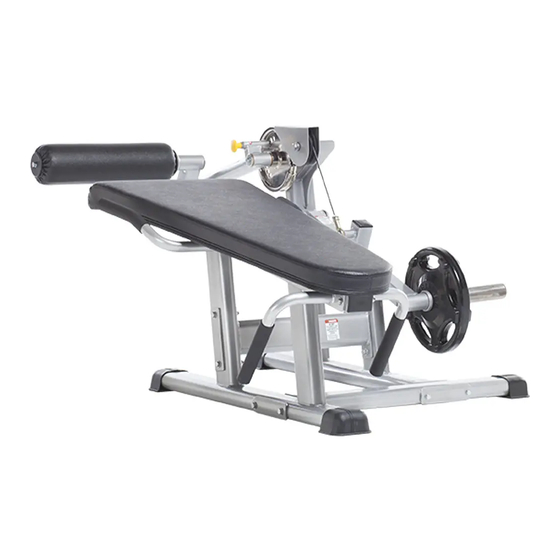

Plate load leg extension/prone leg curl bench
Hide thumbs
Table of Contents

Advertisement

Quick Links

NOTICE
It is the Purchaser's/Owner's obligation:
1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels affixed on the machine to their customers/users.
2. Equipment to be installed by TFI Authorized Dealer or a service company
approved by TFI.
3. Provide trained personnel, supervision and correct usage of the equipment.
4. Provide scheduled inspection, maintenance & repairs and must be performed
by TFI Authorized Dealer or a service company approved by TFI.
5. Must use only genuine TuffStuff replacement parts.

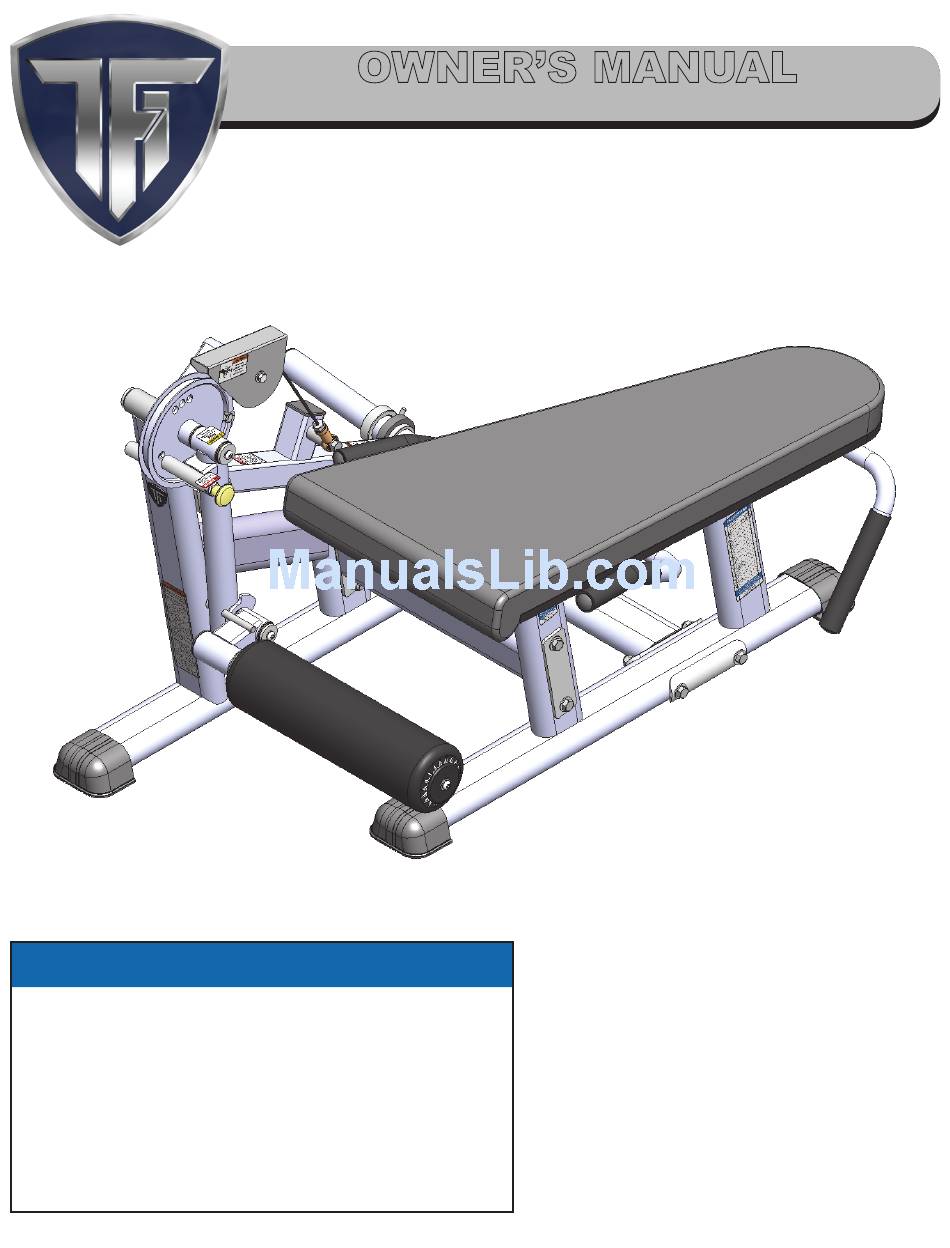

TUFFSTUFF FITNESS INTERNATIONAL
OWNER'S MANUAL
Maintenance & Assembly Instructions
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
CPL-400
Plate Load Leg Extension/
Prone Leg Curl Bench
CPL-400_Rev0
Revision Date 05-15-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPL-400 and is the answer not in the manual?

Questions and answers

Related Manuals for TuffStuff CPL-400

Summary of Contents for TuffStuff CPL-400

  • Page 1 3. Provide trained personnel, supervision and correct usage of the equipment. 4. Provide scheduled inspection, maintenance & repairs and must be performed by TFI Authorized Dealer or a service company approved by TFI. 5. Must use only genuine TuffStuff replacement parts. CPL-400_Rev0 Revision Date 05-15-2014...

  • Page 2: Table Of Contents

    Should additional information be required, or should situations arise that are not covered by this owner’s manual, the matter should be directed to Customer Service at TuffStuff Fitness International, Inc. in Chino, California.

  • Page 3: Overhead Specifications

    Overhead Specifications L 55” X W 45” X H 32” CPL-400 WEIGHT: 155 lbs MAX-LOAD WEIGHT LIMIT - 400 lbs W/USER www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 4 Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 5 Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 6 You should have received it along with this Owners Manual� If you did not receive this Sign with your order, you can obtain one at no cost to you from TuffStuff Fitness by contacting our service department at: 1 (888) 884-8275 service@tuffstuff�net...

  • Page 7: Important Safety Instructions

    Stop exercising if you feel faint or dizzy. Consult a physician if you 10. Use only genuine TuffStuff replacement parts. Failure to do so will are experiencing pain. void warranty and could result in serious injury or death to the users.

  • Page 8: Registration, Service & Assembly

    Registration, Service & Assembly Thank you for purchasing the CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench. This machine is part of the TuffStuff line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly.

  • Page 9: Inspection/Maintenance

    Professional Service Company approved by TFI. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded from our website www.tuffstuffitness.com INSPECTION / MAINTENANCE RECORDS DATE REPLACEMENT REPAIRS INSPECTED BY WARRANTY REPAIRS DATE REPLACEMENT REPAIRS INSPECTED BY www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 10: Cable Inspection

    CABLE END SLIPPING OUT IMPORTANT NOTE: DAMAGED OR WORNED CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S)� YOU MUST INSPECT THE PULLEYS AT THIS TIME FOR WEAR AND TEAR� REPLACE IF NEEDED� www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 11 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 5 1/4 may need pre-assembly and or alignment during the assembly process. NYLON INSERT LOCK NUT Z/P 1/2-13 FLAT WASHER SAE Z/P 1/2" BECH FRAME ASSEMBLY www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 12: Assembly Steps

    Loosely Tighten Loosely tighten all hardware in this step. DO NOT Fully Tighten. Some component(s) may need pre-assembly and or alignment during the assembly process. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 13 FLAT WASHER SAE Z/P 3/8" LEFT SIDE UPPER HANDLE ASSEMBLY RIGHT SIDE UPPER HANDLE ASSEMBLY LEFT SIDE LOWER HANDLE ASSEMBLY RIGHT SIDE LOWER HANDLE ASSEMBLY Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 14 ALUMINUM WASHER .390 ID X 1.500 OD X .150 THK BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 SPLIT LOCK WASHER Z/P 3/8" WEIGHT HOLDER ASSEMBLY Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 15 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 2 Wrench tighten all hardware in this step. SPLIT LOCK WASHER Z/P 1/2" ROD END 1/2-13 SPLIT BOLT GR-8 Z/P 1/2-13 X 1 (RND CUT) www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 16 ALUMINUM WASHER .390 ID X 1.500 OD X .150 THK BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 SPLIT LOCK WASHER Z/P 3/8" SWIVEL FOOT ROLL TUBE ASSEMBLY Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 17 BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 FLAT WASHER SAE Z/P 3/8" SPLIT LOCK WASHER Z/P 3/8" Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 18 Step 14 Fully Tighten 100% Proceed to inspect; align and wrench tighten ALL hardware assemblies specially those left loosely fasten, making sure the unit is assembled square and perpendicular. www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 19: Parts List

    Parts List COLOR CHART CPL-400 *BLACK BOLD = PRE-ASSEMBLED COMPONENTS Parts List BLACK BOLD = SUBASSEMBLY COMPONENTS REV0 BLACK = HARDWARE ITEM DESCRIPTION REV. PART NO. QTY. ITEM DESCRIPTION REV. PART NO. QTY. BECH FRAME UP8365 36 LABEL-DANGER CHECK RETAINING NUT... 1.5 X 1...

  • Page 20: Pre-Assembled Components

    Pre-Assembled Components www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...
  • Page 21 Pre-Assembled Components www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 22: Pre-Assembled Components

    Pre-Assembled Components www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 23: Notes

    Notes N o t e s www.tuffstuffitness.com CPL-400 Plate Load Leg Extension/Prone Leg Curl Bench...

  • Page 24: Warranty

    No modification of this warranty or waiver of its terms shall be binding on either party unless approved in writing by an authorized repre- sentative of the party. Contact TuffStuff Fitness International at 13971 Norton Avenue, Chino, CA 91710, before returning any defective equipment.
