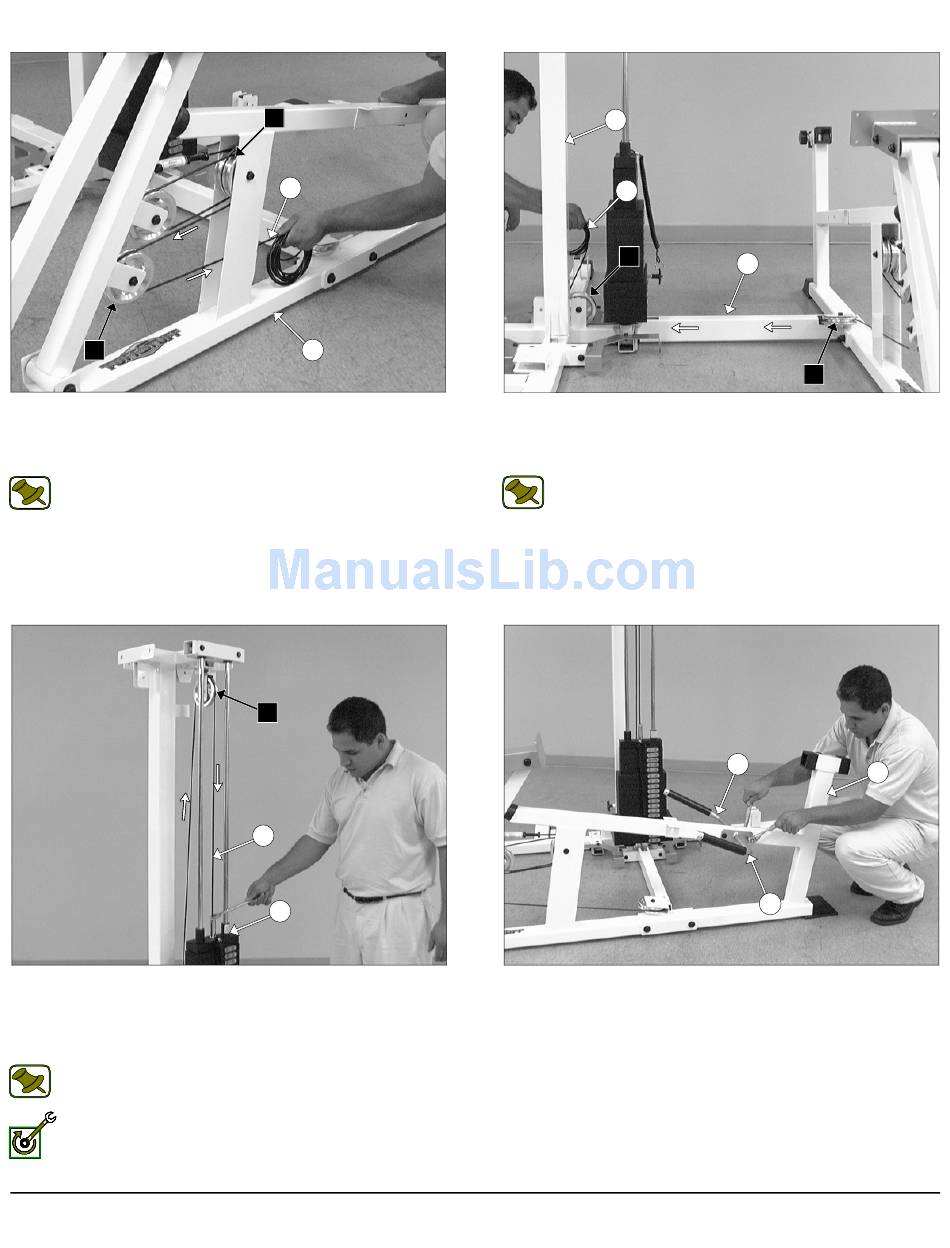

FIG. 11 Next, route the Leg Press Cable (#55) around the Pulley 4
1/2 Rd. (#78-Labeled D3). Next, route around the Pulley 4 1/2 Rd.
(#78-Labeled D4). Continue to route through the opening of the Leg
Press Main Frame (#47).
Note: Refer to the Cable Mapping Diagram on fold-out page 6
for further detailed illustration of the Leg Press Cable (#55)
routing.
FIG. 13 Continue to route up and over the Pulley 4 1/2 Rd. (#78-
Labeled D7).
Next, attach the Leg Press Cable (#55) to the Top Plate/Selector Bar
(#72) using one Split Bolt 1/2-13 X 1 (#171), and one Split Lock Washer
(#176).
Note: Refer to Fig. B on fold-out page 6 for further clarification
of this hardware assembly.
Fully Fasten: Proceed fully fasten this hardware assembly.
Leg Press Station
D3
55
47
D7
55
72
1
55
D6
FIG. 12 Route the Leg Press Cable (#55) around the Pulley 4 1/2
Rd. (#78-Labeled D5), and then through the tube of the Leg Press Bot-
tom Connector (#46). Next, route under the Pulley 4 1/2 Rd. (#78-
Labeled D6).
Note: Refer to the Cable Mapping Diagram on fold-out page 6
for further detailed illustration of the Leg Press Cable (#55)
routing.
FIG. 14 Attach the Right Handle (#31) and the Left Handle (#32) to
the Leg Press Main Frame (#47), in the position as shown above,
using two Hex Head Cap Screws 3/8-16 X 3 1/4 (#105), four Flat
Washers SAE 3/8" (#94), and two Nylon Insert Lock Nuts 3/8-16
(#125).
