Patton electronics Model 1065 User Manual

Industrial synchronous & asynchronous short range modem

Advertisement

Quick Links

Industrial Synchronous &
Asynchronous Short
Range Modem
Part# 07M1065-A
Doc# 058041UA
Revised 08/11/99
An ISO-9001
Certified
Company
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
http://www.patton.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model 1065 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Patton electronics Model 1065

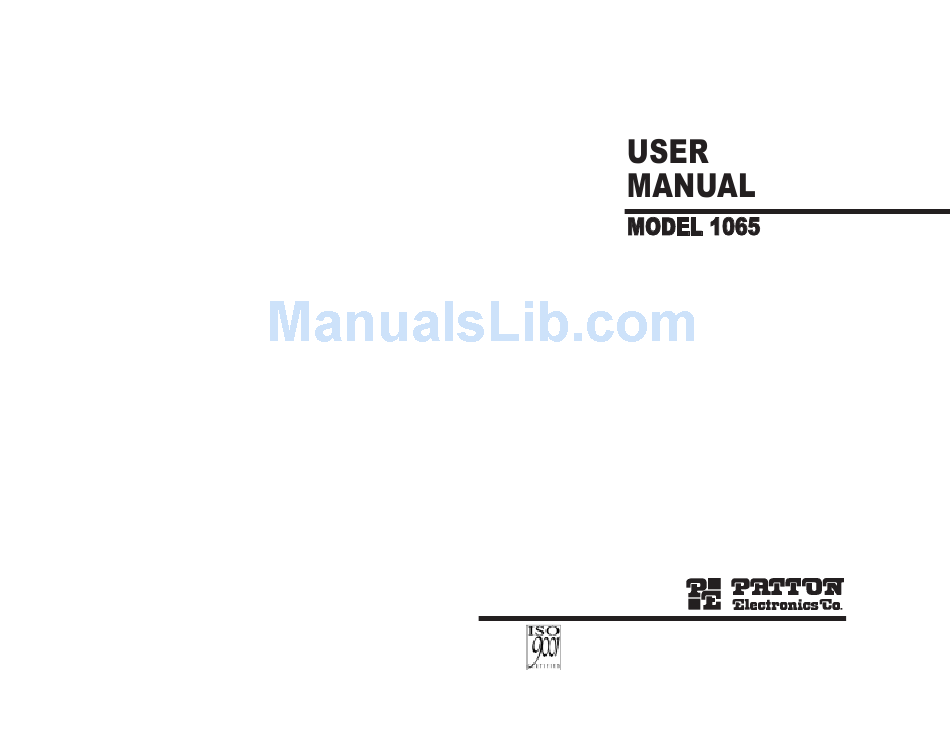

  • Page 1 Industrial Synchronous & Asynchronous Short Range Modem SALES OFFICE Part# 07M1065-A Doc# 058041UA (301) 975-1000 Revised 08/11/99 TECHNICAL SUPPORT (301) 975-1007 An ISO-9001 http://www.patton.com Certified Company...
  • Page 2: Warranty Information

    If the Model 1065 does cause interference to radio or television reception, which can be determined by disconnecting the...
  • Page 3: General Information

    (half duplex) or 4-wire (full or half duplex), in synchronous or asyn- chronous modes, over unconditioned telephone lines. The Model 1065 supports bit rates up to 64.0 kbps. The Model 1065 operates in syn- chronous mode between the local and remote modems; when connect- ed to an asynchronous RS-232 device, the Model 1065 SRM converts the asynchronous data to synchronous data.
  • Page 4: Configuration Switch Set "S1"

    The Model 1065 SRM has three sets of eight switches, yielding 24 total DIP switches. The three sets will be referred to as S1, S2 and S3. As Figure 2 shows, the orientation of all DIP switches is the same with respect to “ON”...
  • Page 5: Configuration Switch Set "S2"

    11 bits Switch S2-3: Extended Signaling Rate Model 1065 Series “looks for” in asynchronous data rates (i.e., the actual variance from a given frequency level the Model 1065 Series will tolerate). Switches S2-4 and S2-5: RTS/CTS Delay amount of delay between the time the unit “sees” RTS and when it sends CTS.
  • Page 6: Configuration Switch Set "S3"

    3.4 CONFIGURATION SWITCH SET “S3” The DIP switches on S3 set the anti-stream control, local loopback enable, remote loopback enable and receive (input) impedance levels for the Model 1065. Factory default positions of Switch S3 are shown in the table below. S3 SUMMARY TABLE...
  • Page 7: Two-Wire Installation

    Both types yield favorable results. The Model 1065 offers an RJ-45 jack for its twisted pair line con- nection. Figure 4 (below) shows the location of these interfaces on the rear panel of the Model 1065 Series. Connect the wire to each Model 1065 Series as described in the instructions that follow the illustration.
  • Page 8 4.1.1 Two-Wire Cable Connection Via RJ-45 A. The RJ-45 jack on a Model 1065 Series Short Range Modem is prewired for a standard TELCO wiring environment. To be sure you have the right wiring, use the table below as a guide.
  • Page 9: Four-Wire, Multipoint Installation

    4.3 FOUR-WIRE, MULTIPOINT INSTALLATION Multipoint operation involves the connection of several terminals to one host port. In such an application, one local Model 1065 is used as a master unit, and it is connected to several remote Model 1065s that are acting as slaves.
  • Page 10: Operation

    5.1 LED STATUS MONITORS The Model 1065 Series features seven front panel status LEDs that indicate the condition of the modem and communication link. Figure 5 shows the front panel location of each LED. Following Figure 6 is a description of each LED's function.
  • Page 11: Test Modes

    5.3 POWER-UP Apply AC power to the Model 1065 by plugging the separate AC power cable first into the rear panel of the Model 1065 and then into an acceptable AC power outlet. The remote/normal/loopback switch should be set to “normal”. When the local and remote Model 1065 are...
  • Page 12 5.5 POWER-DOWN Turn off the Model 1065 Series by simply unplugging the AC power cord from the wall. There is no power switch. APPENDIX A PATTON ELECTRONIICS MODEL 1065 SPECIFICATIONS Transmission Format: Synchronous or asynchronous, 2- wire/half duplex, or 4-wire/full or half...
  • Page 13: Parts And Accessories

    APPENDIX B PATTON ELECTRONICS MODEL 1065 FACTORY REPLACEMENT PARTS AND ACCESSORIES Patton Model # Description 0805FR...France/Belgium Power Cord 07M1065 ...Model 1065 Series User Manual APPENDIX C PATTON ELECTRONICS MODEL 1065 CABLE RECOMMENDATIONS All Patton Electronics Company Short Range Modems are tested to the...
