Topcom IP100 User Manual page 26

Topcom IP100
Configure use .cfg extension.
The Type includes two parts of config file export and config file import
Config file export:export the config file
Config file import:import the config file.

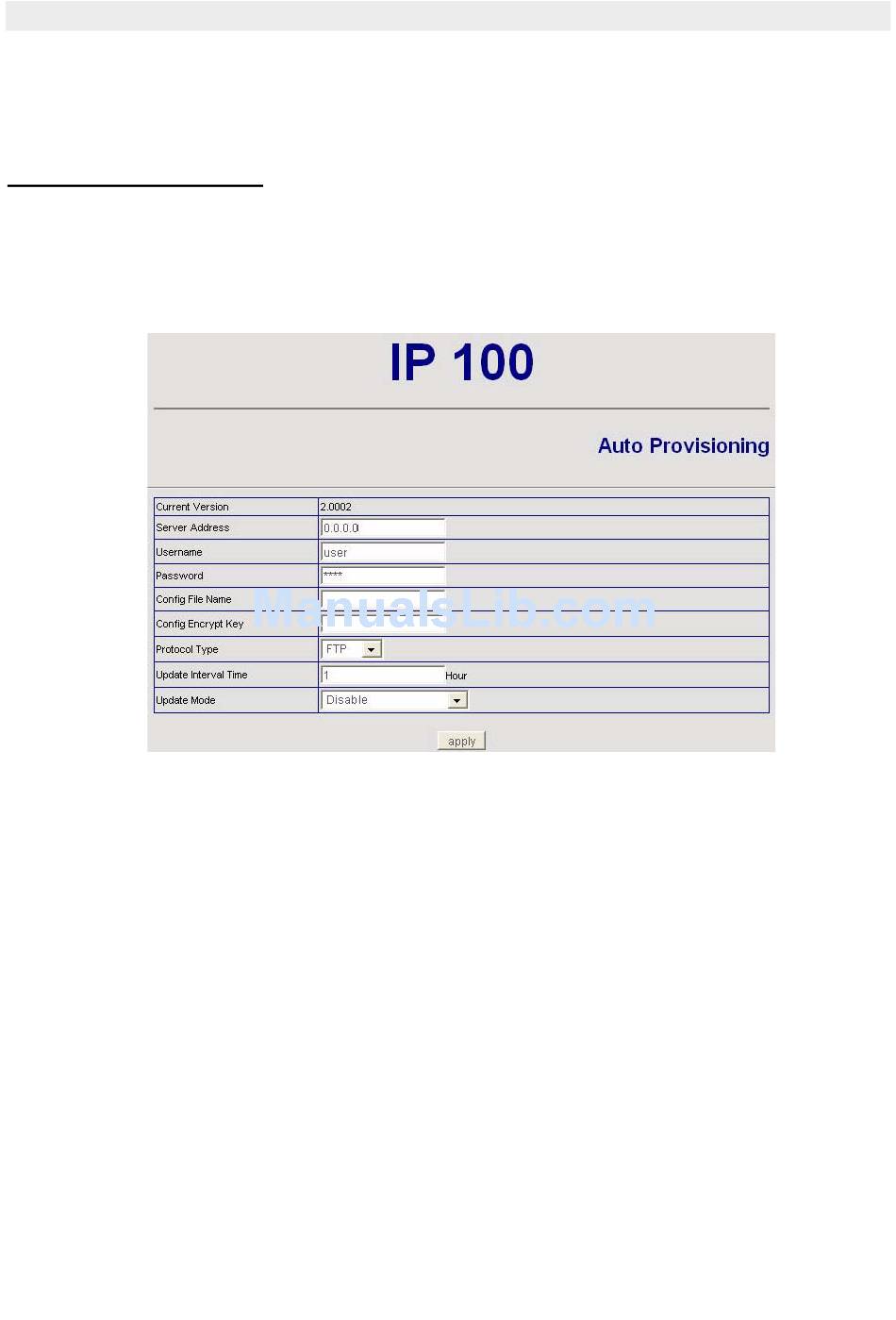

6.7.3 Auto Provisioning:
IP100 IP phone support FTP and TFTP auto update. The gateway will auto obtain the
configure file from your update server if configured. To obtain the original configure file, you
can use the FTP/TFTP back up as describe above. Configure file using module structure,
user may remain the concerned modules and remove other modules. Put the configure file
in the root directory of update serve when finish editing.
Current Version: the system will display the current version number °£
Server Address: FTP/TFTP server address
Username: FTP server user name
Password: FTP server password
Config File Name: The name of configuration file
Config Encrypt Key: The encrypt key of confirmation file
Protocol Type: The protocol type that used for upgrading
Update Interval Time: The interval time that the terminals search for new configuration file.
Update Mode: auto provision mode; Disable: not auto update£¨Update after reboot:auto
update after reboot£¨Update at time interval:auto update after a certain time
Configure file version was in the <<VOIP CONFIG FILE>> and <GLOBLE CONFIG
MODULE> ConfFile Version
For instance:
Gateway original version is:
<<VOIP CONFIG FILE>>Version:1.0000
<GLOBLE CONFIG MODULE> ConfFile Version:6
User may edit the configure file version to:
<<VOIP CONFIG FILE>>Version:1.0007
<GLOBLE CONFIG MODULE> ConfFile Version:7
24 Topcom IP100
