Topcom IP100

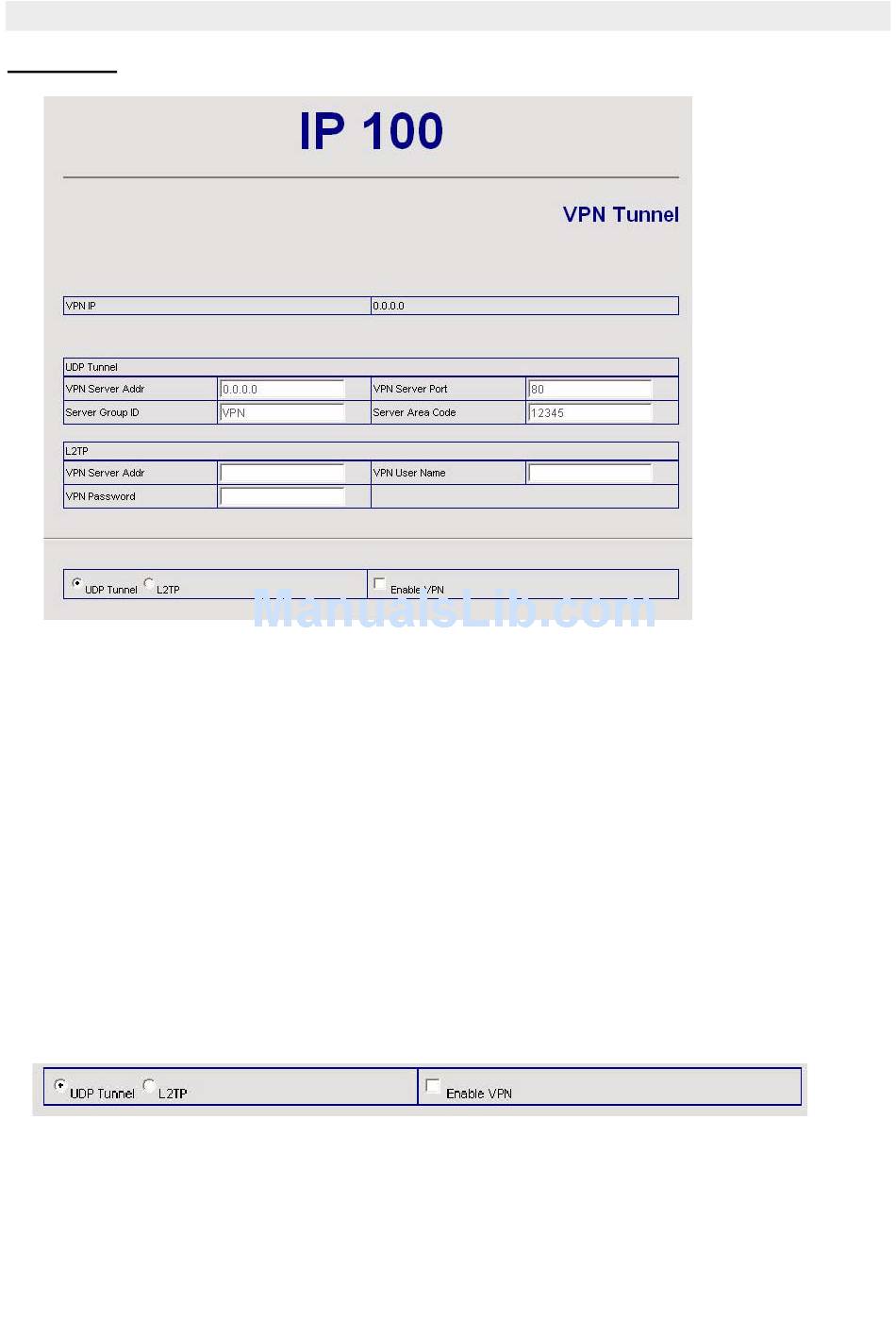

6.5.11 VPN
This page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol
.The parameters is as below
VPN IP:After VPN registered successfully, VPN server will give an IP aggress to the terminal
. If there is a IP address shown on terminal (except for 0.0.0.0) ,it means your VPN has
registered
UDP Tunnel
VPN Server Addr: register to the address of VPN server °£
VPN Server Port: Register to the port of VPN server
Server Group ID: the group ID of UDP VPN
Server Area Code: the are code of VPN server
L2TP
VPN Server Addr: register to the address of VPN server
VPN User Name: L2TP VPN username
VPN Password: L2TP VPN password
UDPTunnel: use the UDP to visit VPN
L2TP: use the L2TP to visit VPN
Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in advance
