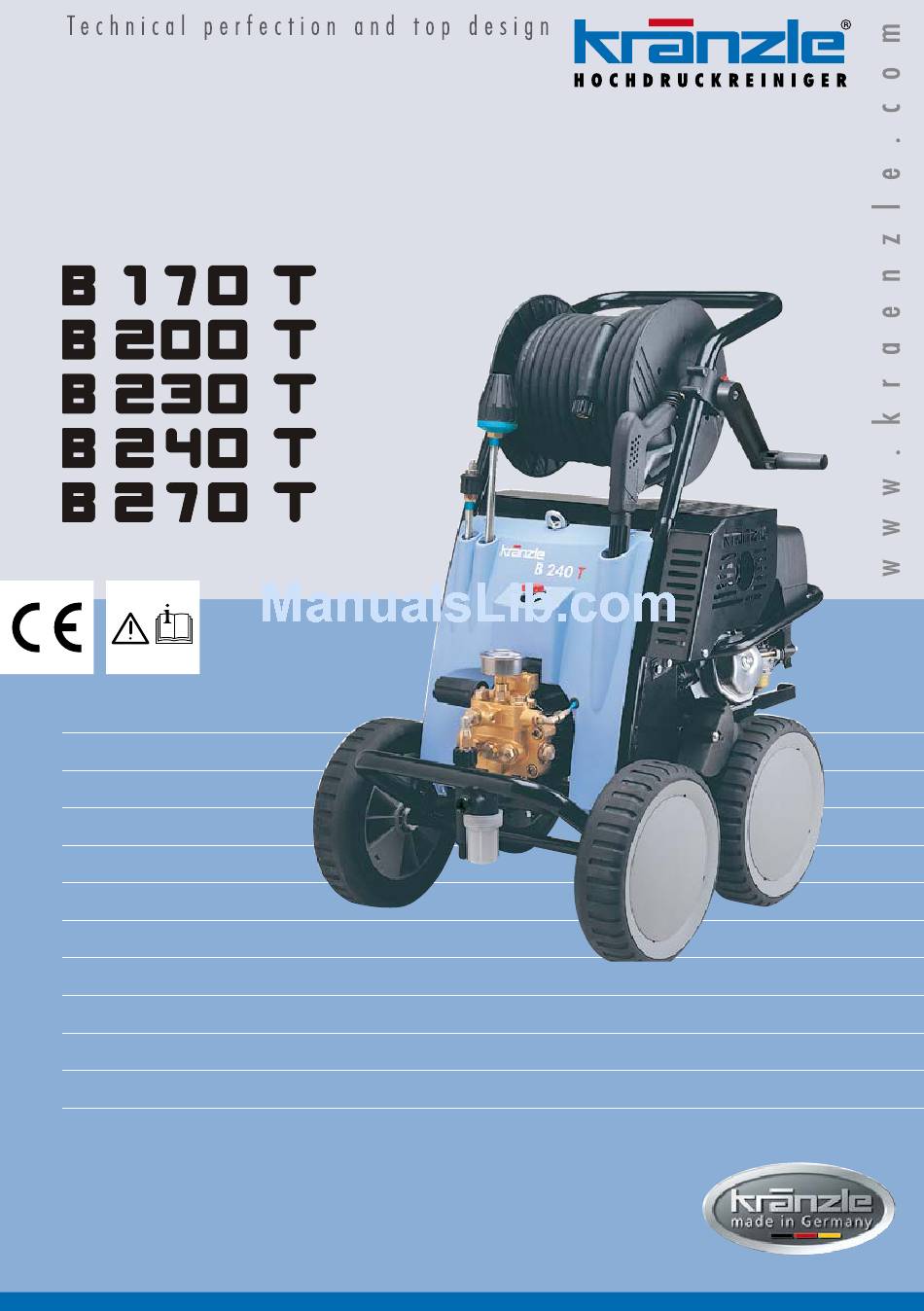

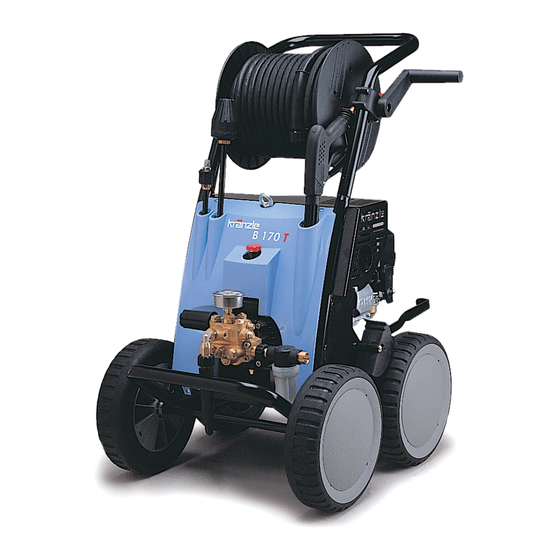

- Page 1 Operating manual H i g h - p r e s s u r e c l e a n e r s Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user.
-
Page 2: Dear Customer
Description Dear customer We would like to congratulate you on your new mobile high pressure cleaner and to thank you for the purchase. To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using for the first time. - Page 3 Description Water Construction The KRÄNZLE B170 T + B200 T + B230 T+ B240 T + B270 T - high pressure cleaners are mobile machines. The design can be seen from the diagram. Item 5 Unloader valve - safety valve 1 Water inlet connection with filter 2 Suction hose with filter (special 6 High pressure hose...
- Page 4 Description Water and Cleaning / Pflegemittel System Water can be connected at mains pressure to the high pressure pump or it can be sucked directly from a storage tank. The water is then forced under pressu- re by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.
-
Page 5: Setting Up: Location
Description For the motor follow the Honda operating manual only. Motor-safety: (see Honda operating manual) Honda motors are safe and reliable if they are operated correctly. Read the opera- ting manual carefully before using the motor and try to understand the contents of the manual completely. -
Page 6: Water Connection
Description Water connection: Please check that the high pressure cleaner has available the quantity of water specified on page 2 (techn. specs.) (Litres per minute). Test: Allow the water supply hose to run for 1 minute into a bucket. The received quantity of water must be at least the quantity given on page 2 !!! Lack of water causes fast wear on seals (no warranty) Brake The high-pressure cleaner is fitted with a brake that prevents the machine from... -
Page 7: High Pressure Hose And Spray Device
Description Brief operating instructions 1. Connect the high pressure hose with spray gun and machine. 2. Connect the suitable water supply. 3. Flush the air from the pump (open and close the spray gun several times). 4. Switch on the motor while the spray gun is open and commence cleaning. -
Page 8: Safety Notes
Safety notes As to the recoil - see notice on page 2! Apply the safety catch on the spray gun after each use, in order to pre- vent unintentional spraying! Always aim the underbody lance. Note when using an angled underbody lance, like for example lance No. -
Page 9: This Is What You've Purchased
This is what you’ve purchased: 1. Spray gun with insulated pistol grip and screw con- nection 2. Spray lance with high pressure nozzle, flat spray 3. Turbokiller 4. KRÄNZLE - high-pressure cleaners B 170 T B 200 T B 240 T B 270 T B 230 T incl. -
Page 10: Preparation For Use
Preparation for use 1. Check oil level ( Pump and motor) 2. Connect high pressure lance or Turbokiller to the spray gun. 3. Unroll hose without kinks and con- nect with handgun and pump. Use HP hose of max. 20 m length. High pressure hose connected to machine and spray gun. -
Page 11: To Shut Down The Pump
Preparation for use 4. The machine can be connected to a pressurised water line with cold or up to 70 °C hot water (see page 2). Ensure that the water supply ist clean when sucking from external sources. The hose cross section must be at least 1/2“... - Page 12 This is prohibited ! Never allow children to use the high pressure cleaner ! Never direct the water jet at the machi- ne itself !
- Page 13 This is prohibited ! Never direct the water jet at people or animals Never pull the high pres- sure hose if it has for- med kinks or “nooses”! Never pull the hose over sharp edges !
- Page 14 Additional KRÄNZLE-accessories for ... Rotary scrubbing brush Order No. 41.050 1 Drain and pipe cleaning hose 8 m - Order No. 41.051 15 m - Order No. 41.058 Underbody lance Order No. 41.075 Sandblaster Order No. 41.068 1 Flat brush Order No.41.073 Environmental, refuse disposal and water protection regu- lations must be observed when using the accessories!
- Page 15 ... further combination possibilities Car cleaning, glass, caravan, boat etc. rotary washing brush with 40 cm exten- sion and ST 30 nipple M 22 x 1,5 Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M 22 x 1,5 Underbody cleaning of cars, trailers and equipment: lance 90 cm with high pressure nozzle and ST 30 nipple M 22 x 1,5.
-
Page 16: Small Repairs
Small repairs - Nozzle dirty or sticky! Pressure gauge does not show full pressure. The high-pressure Water comes out in spurts. hose vibrates. If you do not use the high-pressure cleaner for some time the valves can stick When a valve is blocked, the gauge or the high shows little... -
Page 17: Do-It-Yourself
- Do it yourself! The nozzle is blocked! No water but the gauge shows full pressure ! but if you You should now have a Rinse the hose through only get a few powerful stream first. drops from the lance water, Using the flat spray lance you remove the lance and clean... - Page 18 Small repairs - Do it yourself! Stopping leaks from hose or gun After closing the gun the manometer shows full pressure ! The pressure regulator switches on and off continuously! If the First dis- manometer connect the shows full hose! pressure, Press the trigger to release the...
-
Page 19: General Rules
General rules Inspections: The machine must be inspected according to the „Guidelines for Liquid Spray De- vices“ at least once every 12 months by a qualified person, to ensure that continu- ed safe operation is guaranteed. The results of the inspection are to be recorded in writing. -
Page 20: Complete Assembly
Complete assembly... - Page 21 Kränzle B170 T / B200 T...
-
Page 22: Transmission Unit
Transmission unit... - Page 23 KRÄNZLE B170 T / B200 T Spare parts list Kränzle B170 T / B200 T Transmission Description Qty. Ord.-No Getriebegehäuse 41.481 1 Gehäuseplatte 18 mm 41.020 2 Axial-Rillenkugellager 3-teilig 43.486 Öldichtung 18 x 28 x 7 41.031 Plunger 18 mm 41.032 1 Plungerfeder 41.033...
-
Page 24: Valve Housing
Valve housing... - Page 25 Kränzle B170 T / B200 T Spare parts list Kränzle B170 T / B200 T Valve housing APG for 18 mm plunger diameter Description Qty. Ord.-No Ventilgehäuse APG 42.160 3 für 18 mm Plunger-Durchmesser Ventilstopfen 41.714 Ventilstopfen mit R1/4“ IG 42.026 1 Dichtstopfen M 10 x 1 43.043...
- Page 26 Unloader...
- Page 27 Kränzle B170 T / B200 T Spare parts list Kränzle B170 T / B200 T Unloader Description Qty. Ord.-No O-Ring 16 x 2 13.150 O-Ring 13,94 x 2,62 42.167 O-Ring 11 x 1,44 12.256 Edelstahlsitz 14.118 Sicherungsring 13.147 Edelstahlkugel 13.148 Edelstahlfeder 14.119 Verschlussschraube...
- Page 28 Complete assembly...
- Page 29 KRÄNZLE B230 T - B240 T - B270 T...
- Page 30 Transmission unit...
- Page 31 KRÄNZLE B230 T - B240 T - B270 T...
- Page 32 Valve housing...
- Page 33 KRÄNZLE B230 T - B240 T - B270 T...
-
Page 34: Unloader Valve
Unloader valve... - Page 35 KRÄNZLE B230T / B240T / B270T...
- Page 36 Hose drum...
- Page 37 KRÄNZLE B 170 - 270 T...
-
Page 38: Speed Control
Speed control Spare parts list Kränzle B230 T / B240 T / B270 T Speed control Description Qty. Ord.-No Grundteil 42.581 Druckhülse 42.584 Steuerkolben 42.582 Querbolzen 42.583 Druckfeder 2,0 x 9,5 x 70 42.587 Gewindestift M4 x 6 DIN 913 43.469 Parbaks 7 mm 15.013... - Page 39 Standard regulation nozzle Pos. Bezeichnung Stck Best.Nr. Nippel ST30 M22x1,5 AG / M 12 x 1 13.363 Rohr 400 mm, bds. M 12 x 1 15.002 Regeldüse mit Regulierring 13.201 2 Flachstrahldüse 25045 bei B200 D 25 045 Flachstrahldüse 2505 bei B170/240 T/270 T D 25 05 Flachstrahldüse 2507 bei B230 T D 25 07...
- Page 40 Starlet II Spare parts list Kränzle Starlet II Description Qty. Ord.-No Ventilkörper mit Handgriff 12.294 Schutzhülse 12.295 Abdeckschutz 12.296 Abzugshebel grau 12.298 3 Sicherungshebel 12.149 Abschlussschraube M 16 x 1 12.247 Stopfen 12.287 Gewindeführungshülse 3mm R1/4“ AG 12.250 1 Aufsteuerbolzen abgesetzt 3mm 12.284 1 Stift 12.148...
- Page 41 M2000 - Gun Spare parts list M2000-Gun Description Qty. Ord.-No Pistolenschale re+li 12.450 Schraube 3,5 x 14 44.525 Reparatursatz M2000 12.454 O-Ring 9,3 x 2,4 13.273 Pistole M2000 12.480...
- Page 42 Turbokiller Spare parts list Turbokiller Description Qty. Ord.-No Sprühkörperschutz 41 528 Sprühkörper 41 529 O-Ring 6,86x178 41 521 Düsensitz 41 522 Düse 055 für B 170 T / 240 T / 270 T 41 532 Düse 045 für B 200 T 41 532 1 Düse 07 für B 230 T 41 532 2...
- Page 43 Guarantee Guarantee The guarantee is only valid for material and manufacturing errors. Wearing does not fall within this gurantee. The instructions in our operating manual must be complied with. The operating instructions form part of the guarantee. The Guarantee is void if other parts are used than genuine Kränzle accessory parts or genuine Kränzle spare parts.
- Page 44 Notes...
- Page 45 Notes...
-
Page 46: Inspection Report
Inspection report for KRÄNZLE - High Pressure Cleaners Regular inspection every 12 months if used professionally! Appliance No: Type: The following must be checked: 1. Safety features 2. General condition a) Manometer a) High pressure hose b) Safety valve (pressure control) b) Spray gun c) Motor c) Operating pressure... -
Page 47: Ec Declaration Of Conformity
High-pressure-cleaners Nettoyeurs à haute pression Hochdruckreiniger I. Kränzle GmbH Elpke 97 . 33605 Bielefeld EC declaration of conformity We hereby declare, Kränzle B 170,200,230,240,270 that the high-pressure models: Nominal flow B 170T; B 200T: 750 l/h B 240T; B 270T: 960 l/h B 230T: 1200 l/h (techn. - Page 48 I . K r ä n z l e G m b H E l p k e 9 7 D - 3 3 6 0 5 B i e l e f e l d Reprint only allowed with the authorization of As date of 04.29.2014...
