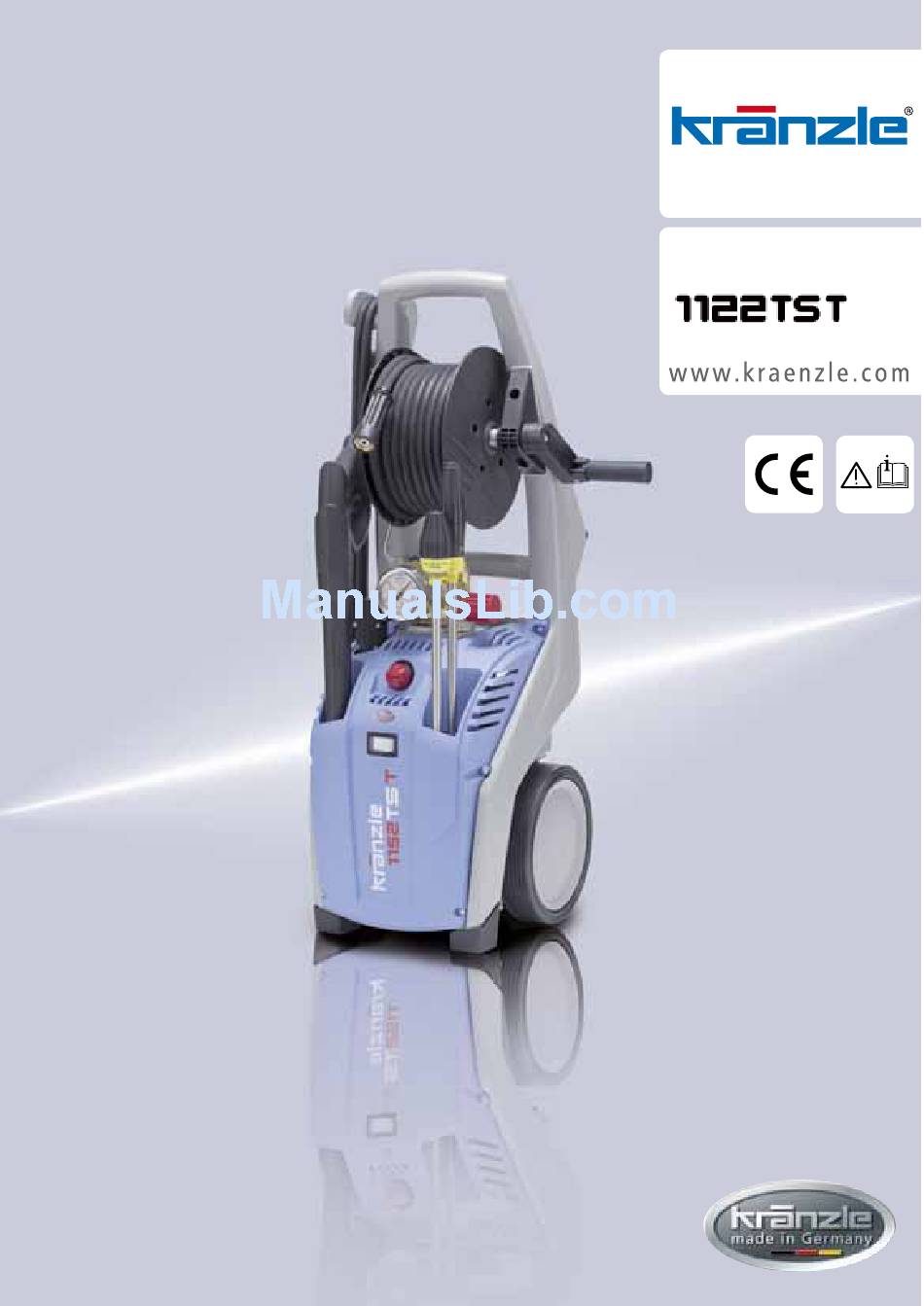

Operating manual
high-pressure cleaner
Read and conform safety instructions before use!
Keep instructions in a safe place for later use and
pass them on to any future user.
- GB -

Advertisement

Table of Contents
loading

Related Manuals for Kranzle 1122 TS T

Summary of Contents for Kranzle 1122 TS T

  • Page 1 Operating manual high-pressure cleaner Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user. - GB -...

  • Page 2: Description

    Description of high-pressure cleaner Kränzle 1122 TS T Ergonomically shaped handle Cable reel with 5 m cable Hose drum with 15 m steel-weave high-pressure hose Trigger gun with safety catch Detergent injector hose Special brass pump head Large stainless steel pressure gauge...

  • Page 3: Table Of Contents

    Page Contents Description ........................ 2 Contents ........................ 3 Technical data ........................ 4 Overview “This is what you have purchased” ..............5 General rules - accident prevention ................6 Safety precautions - accident prevention ..............7 Please note - important ....................10 Kränzle- technology ....................

  • Page 4: Technical Data

    Technical data Kränzle 1122 TS T Operating press. continuously adj. 30-95 bar / 3 - 9,5 MPa / 1400 psi Nozzle size Permissible overpressure 120 bar / 12 MPa / 1600 psi Water output bei 1.700 U/min 8.3 l/min / 2.1 Gpm...

  • Page 5: Overview "This Is What You Have Purchased

    This is what you have purchased Kränzle high-pressure cleaner 1122 TS T with 15 m steel-weave high- pressure hose and hose drum Trigger gun with insulated handle and screw connection Dirtkiller lance with stainless steel pipe Vario-Jet lance with stainless steel pipe...

  • Page 6: General Rules - Accident Prevention

    General rules Range of application Use machines for cleaning tasks with high-pressure water jet and detergents or with high-pressure water jet without detergents only. Inspections The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guaranteed.

  • Page 7: Safety Precautions - Accident Prevention

    Safety precautions Bear in mind that during cleaning tasks with a high-pressure water jet a significant recoil at the lance arises. Please stand firmly. Apply safety catch on the trigger gun after each use, in order to prevent unintentional spraying! Always aim the underbody lance! Bear in mind when using a curved or angled spraying lance that there is a significant...
  • Page 8 Safety precautions – This is prohibited! Never direct the water jet at people or animals! Never direct the high-pressure jet at yourself or other persons, not even to clean clothing or shoes. Only use power cables which are in perfect working order! Do not damage the power cable or repair it incorrectly! Never pull the high pressure hose if...
  • Page 9 Never allow children or untrained per- sons to use the high pressure cleaner! Never direct the water jet at the machine itself! The machine may not be placed within reach of the water jet spray mist! Never direct the water jet at power sockets or any other electrical installa- tions!

  • Page 10: Please Note - Important

    A minimum water quantity of 8.3 litres per minute (2.1 Gpm) must be available to guarantee a trouble-free operation of the Kränzle 1122 TS T. If the metered quantity of water is too small, you have to use a different water connection, guaranteeing the necessary output.

  • Page 11: Electrical Connection

    Insufficient quantity of electricity If there are too many collectors in your proximity connected to the network at the same time, the available voltage and the current intensity may decline. Consequently the motor of the high-pres- sure cleaner does not start or even blows. The power supply may also be insufficient if the power cable is too long or too thin.

  • Page 12: Kränzle Technology

    Total stop system Kränzle 1122 TS T high-pressure cleaners are equipped with a total stop system. If the main switch is switched on the motor is started by a pressure switch, as soon as the trig- ger gun with safety catch is operated.

  • Page 13: High Pressure Hose And Spray Device

    Motor protection switch The motor is protected from overload by a motor protection switch, which cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page 40). Replacements and inspection work should only be performed by qualified persons when the machine is disconnected from the power supply, i.e.

  • Page 14: Putting Into Operation

    Do not use the machine under water. K 1122 TS T: Put up machine. Release fixing screw from hexagonal base of hose drum, put tiltable handle onto the hexago- nal base and fix with screw.
  • Page 15 Putting into operation Screw together lance and trigger gun pressure-tightly. Unwind high-pressure hose straight and without nooses. (When using hose extensions take care that the max. length of 20 m is not exceeded!) Push on high-pressure hose to trigger gun with safety catch. Tightly screw together high-pressure hose and trigger gun with safety catch.
  • Page 16 60° C raised temperatures occur. Do not touch the metal parts of the cleaner without safety gloves! Connect to circuit. Kränzle 1122 TS T: 110 - 127 V ~, 14 A, 60 Hz The socket must be protected with a 16A delay action fuse on the mains side.
  • Page 17 Steplessly adjust operating pressure with handwheel. The maximum pressure is adjusted ex work. Kränzle 1122 TS T: max. 95 bar Kränzle 1122 TS T high-pressure clea- ners are equipped with a practical holding device for trigger gun with Dirtkiller lance...

  • Page 18: Suction Of Detergents

    Suction of detergents When using cleansing agents Suction of cleansing agents by means of the detergent injector is only possible if the Vario Jet lance is fitted. The lance mus be set to low pressure. Please chemicals filter into container with cleansing agent.

  • Page 19: To Shut Down The Pump

    To shut down the pump Switch off the high-pressure cleaner 02. Cut off the water supply 03. Open the trigger gun with safety catch briefly until the pressure is released 4. Apply safety catch on the trigger gun 05. Remove water hose and trigger gun with safety catch 06.

  • Page 20: Small Repairs - Do It Yourself

    Small repairs - do it yourself! No water from the nozzle but the gauge shows full pressure: Most likely the nozzle is blocked. The pressure gauge shows full pressure, but emerges from the nozzle only little water or no water at all. (Inside the pressure gauge there is no water but a filling with glycol to damp the vibration of the pointer.)
  • Page 21 Pressure gauge shows little pressure, the water from the nozzle comes in squirts: Most likely the valves are soiled or sticky. The pressure gauge shows little pressure despite fully turned up pressure regulation. The water from the lance comes in squirts. The HP hose vibrates.
  • Page 22 Small repairs - do it yourself! The pressure gauge shows full pressure although the trigger gun with safety catch has been closed. The pressure switch valve switches constantly. Possible cause no.1: Leakage Having closed th trigger gun with safety catch, the HP cleaner must shut down and the pressure gauge must show „0“...
  • Page 23 The pressure gauge shows full pressure although the trigger gun with safety catch has been closed. The motor constantly swit- ches on and off. Possible cause no. 2: The non-return valve is soiled or defective. Proceeding: Switch off the HP cleaner and pull plug from socket.

  • Page 24: Ec Declaration Of Conformity

    EC declaration of conformity Hereby we declare that: Kränzle 1122 TST Manfred Bauer, Fa. Josef Kränzle technical specifications available from: Rudolf-Diesel-Str. 20, 89257 Illertissen Nominal flow K 1122 TST: 500 l/h comply with the following guidelines Machinery directive 2006/42/EC and their amendments for high-pressure EMC-directive 2004/108/EC cleaners: Noise directive 2005/88/EC, Art.

  • Page 25: Guarantee

    Guarantee The guarantee is only valid for material and manufacturing errors. Wearing does not fall within this gurantee. The instructions in our operating manual must be complied with. The operating instructions form part of the guarantee. For high-pressure cleaners sold to the user the guarantee period is 24 month. For high-pressure cleaners sold for industrial use the guarantee period is 12 month.

  • Page 26: Versatile Due To Kränzle Accessories

    Versatile due to Kränzle accessories Rotating washing brush with 400 mm extension, Order no. 41 050 1 Floor cleaner round cleaner UFO Order no. 41.850 Dirtkiller lance with stainless steel pipe 400 mm, Order no. 41.072 5...
  • Page 27 Pipe cleaning hose with nozzle, 10 m - order no. 41.058 1 15 m - order no. 41.058 20 m - order no. 41.058 2 25 m - order no. 41.058 3 30 m - order no. 41.058 4 Spray guard Order no.
  • Page 28 Ersatzteilliste...
  • Page 29 Kränzle 1122 TS T - Komplettaggregat Position Bezeichnung Stck. Art.-Nr. Fahrgestell 49.000 Frontplatte „ K 1122 TST“ Versteifungsplatte 49.008 Kunststoffschraube 6,0 x 30 43.423 Kabeltrompete 49.003 44.538 Radkappe 45.200 8 Scheibe 40 x 6 x 1,5 (Stahl) 45.216 7 Kunststoffsenkschraube 5,0 x 20 45.421 1...
  • Page 30 Ersatzteilliste...
  • Page 31 Kränzle 1122 TS T - Motor Position Bezeichnung Stck. Art.-Nr. Ölgehäuse mit Dichtung, Deckel Öldichtung, Schulterlager 44.501 3 Motorgehäuse mit Stator 23.002 4 Motorwelle mit Rotor 43.024 Passfeder 6 x 6 x 20 41.483 1 Motor-Lager B-Seite Z-Lager 43.025 Motor-Lager A-Seite Schulterl.
  • Page 32 Ersatzteilliste...
  • Page 33 Kränzle 1122 TS T - Getriebeteil Position Bezeichnung Stck. Art.-Nr. Gehäuseplatte 43.003 Öldichtung 14 x 24 x 7 41.631 O-Ring 83 x 2 43.039 Plungerfeder 43.040 Federdruckscheibe 14 mm 43.041 Plunger 14 mm AZ-L 49.021 Sprengring 14 mm 41.635 Taumelscheibe 9,25°...
  • Page 34 Ersatzteilliste...
  • Page 35 Kränzle 1122 TS T - Unloader + Druckschalter Position Bezeichnung Stck. Art.-Nr. O-Ring 12 x 2 15.005 1 O-Ring 11 x 1,5 12.256 Edelstahlsitz 14.118 Sicherungsring 12.258 Anlaufentlastungsventil 49.040 Edelstahlfeder 14.119 Verschlussschraube 14.113 Steuerkolben 6 mm für AZ mit Dichtungen 44.532...
  • Page 36 Ersatzteilliste...
  • Page 37 Kränzle 1122 TS T - Ventilgehäuse Position Bezeichnung Stck. Art.-Nr. Ventilgehäuse 49.020 Ventilstopfen 41.011 Ventilstopfen mit R1/4“ IG 41.011 1 Ventile (rot) 41.612 Dichtstopfen M 8 x 1 13.158 Dichtstopfen M 10 x 1 43.043 O-Ring 12 x 2 15.005 1 O-Ring 11 x 1,5 12.256...
  • Page 38 Ersatzteilliste...
  • Page 39 Kränzle 1122 TS T - Schlauchtrommel Position Bezeichnung Stck. Art.-Nr. Seitenschale 48.101 Trommelteil 48.102 Knickschutz 40.162 Kunststoffschraube 5,0 x 20 43.018 Antriebswelle 48.104 Lagerklotz links 43.810 Schraube 6,0 x 30 43.423 Lagerklotz rechts 43.811 Verbindungsrohr 49.014 Wasser-Eingangsteil 48.103 O-Ring 6 x 0,8 40.177...
  • Page 40 Ersatzteilliste...
  • Page 41 Kränzle 1122 TS T - Pistole und Lanze Position Bezeichnung Stck. Art.-Nr. Pistolenschale rechts + links 12.450 Schraube 3,5 x 14 44.525 Reparatursatz M2000 12.454 O-Ring 9,3 x 2,4 13.273 ST 30-Nippel M 22 x 1,5 AG / M 12 x 1 13.363...
  • Page 42 Ersatzteilliste Kränzle 1122 TS T Schmutzkiller (Sonderzubehör) Position Bezeichnung Stck. Art.-Nr. Sprühkörper 41.520 O-Ring 6,88 x 1,68 41.521 Düsensitz 41.522 Düse 042 41.523-042 Stabilisator 41.524 O-Ring 40.016 1 Sprühstopfen 41.526 Rohr 400 mm 2x M 12 x 1 41.527 ST 30-Nippel M 22 x 1,5 / M 12 x 1 ISK 13.363...
  • Page 43 Schaltplan Kränzle 1122 TS T C: 40 µF Klemmleiste Weber-Unimat WT 22 - 551 8,5 A Überstromauslöser Motor-Stator...

  • Page 44: Inspections - Inspection Reports

    Inspection report for HP cleaners HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no.
  • Page 45 Inspection report for HP cleaners HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no.
  • Page 46 Notes...
  • Page 47 Notes...
  • Page 48 Reprint only allowed with the authorisation of Kränzle. Effective 03.12.2012...
