Operating manual High-pressure cleaner bully 1000 TST bully 1200 TST Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list. Please be aware that the spare part list is part of the operating manual.
Contents Explanatory symbols Dear customer: Explanatory symbols used in the operating manual Failure to observe this note may entail We would like to congratulate you on the purchase of your new high-pressure environmental damage. cleaner and thank you for your confidence in our products! Note on the use of the high-pressure cleaner that failure to Your choice has fallen on an absolute quality product! adhere to the instructions may cause excessive wear or total...
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc.
Page 5
Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high-pressure jet at the high- Never direct the high-pressure jet at people or pressure cleaner itself! The high-pressure cleaner animals! Never direct the high-pressure jet at may not be placed within reach of the high- yourself or other persons, not even to clean pressure jet spray mist!

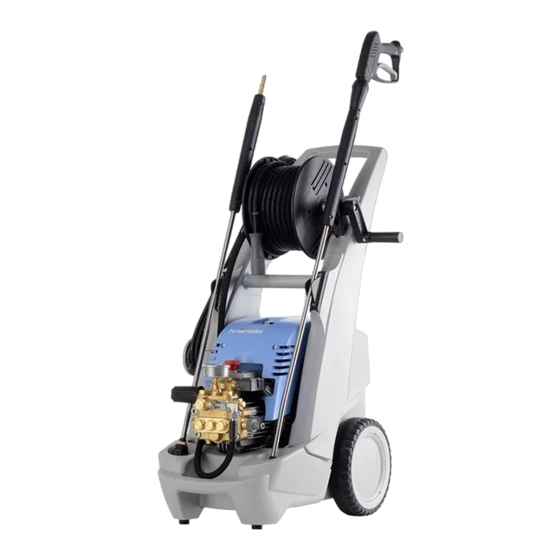

Design: bully-series with hose drum This is what you have purchased: bully-series with hose drum The bully 1000 TST and bully 1200 TST is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details.
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 250 operating Environmental, refuse disposal and water protection regulations...
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity If there are too many collectors in your Lack of water occurs more often than you proximity connected to the network at the probably believe. The more powerful a high- same time, the available voltage and the pressure cleaner is the greater is the danger current intensity may decline.
Page 9
Functional details Functional details Water and cleaning system Motor protection switch Water can be connected at mains pressure to the high-pressure pump. The water Motor is protected against overload by means of a motor protection switch. is then forced under pressure by the high-pressure pump to the lance. The high- In case of motor overload or blocking, the motor of the high-pressure cleaner pressure jet is formed by the nozzle at the end of the lance.
Putting into operation Putting into operation Move high-pressure cleaner to the First pull back the retaining sleeve job site. The bully-series is a movable of the safety trigger gun, then insert high-pressure cleaner with sturdy lance into the plug coupling connection trolleys ideally suited for difficult of the safety trigger gun.
Page 11
Putting into operation Putting into operation Connect water hose to water inlet (mi- 10. Switch on high-pressure cleaner with nimum requirements; 5 m hose length, opened safety trigger gun. Bleeding cross-section ¾", 10 bar). The high-pres- of the high-pressure cleaner: Pull and sure cleaner may be connected to a release trigger of safety trigger gun water mains (1-10 bar pre-pressure)
Direct suction Taking out of operation Direct water extraction Switch off the high-pressure cleaner Due to the suction capacity of its high-pressure pump (up to 2.5 m suction height, 2. Cut off the water supply max. hose length 3 m) this high-pressure cleaner can suck in water for cleaning Open the safety trigger gun catch briefly until the pressure is released purposes from separate containers or ponds.
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked.
Page 14
Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high-pressure cleaner After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
Kränzle accessories Kränzle accessories Adapter for accessories with screw connections with quick release nipple Double lance For item no. 12.440 (fig. left) with ISO handle 400 mm extension with quick release nipple with grip plates Low pressure nozzle D3035 as standard Item no.: 12440 (fig.
Kränzle high-pressure cleaner (= product) applies to material faults only such as material and manufacturing defects. Nominal flow: bully 1000 TST: 960 l/h bully 1200 TST: 1400 l/h Defects attributable to long and frequent use of the product, typically arising...
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment.
