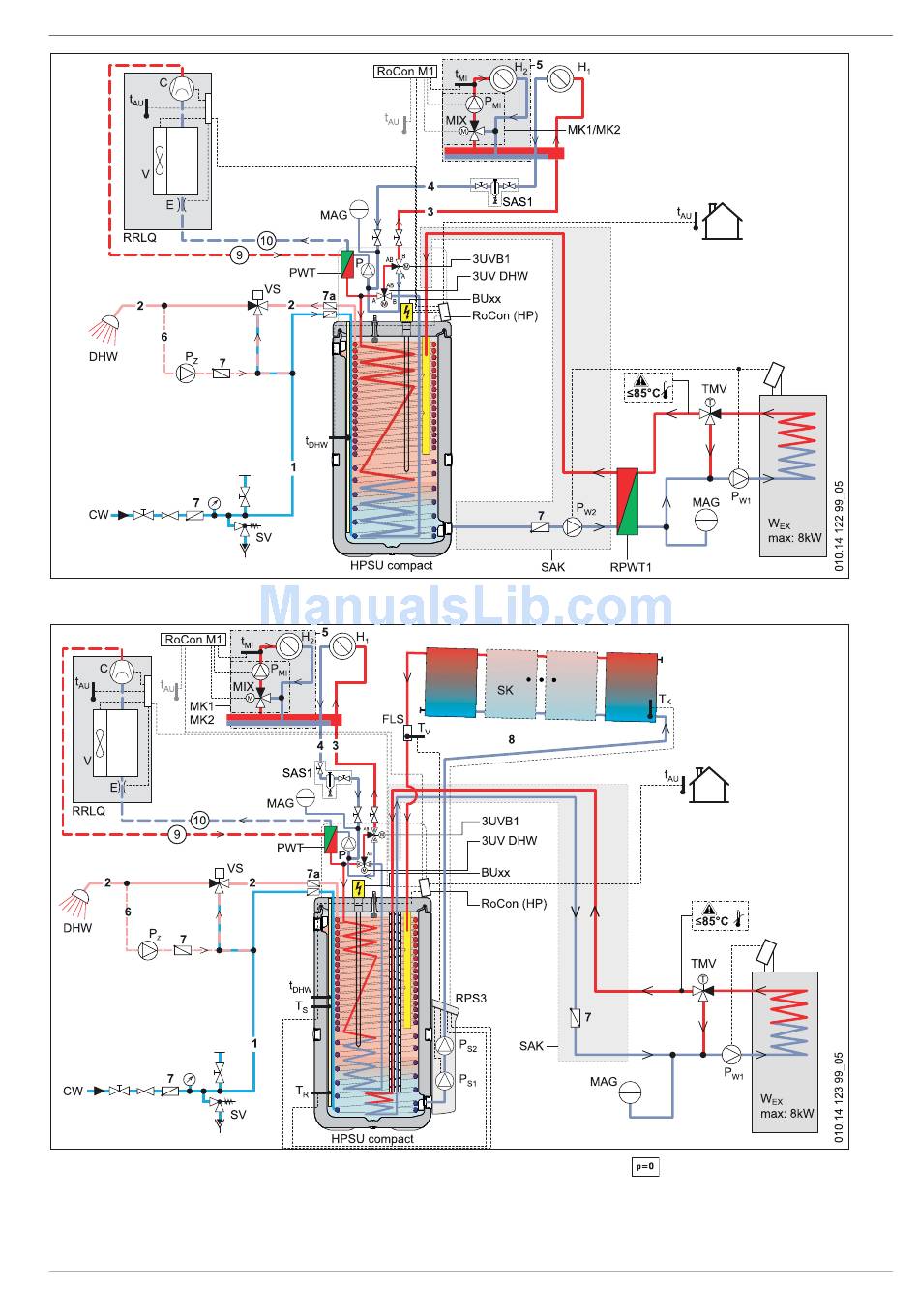

Fig. 9-6
ROTEX HPSU compact 508/516 (DB) with wood-burning boiler <8 kW without solar support (for legend, see tab. 9-1)
Fig. 9-7
ROTEX HPSU compact 508/516 BIV with wood-burning boiler <8 kW and Drain-Back solar
FA ROTEX HPSU compact 4 - 06/2015
9
x
Hydraulic system connection
(Legend see tab. 9-1)
