Set-up and installation

WARNING
Cooling systems (heating pumps), climate control systems and heating devices that have been set up and installed incor-
rectly can both endanger life and health of people and be impaired in their function.
Work on the ROTEX HPSU compact (such as setup, servicing, connection and initial start-up) is only to be carried out
by persons who are authorised and who have successfully completed qualifying technical or vocational training and
who have taken part in advanced training sessions recognised by the relevant responsible authorities for the specific
activity. These include in particular certified heating engineers, qualified electricians and HVAC specialists, who
because of their professional training and expert knowledge, have experience in the professional installation and
maintenance of heating, cooling and air conditioning systems and heat pumps.

4.1 Dimensions and connections

4.1.1 ROTEX HPSU compact 304/308

1 Solar - feed
2 Cold water
3 Hot water
4 Heating feed
5 Heating return flow
6 Connection coolant gas line

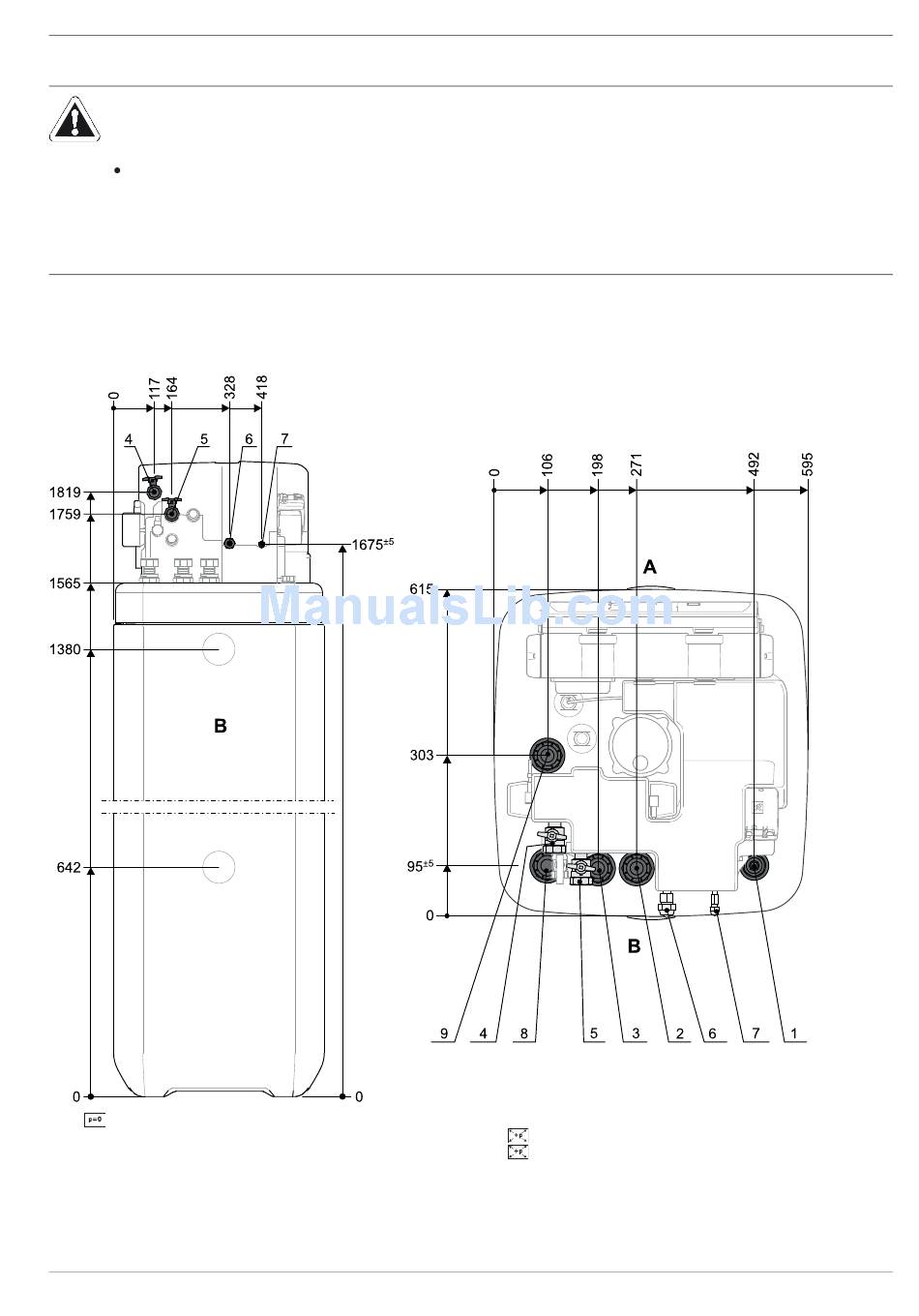

Fig. 4-1 Connections and dimensions ROTEX HPSU compact 304/308 (in general)
FA ROTEX HPSU compact 4 - 06/2015
4 x Set-up and installation
7 Connection coolant fluid line
8 Solar - flow (only type ... BIV)
9 Solar - return (only type ... BIV)
A Front
B Back
