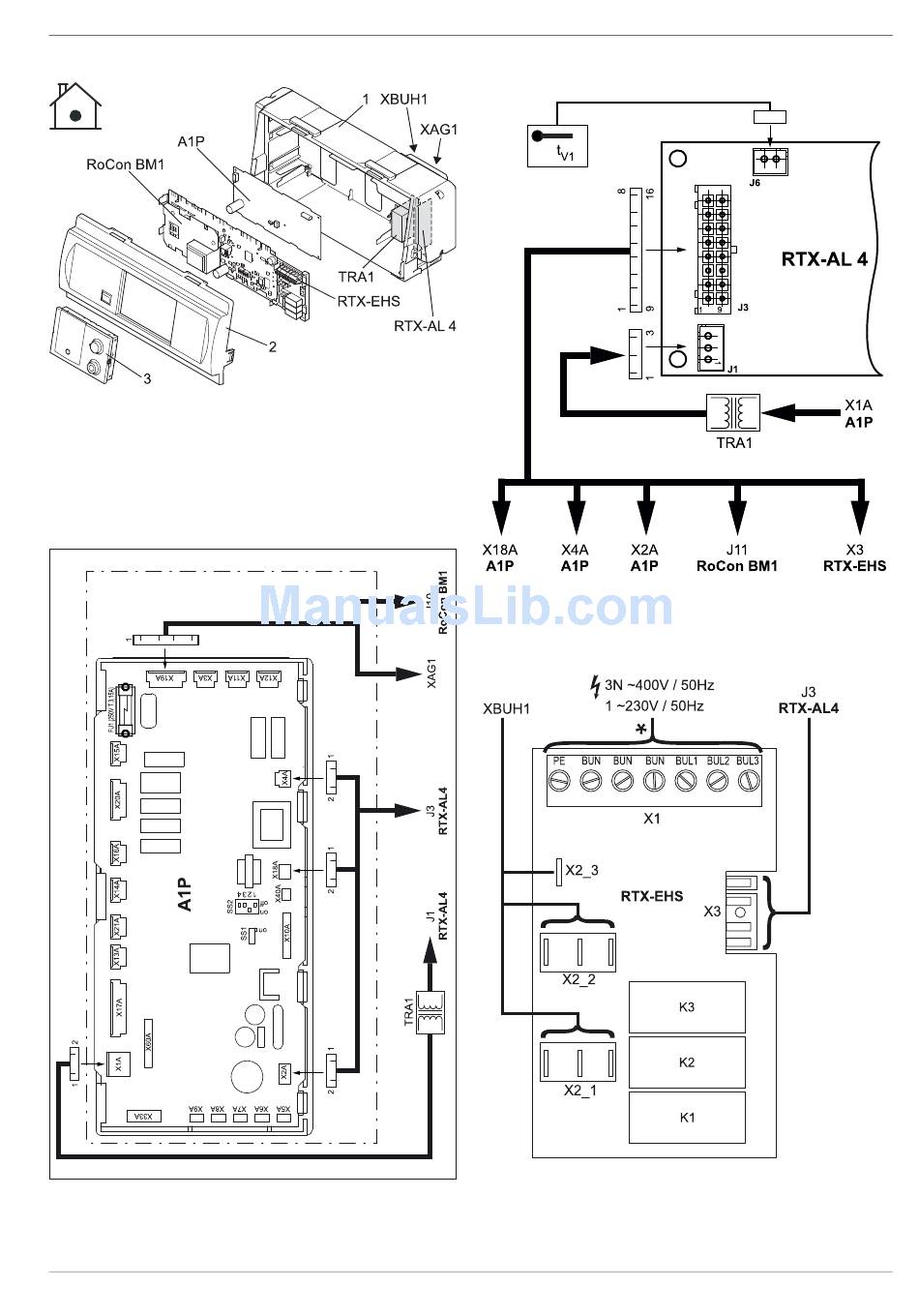

4.4.2 Position of the circuit boards
1
Control housing
2
Control panel
Fig. 4-8
Overview circuit boards (internal housing)
4.4.3 Connection assignment, circuit board A1P
The A1P circuit board comes pre-connected to the unit. No as-
sembly or connection work is necessary on the A1P circuit board!
Fig. 4-9
Circuit board A1P (basic control of the heat pump)
FA ROTEX HPSU compact 4 - 06/2015
3
Control section of the control
4
x
Set-up and installation
4.4.4 Terminal assignment for the RTX-AL4 circuit
board
Fig. 4-10 Circuit board RTX-AL4 (interface)
4.4.5 Terminal assignment for the RTX-EHS circuit
board
Fig. 4-11 Circuit board RTX-EHS (Backup Heater) - see section 4.4.14
21
