For the operator
ROTEX HPSU compact
Operating instructions
Solar tank with integrated interior heat pump unit
For the types
HPSU compact 304
HPSU compact 308
HPSU compact 508
HPSU compact 516
GB
Output03/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPSU compact 516 and is the answer not in the manual?

Questions and answers

Related Manuals for Rotex HPSU compact 516

Summary of Contents for Rotex HPSU compact 516

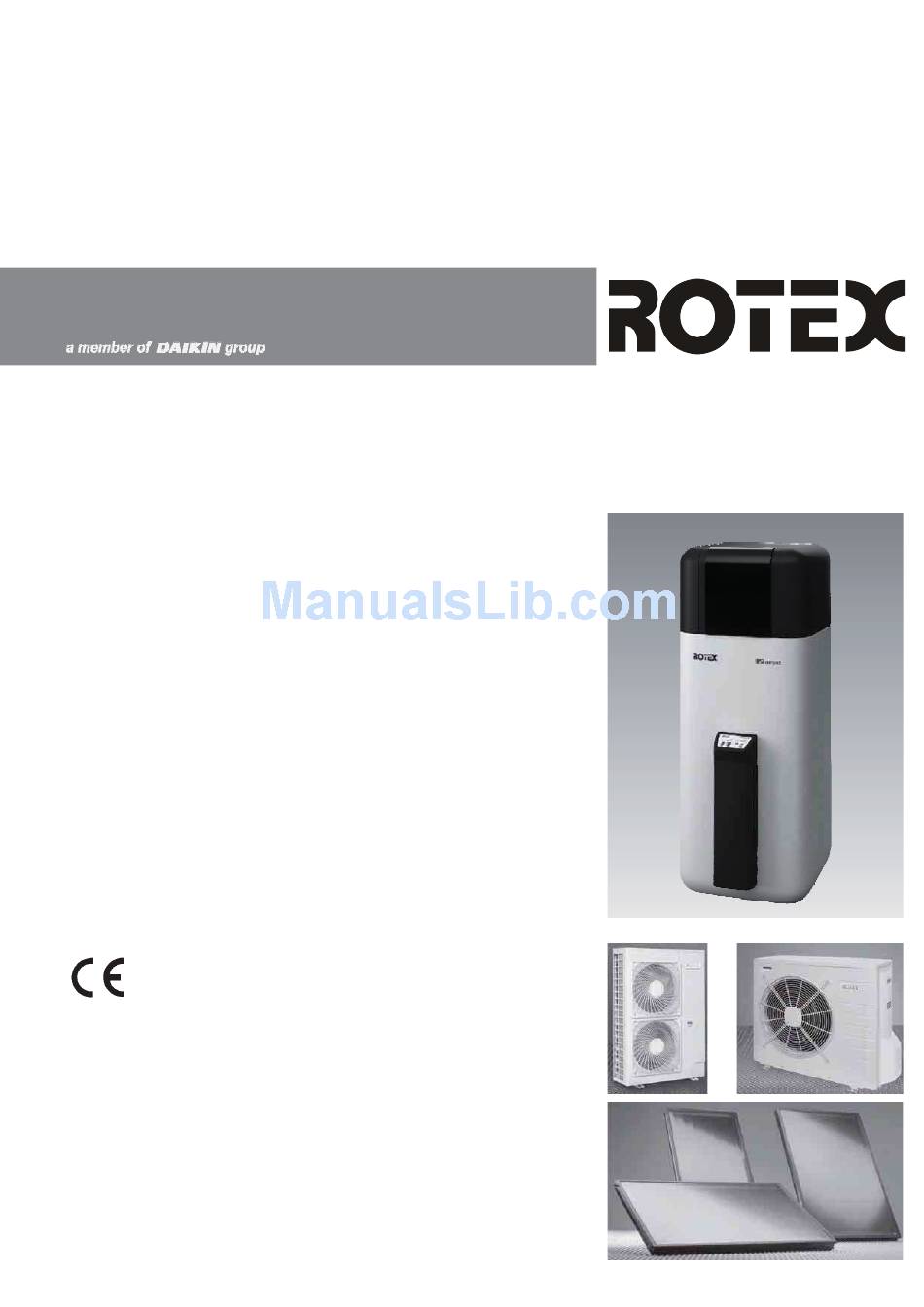

  • Page 1 For the operator ROTEX HPSU compact Operating instructions Solar tank with integrated interior heat pump unit For the types HPSU compact 304 HPSU compact 308 HPSU compact 508 HPSU compact 516 Output03/2013...

  • Page 2: Table Of Contents

    3.5.2 Parameter .......20 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 3: Safety

    – External unit for ROTEX HPSU compact; the associated installation and operating instructions. Handling instructions – With connection of a ROTEX Solaris solar system; the asso- Instructions on actions are shown as a list. Actions of which ciated installation and operating instructions.

  • Page 4: Instructions For Operating Safety

    Ask your water utility whether Work on the ROTEX HPSU compact (such as setup, the use of heating components made from stainless steel results servicing, connection and initial start-up) is only to be carried in problems with corrosion in your area.

  • Page 5: Product Description

    The storage tank on the ROTEX HPSU compact is built in such a drawn off over a long period of time.

  • Page 6: Solar Support

    Product description 2.1.2 Solar support 2.2 Design and components If connected to a ROTEX Solaris solar system, the flat solar 2.2.1 System overview panels transform the solar radiation to heat very efficiently. When the heat carrier medium water reaches a useable temperature, it is pumped by feed pumps in the control and pump unit (RPS3) through the solar panels.

  • Page 7: Equipment External And Internal Structure Hpsu Compact 304/308 H/C Db

    Product description 2.2.2 Equipment external and internal structure HPSU compact 304/308 H/C DB Fig. 2-2 Structure and constituents HPSU compact 304/308 DB (External appearance and internal structure) Designations of key see table 2-1 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 8: Equipment External And Internal Structure Hpsu Compact 304/308 H/C Biv

    Product description 2.2.3 Equipment external and internal structure HPSU compact 304/308 H/C BIV Fig. 2-3 Structure and constituents HPSU compact 304/308 BIV (External appearance and internal structure) Designations of key see table 2-1 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 9: Equipment External And Internal Structure Hpsu Compact 508/516 H/C Db

    Product description 2.2.4 Equipment external and internal structure HPSU compact 508/516 H/C DB Fig. 2-4 Structure and constituents HPSU compact 508/516 DB (External appearance and internal structure) Designations of key see table 2-1 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 10: Equipment External And Internal Structure Hpsu Compact 508/516 H/C Biv

    Heat exchanger (stainless steel) for pres- CuT, Ø 6.4 mm (1/4"), equipment surised solar storage tank charging HPSU compact 516: CuT, Ø 9.5 mm Shown on Type 508 (3/8") Tab. 2-1 Legend from fig. 2-2 to fig. 2-5 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 11: Operation

    Current outdoor temperature compressor Active heating programme Display of expert login Status of hot water genera- Display time tion Current flow temperature Current storage tank temper- (heating circuit) ature Fig. 3-2 Controller display BA ROTEX HPSU compact 4 - 03/2013...

  • Page 12: Operating Elements

    Action Result Rotating To the right (+): Increased regulation To the left (–): Reduced regulation Tap sthing Confirm, accept, execute selection. Tab. 3-2 Functions of the rotary switch BA ROTEX HPSU compact 4 - 03/2013...

  • Page 13: Standard Settings

    This icing impairs efficient operation. The system detects this condition automati- cally and starts the melting operation. After 8 minutes at most, the system returns to normal mode. BA ROTEX HPSU compact 4 - 03/2013...

  • Page 14: System Information

    An outdoor temperature sensor (weather-controlled regulation) More detailed explanations and possible setting values for this rotary switch setting or a connected room station will also influence the set temper- can be seen in chapter 4.6. ature regulation. BA ROTEX HPSU compact 4 - 03/2013...

  • Page 15: Temperature Setting Hot Water Mode

    To have a better overview, we recommend making a record possible, or in blocks of "Monday to Friday", "Saturday of the programmed switching times and keeping this in a safe to Sunday" and "Monday to Sunday". place (see section 3.5.1). BA ROTEX HPSU compact 4 - 03/2013...

  • Page 16: Special Functions

    Interruption and jump back with operating button. 3.4 Special system settings The controller is pre-configured for the HPSU compact but will need to be adapted to an optionally connected accessory and to the installation environment before commissioning. BA ROTEX HPSU compact 4 - 03/2013...

  • Page 17: Weather-Dependent Set Value Regulation

    More detailed explanations and possible setting values for this function can be seen in chapter 4.2. CH Configuration 3.4.3 Legionella protection Heat-Slope 0.70 The ROTEX HPSU compact itself does not need this function Operating Mode because of the small volume of the internal drinking water heat heating 3.00 exchanger.

  • Page 18: Reset

    Using the optional gateway (RoCon G1, 15 70 56), the RoCon HP controller can be connected to the internet. This means that the ROTEX HPSU compact can be controlled remotely via mobile phone (using an App). BA ROTEX HPSU compact 4 - 03/2013...

  • Page 19: User-Specific Settings

    Time period Time period [T-DHW 1 des]: °C [T-DHW 2 des]: °C [T-DHW 3 des]: °C Temperature setting Temperature setting Temperature setting Tab. 3-7 Individual settings of the hot water-switching time programme 1 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 20: Parameter

    Rotary switch Parameter Parameter Old value New value Date Comments setting level Tab. 3-10 Individual changes made in the parameter level by the user or the heating technician BA ROTEX HPSU compact 4 - 03/2013...

  • Page 21: Parameter Settings

    5: 14 kW 6: 16 kW INDOOR UNIT Type of interior heat pump unit 0 - 4 0: So far no commissioning has taken place. 1: 304 2: 308 3: 508 4: 516 BA ROTEX HPSU compact 4 - 03/2013...
  • Page 22 0: deactivated 1: activated Pressure Config Parameter for configuring the sensor for evaluating the water pressure in the 0 - 1 system. 0: deactivated 1: activated BA ROTEX HPSU compact 4 - 03/2013...
  • Page 23 Temperature spread modulation upper limit for hot water heating mode 2 - 20 Time PD Decay delay in integrated circulation pump for minimization of relay play. 10 - 600 s 300 s 10 s BA ROTEX HPSU compact 4 - 03/2013...
  • Page 24 We can set an individual flow temperature for each day for the duration of a maxi- mum of 28 days. The end of the screed programme is defined by the 1st. day at set value setting "- - - -". BA ROTEX HPSU compact 4 - 03/2013...
  • Page 25 -5 - 5°C 0 °C teristic line (condition: operating mode cooling). Reset? Setting value for resetting all parameters at this level to the individual standard val- 0 - 1 ues. 0: off; 1: on BA ROTEX HPSU compact 4 - 03/2013...

  • Page 26: Rotary Switch Setting: Dhw Installation

    Delay time after which the reserve heating may support the heat pump in hot water 20 - 95 min 50 min 1 min charging. Tab. 4 -2 Parameter in rotary switch setting "DHW Installation" BA ROTEX HPSU compact 4 - 03/2013...

  • Page 27: Rotary Switch Setting: Operating Mode

    48 °C 0.5 K that applies to the 3rd. switch timer programme block in the timer programmes Automatic 1 and Automatic 2. Tab. 4 -6 Parameter in rotary switch setting "DHW Set Temp" BA ROTEX HPSU compact 4 - 03/2013...

  • Page 28: Rotary Switch Setting: Time Programme

    15 minutes can be set. A separate entry for each weekday is possible. Also, blocks of Monday to Friday, Saturday to Sunday and Monday to Sunday can be parametrised. Tab. 4 -7 Parameter in rotary switch setting "Time Programme" BA ROTEX HPSU compact 4 - 03/2013...

  • Page 29: Rotary Switch Setting: Info

    The software number and the version of the modbus board are displayed. Mixer Position The current position of the 3UV1 mixer is displayed in %. Tab. 4 -8 Parameter in rotary switch setting "Info" BA ROTEX HPSU compact 4 - 03/2013...

  • Page 30: Rotary Switch Setting: Basic Configuration

    There are, however, conditions under which the controller does not accept the fault reset. Return This parameter is used only to exit the special level. Tab. 4 -10Parameter in the level "Special function" BA ROTEX HPSU compact 4 - 03/2013...

  • Page 31: Glossary

    The suitable flow temperature is calculated from the measured value for the external temperature and value regulation a defined heating curve; this temperature serves as the target value for temperature control in the heating unit. BA ROTEX HPSU compact 4 - 03/2013...

  • Page 32: List Of Keywords

    ....17 Whisper mode ....18 BA ROTEX HPSU compact 4 - 03/2013...

  • Page 33: Notes

    Notes Notes BA ROTEX HPSU compact 4 - 03/2013...
  • Page 34 Notes BA ROTEX HPSU compact 4 - 03/2013...
  • Page 35 Notes BA ROTEX HPSU compact 4 - 03/2013...
