Product description

3.1.4 Equipment external and internal structure ROTEX HPSU compact 508/516 DB

Fig. 3-4

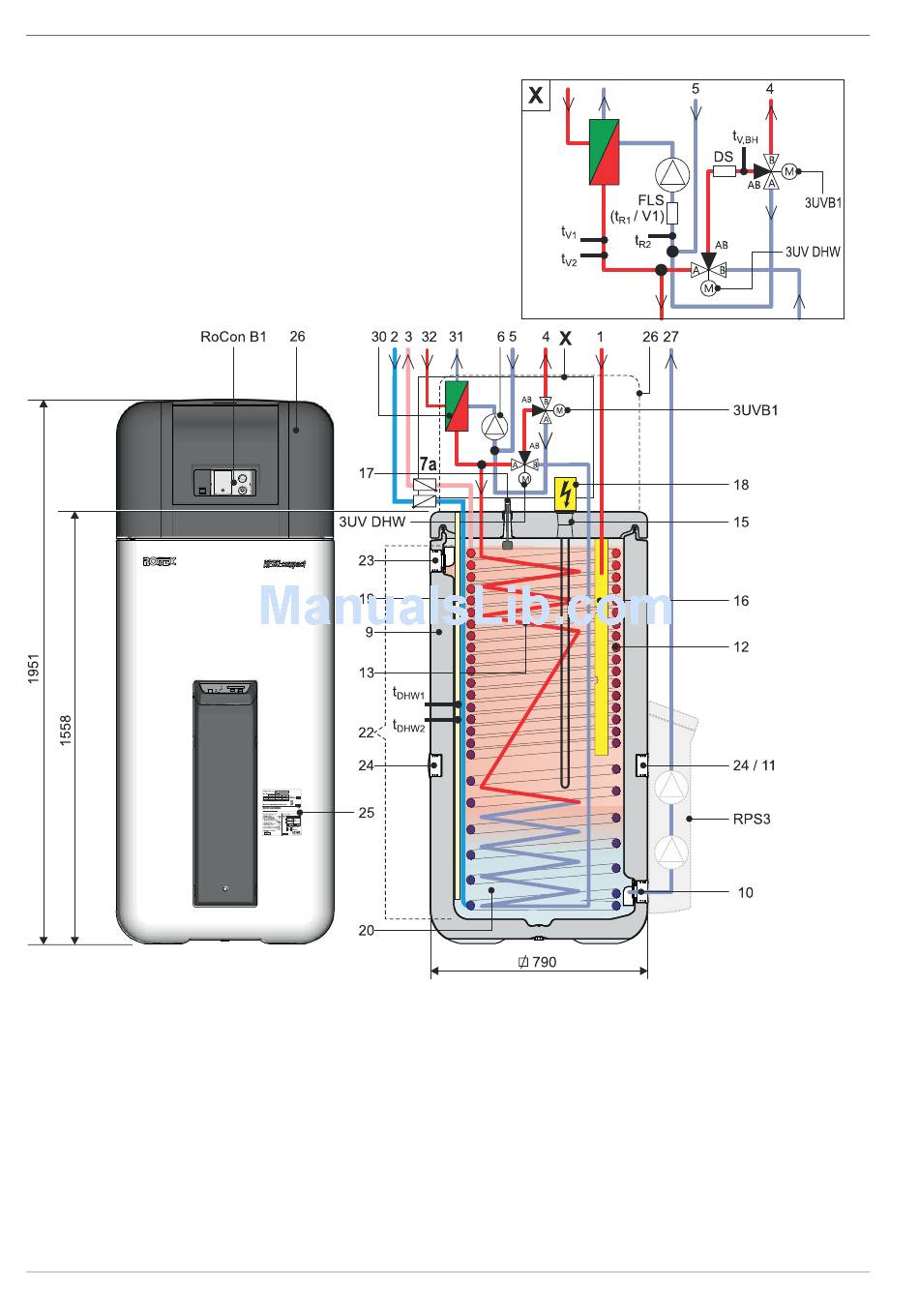

Structure and constituents ROTEX HPSU compact 508/516 DB (External appearance and internal structure)
Designations of key see tab. 3-1
12
FA ROTEX HPSU compact 4 - 06/2015
