MASPORT RAGLAN
www.masport.com
OWNER'S MANUAL
IMPORTANT: READ THESE INSTRUCTIONS FOR USE
CAREFULLY. FAMILIARISE YOURSELF WITH THE
APPLIANCE BEFORE CONNECTING IT TO IT'S GAS
CYLINDER.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR
FUTURE USE.

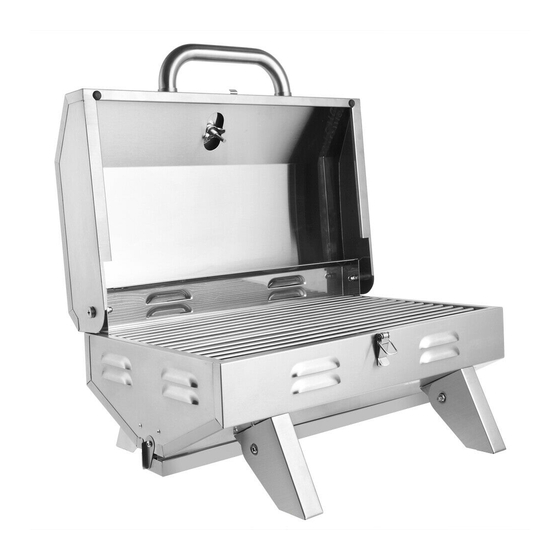

This manual covers the Masport Raglan Barbecue.
Part N
: 558763.H.2
o
Revised July '16
Advertisement
Related Manuals for Masport RAGLAN
Summary of Contents for Masport RAGLAN
- Page 1 IMPORTANT: READ THESE INSTRUCTIONS FOR USE CAREFULLY. FAMILIARISE YOURSELF WITH THE APPLIANCE BEFORE CONNECTING IT TO IT’S GAS CYLINDER. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE USE. This manual covers the Masport Raglan Barbecue. Part N : 558763.H.2 www.masport.com Revised July ‘16...
- Page 2 ASSEMBLY INSTRUCTIONS • Do not modify this appliance. period from the date of purchase, Masport will replace or repair the defective part free of charge. Refer to the warranty for details. Do • Do not use this appliance if it is leaking, damaged or does not not use a BBQ that is unsafe.
- Page 3 more than two walls, the following shall apply: OTHER PRECAUTIONS INSTALLATION at least 25% of the total wall area is completely open and Do not obstruct any of the ventilation openings in the barbecue unrestricted body. Should you need to change the gas cylinder, confirm that the at least 30% of the remaining wall area is open and cylinder is off, and that there are no sources of ignition (cigarettes, WARNING!
- Page 4 PARTS DIAGRAM & PARTS LIST PARTS LIST PARTS DIAGRAM Description Description 558738 Handle - Hood 558759 Fire Box 558757 558750 Hood without Handle Bracket - Ext, Burner (x2) 558740 558751 Bezel, Handle Spring Latch, Drip tray 558741 558752 Lighting Rod Latch, Drip tray 558742 558753...
-
Page 5: Lighting Instructions
gas cylinder by screwing in an anti-clockwise direction. 1lb Regulator (KR 101) and 1lb Gas bottle & (DOT-39 NRC 232/290 ASSEMBLY INSTRUCTIONS OPERATION DO NOT OVERTIGHTEN! As the regulator is fitted with a M1110) connections shown below. soft nose, it should only be tightened a further 1/4 turn after resistance is first felt. - Page 6 When re-lighting allow five minutes to get previous unburnt ROASTING HOOD COOKING When grill is not in use, turn valve knob to “OFF”, remove the TURNING OFF GRILL gases out. gas cylinder from regulator. If the grill is stored indoors, detach Barbecues equipped with a roasting hood give the option of Once burner is lit, select the correct setting for your food.
- Page 7 neutral cleaner low in chloride is essential. The cleaning method Extreme care should be taken when removing a burner. It must any sources of heat or ignition. Do not let children tamper with the using a protective cover, the BBQ should always be cool, cleaned generally employed with these cleaners is to apply them to the be correctly centered on the orifice before any attempt is made to bottle.
- Page 8 Max Overpressure: 7kPa MASPORT LIMITED 1-37 Mt Wellington Highway, Panmure, Auckland 1060, NZ PO Box 14349, Panmure Auckland 1471, NZ MASPORT AUSTRALIA PTY LIMITED 1/40 Abbotts Road, Dandenong South, Melbourne, Victoria 3175, Australia PO Box 533, Braeside, Victoria 3195, Australia MANUFACTURED BY:...
- Page 9 Head Office - New Zealand 1-37 Mt Wellington Highway, Panmure, Auckland 1060 P.O. Box 14 349, Panmure, Auckland 1741...
