Belfort
Document n°1174-11 ~ 22/06/2010
EN

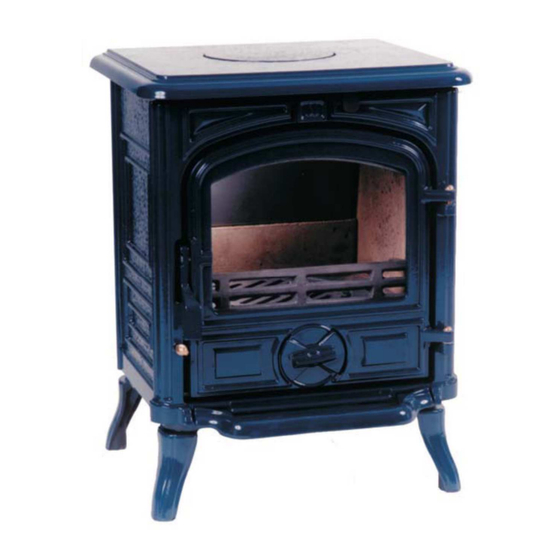

Multifuel stove
DIN EN 13240 / 2005-10
Output: 4.5 kW
Réf. 134 04 11
Technical manual
To be saved
By the user
For future reference.
"La chaleur en toute confiance"
ième
127
RIF,15
BE 5660 MARIEMBOURG
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Subject to modifications.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the belfort and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FRANCO BELGE belfort

Summary of Contents for FRANCO BELGE belfort

  • Page 1 Belfort Document n°1174-11 ~ 22/06/2010 Multifuel stove DIN EN 13240 / 2005-10 Output: 4.5 kW Réf. 134 04 11 Technical manual To be saved By the user For future reference. "La chaleur en toute confiance" ième RIF,15 BE 5660 MARIEMBOURG...

  • Page 2: Table Of Contents

    FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products.

  • Page 3: Product Information

    “BELFORT” - ref. 134 04 11 Product information This appliance is meant to burn wood or coal safely Warning An incorrectly installed wood stove can cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements 1.

  • Page 4: Installation Instructions

    “BELFORT” - ref. 134 04 11 Installation instructions 2. Installation instructions 2.1. Warning to the user appliance and 1200 mm above the hearth. Il however, any part or sides of the appliance lies within 50 mm of the wall, then the wall should be of solid...

  • Page 5: Flue

    “BELFORT” - ref. 134 04 11 Installation instructions Hearths are provided to prevent combustion appliances setting fire to the building fabric and furnishings and to limit the risk of people being accidentally burnt. Therefore, they should be separated from adjacent combustible materials and should be satisfactorily delineated from surrounding floor finishes (carpets etc.)

  • Page 6: Assembly Of Flue Spigot And Blanking Plates

    “BELFORT” - ref. 134 04 11 Installation instructions Figure 6 - Chimney connections 1 - Chimney 2 - Funnel-shape fireproof material 3 - Non combustible register plate 4 - Cleaning access door 5 - Liner 6 - Non combustible register plate...

  • Page 7: Maintenance Of The Stove Body

    / touched up using a stove paint. These Figure 7 products are available from your Franco Belge Dealer. The closing latch rotates around a pressure screw Caution ! : The appearance of cracks when burning the positioned cam.

  • Page 8: Instructions For User

    • Recommended fuel : At the first lighting, the fire must be progressively The best fuels for use with the Franco Belge “Belfort” increased to allow the various parts to expand normally are : and to dry up.

  • Page 9: Instructions For Use With Wood

    “BELFORT” - ref. 134 04 11 Instructions for user Figure 9 - Removing the fuel retainer 3.2. Instructions for use with wood 3.2.1. Lighting Figure 8 • Slide the top air control (rep. B1) to the right. Open the lower spin wheel (rep. C1).

  • Page 10: De-Ashing

    The door rope seals should be checked annually and It is essential to keep the grate free from a heavy build replaced when required. up of ashes. The Belfort is equipped with a grate riddling device which is used to “shake” ashes off the •...

  • Page 11: Trouble Shooting

    “BELFORT” - ref. 134 04 11 Instructions for user 3.10. Trouble Shooting þ : This sign means that you should ask for a qualified engineer to do the work. Problem Probable causes Action Fire difficult to start Wood green, too damp or poor Use the recommended fuel.

  • Page 12: Spare Parts

    When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Belfort wood stove : “Belfort”, model : 134 04 11, colour Y, top : 352136 EF. A = 1340411 Y...
  • Page 13 “BELFORT” - ref. 134 04 11 Spare parts " $ " ! " " ! " #  & " & "  & "  " ! & ! " & "  " % " " " "...
  • Page 14 “BELFORT” - ref. 134 04 11 Spare parts A = 1340411 Y C = 1340411 C E = 1340411 D G = 1340411 E B = 1340411 J D = 1340411 I F = 1340411 P N° Code . . . Description ... . . Type ..A . . . B . . . C . . . D . . . E . . . F . . . G . . Qty 309989 MK .
  • Page 15 “BELFORT” - ref. 134 04 11 Note Note Technical manual “1174”...
  • Page 16 "La chaleur en toute confiance" § Guarantee certicate § Moreover, if the repair or replacement of parts covered by the guarantee * Legal guarantee is found to be too costly vis-à-vis the price of the appliance, the decision to replace or repair the appliance will be taken by the vendor. The specifications, dimensions and information shown on our documents are provided for information purposes only and under no circumstances Our guarantee is for 2 (two) years for all appliances, with the exception...
