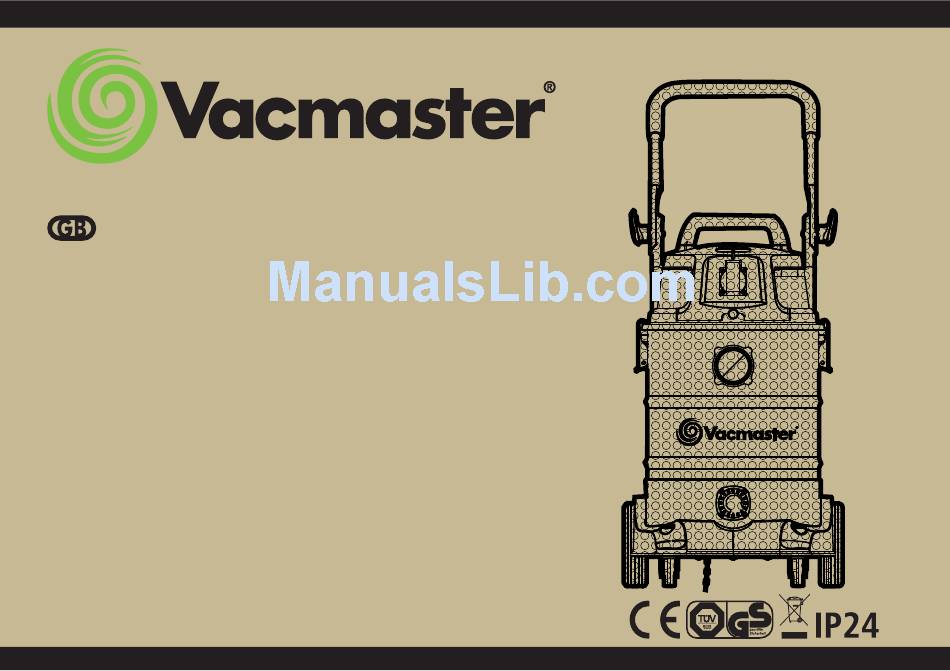

VK1530SIWDC-T 950204 WET AND DRY VACUUM CLEANER WET AND DRY VACUUM CLEANER WET & DRY VACUUM CLEANER 1500W / 30L / VK1530SIWDC-T 950204... -
Page 2: Table Of Contents
Exploded View and Parts List _________________________________________________ 10 Thank you for purchasing this Vacmaster® wet/dry vacuum cleaner. Feel confi dent that with Vacmaster® you are obtaining a high quality product engineered for optimal performance. This vacuum is capable of picking up liquids and dry materials. -
Page 3: Warranty
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Vacmaster® takes pride in producing a high quality, durable product. This • Do not run Wet/Dry Vac over cord. -
Page 4: Specifi Cations
Rear Wheels _______________________________ • Don’t use the appliance without a dust bag (an exception is wet vacuuming). Make Hub Caps _________________________________ sure that the dust bag is inserted into the appliance correctly. ‘R’ Lock Pins _______________________________ • When using the appliance, make sure that no hair, clothing, or members are drawn Washers __________________________________ Casters ___________________________________ •... -
Page 5: General Assembly Instructions
8. Your vacuum comes ready for dry vacuum cleaning with PET cartridge fi lter pre- installed. If cartridge fi lter is not installed, refer to page 8 for fi lter installation. (fi g.8&fi g.9)The PET cartridge fi lter fi t for wet & dry vacuum cleaning. 9. -
Page 6: Switching On/Off
AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS. WITCHING ON/OFF WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS. -
Page 7: Wet Vacuum Operation
2. Remove collection bag & cartridge fi lter, then carefully install the foam sleeve fi lter over the fi lter cage and place the power head back on the container. (fi g. 2) See fi lter installing instructions on page 8. 3. -
Page 8: Maintenance
AINTENANCE NSTALLING & CLEANING CARTRIDGE FILTERS Installing Cartridge Filter WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET. MAKE SURE 1. Verify that the power cord is disconnected from the outlet. (fi g.1) PLUG IS DISCONNECTED BEFORE CHANGING AND CLEANING FILTERS. 2. -
Page 9: Installing & Cleaning Hepa Filter
Cleaning Foam Sleeve Filter 1. With the removed power head in the upside down position, carefully remove foam ROUBLESHOOTING sleeve fi lter. (fi g. 3) 2. Use a mild soap and water solution to wash foam sleeve fi lter and rinse with clean water. -
Page 10: Exploded View And Parts List
VK1530SIWDC-T Manual Parts List Key Number Drawing Number Description Quantity ARTS LIST -EXPLODED VIEW VK01SR.10.05 Handle VK20SR.10.00 Power Head Assembly FV9563.02.00 Cartridge Filter FV9546.01.20.01 Filter Retainer TVQTDK.12.00 Latch Assembly TVQTXK.05.01 Vacuum Port Defl ector TVQTXK.05.02 Vacuum Port Assembly VM01SR.10.50 Drain Outlet Assembly VM01SR.10.08 Drain Cap VK21SR.22.00... - Page 11 FV8773.01.00 Round Dust Brush FV8704.03.00 Floor Brush / squeegee FV9612.02.00.01 Dust Bag FV9503.02.00 Foam Sleeve Filter FV8322.02.00 Air Control Handle FV8943.01.00 2 Coated Tube...
