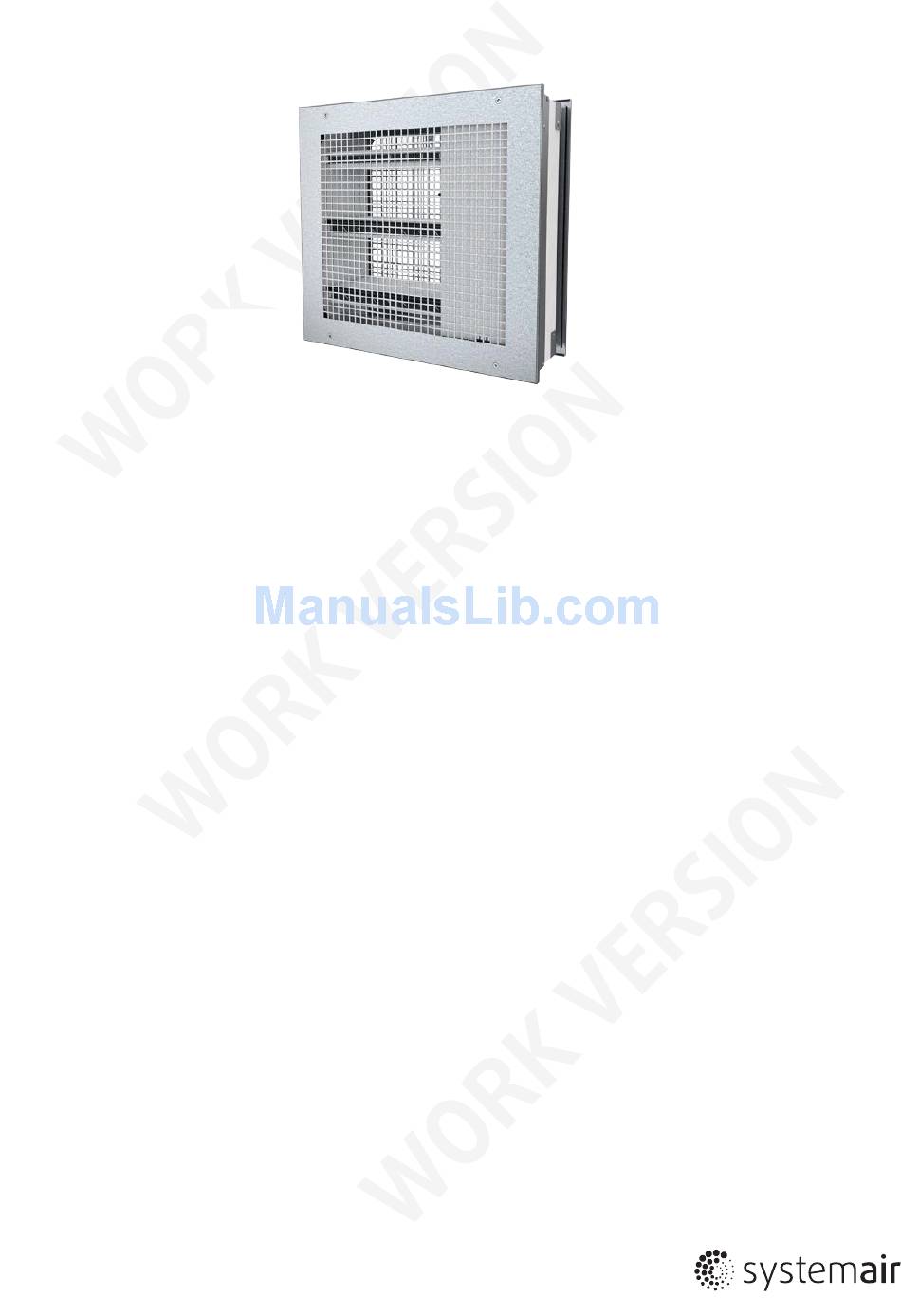

FGS FIRE AIR GRILLE ORIGINAL INSTALLATION, MAINTENANCE AND OPERATION MANUAL EVERY FIRE AIR GRILLE MUST BE INSTALLED IN ACCORDANCE WITH THIS MANUAL!
Page 2
Only rigid wall Tab. 1: Permitted installation methods for the FGS fire air grille * NOTE: To be used at the upper / lower part of a vertical building element according to ETAG 026 Part 4, article 2.4.2.1, paragraph 6...
Page 3
This side of the frame is always aligned with the wall Screw DIN 7504M-SR 4.2 × 25 - fix after inserting the FGS into the frame (Pos. 1) Fig. 2: Wet installation of the FGS frame in a rigid wall using a mixture of plaster or mortar or concrete...
Page 4
This side of the frame is always aligned with the wall Screw DIN 7504M-SR 4.2 × 25 - fix after inserting the FGS into the frame (Pos. 1) Fig. 3: Installation of the FGS frame into a soft crossing in a rigid wall...
Page 5
PP-105_201608 5 / 16 Indication closed Indication open Fig. 4: Connection of the end switches in activating mechanism ZV, DV1, DV1-2 AC 230 V, open - close AC/DC 24 V, open - close Cable colours: Cable colours: N L1 1 = blue 1 = black –...
Page 6
Legend yellow-green wire black wire closed position L + 158 blue wire grey wire Fig. 9: Dimensions of the FGS fire air grille DV1-2 yellow-green wire black wire NOTES: closed position blue wire Wall thickness max. 150 mm – thicker wall on demand grey wire D = 92,7 mm for H = 200 mm up to 700 mm;...
Page 7
PP-105_201608 7 / 16 Fig. 12: Release the closed mechanism NOTE: push the spring with the screwdriver in the direction indicated by the arrow...
Page 8
8 / 16 PP-105_201608 Fig. 13: Twist the blades into the horizontal position...
Page 9
PP-105_201608 9 / 16 Fig. 15: Activate the mechanism NOTE: push the thermal fusible link in the direction indicated by the arrow Fig. 14: Fix the first blade on the top side with the thermal fusible link NOTE: pull the thermal fusible link in the direction indicated by the arrow and hang on sheet metal hook...
There is increased noise only when closing or opening large enough for the reliable performance of the installation, the FGS in cases of inspection or fire accidents (only lasting for a functional testing, inspection and repair. maximum of 60 seconds).
PP-105_201608 11 / 16 1.2 Installation of the FGS into a SOFT CROSSING (Fig. 3, Tab. 2) 2.2 Maintenance 1. Prepare a rectangular opening with dimensions L = L + 260 mm and H = H + 135 mm (according to Fig. 1), the opening Systemair FGSs are maintenance free.
13. Record into Operating log (page 13) with the name and signature of the technician. The FGS is usually part of a system. In this case the system must be checked as specified in its operational and maintenance requirements – this is a task for the installer of the entire system.
Date Inspecting technician‘s signature following the elimination of these deficiencies Periodic inspections of the FGS fire air grille - at least once every 12 months Description of any defects found and the date of the inspection Date Inspecting technician‘s signature...
Page 14
14 / 16 PP-105_201608 Periodic inspections of the FGS fire air grille - at least once every 12 months Description of any defects found and the date of the inspection Date Inspecting technician‘s signature following the elimination of these deficiencies...
Page 15
PP-105_201608 15 / 16 Periodic inspections of the FGS fire air grille - at least once every 12 months Description of any defects found and the date of the inspection Date Inspecting technician‘s signature following the elimination of these deficiencies...
16 / 16 PP-105_201608 Fire resistant heat activated mechanical air transfer grill FGS fire air grille - identification 1488 IMOS-Systemair 90043 Kalinkovo 371, Slovakia 1488-CPR-xxxx ETAG 026 Part 4 Building object tested in accordance with the EN 1634-1 regulation classified in accordance with the EN 13501-2:2005...
