Optional Alternate Position Rack-Mount Flanges - 3Com CoreBuilder 9000 Quick Installation Manual

18 7-S C Q
LOT HASSIS
Optional Alternate
Position Rack-mount
Flanges
I G
UICK NSTALLATION UIDE
3Com offers an alternate position rack-mount flange kit (Model
Number 3CBEK) for the 7-slot chassis. Use these optional flanges if you
want the 7-slot chassis to protrude from the front of the rack.
You can install the cable management device only on the preinstalled
chassis rack-mount flanges. Do not install the optional cable
management device on the alternate position chassis rack-mount
flanges.
The rack-mount kit contains:
Eight flat-head screws
One pair (two) rack-mount flanges

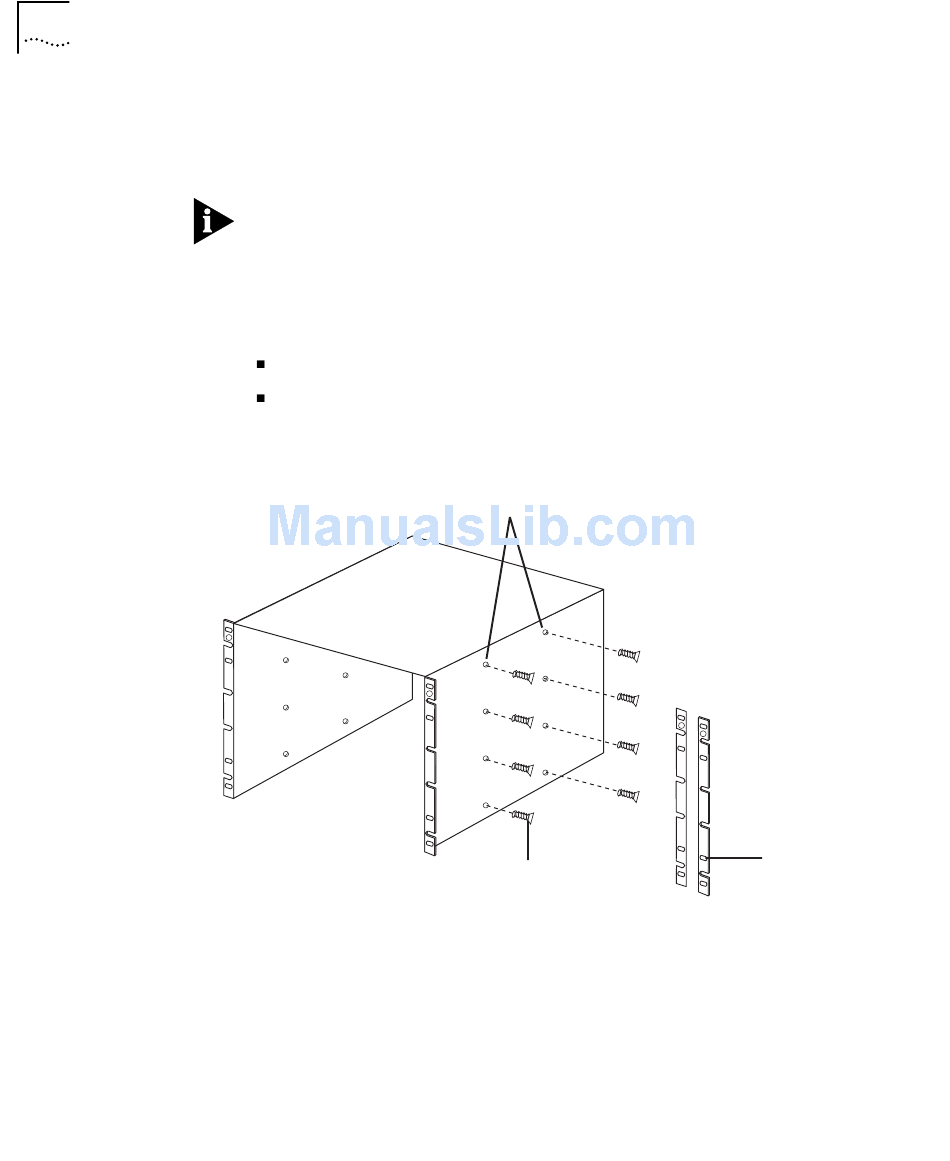

Figure 12 Alternate 7-slot Chassis Rack-mount Positions
The 7-slot chassis has two alternate positions to choose from
(Figure 12).
To install the alternate position rack-mount flanges on a 7-slot chassis,
follow these steps:
1 Select a position on the chassis to mount the flanges.
2 Position a flange flush against one side of the chassis.
Alternate positions
on 7-slot chassis
Eight screws
Rack-mount
flanges
(one per side)
