Installing the Chassis
For a tabletop or shelf installation, the surface on which you want
to locate the CoreBuilder 9000 chassis is level.
For rack installations, the selected rack is grounded in accordance
with the rack manufacturer's recommendations.
Selecting the Slot on the Rack
You have two slot types to select from to mount the chassis in a rack.
Figure 7 shows the Telco (open slot) and Metric (closed slot) slots and
the location of the preinstalled rack-mount flange.

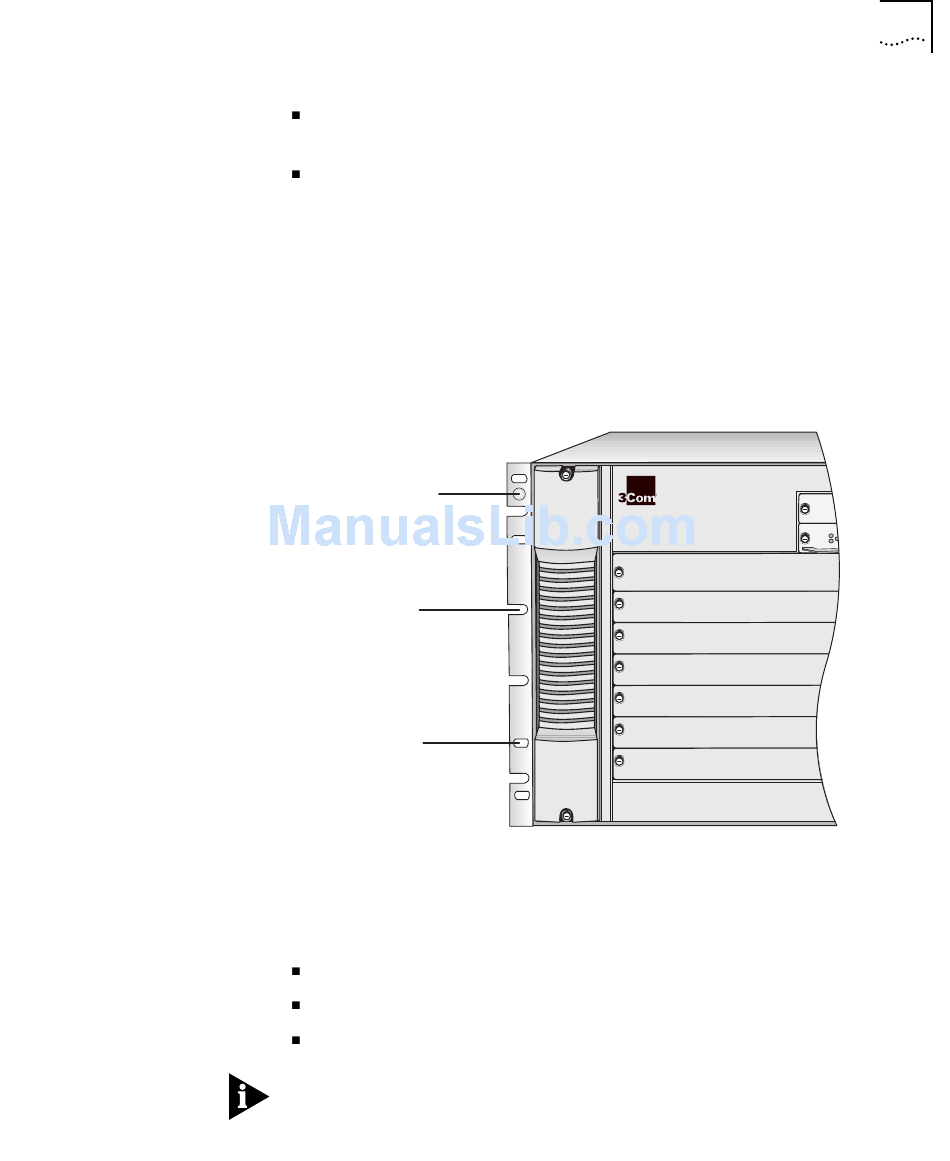

Figure 7 Preinstalled Rack-mount Flange Pin Location and Slot Types on the
CoreBuilder 9000 7-slot Chassis
Preinstalled
flange pin
Telco rack
open slot
Metric rack
closed slot
This section describes how to install:
The chassis in a rack without clip nuts
The chassis in a rack with clip nuts
The chassis on a table or a shelf
You may have other types of racks at your site. Follow the
manufacturer's suggested installation procedures.
7-Slot Chassis Quick Installation Guide
