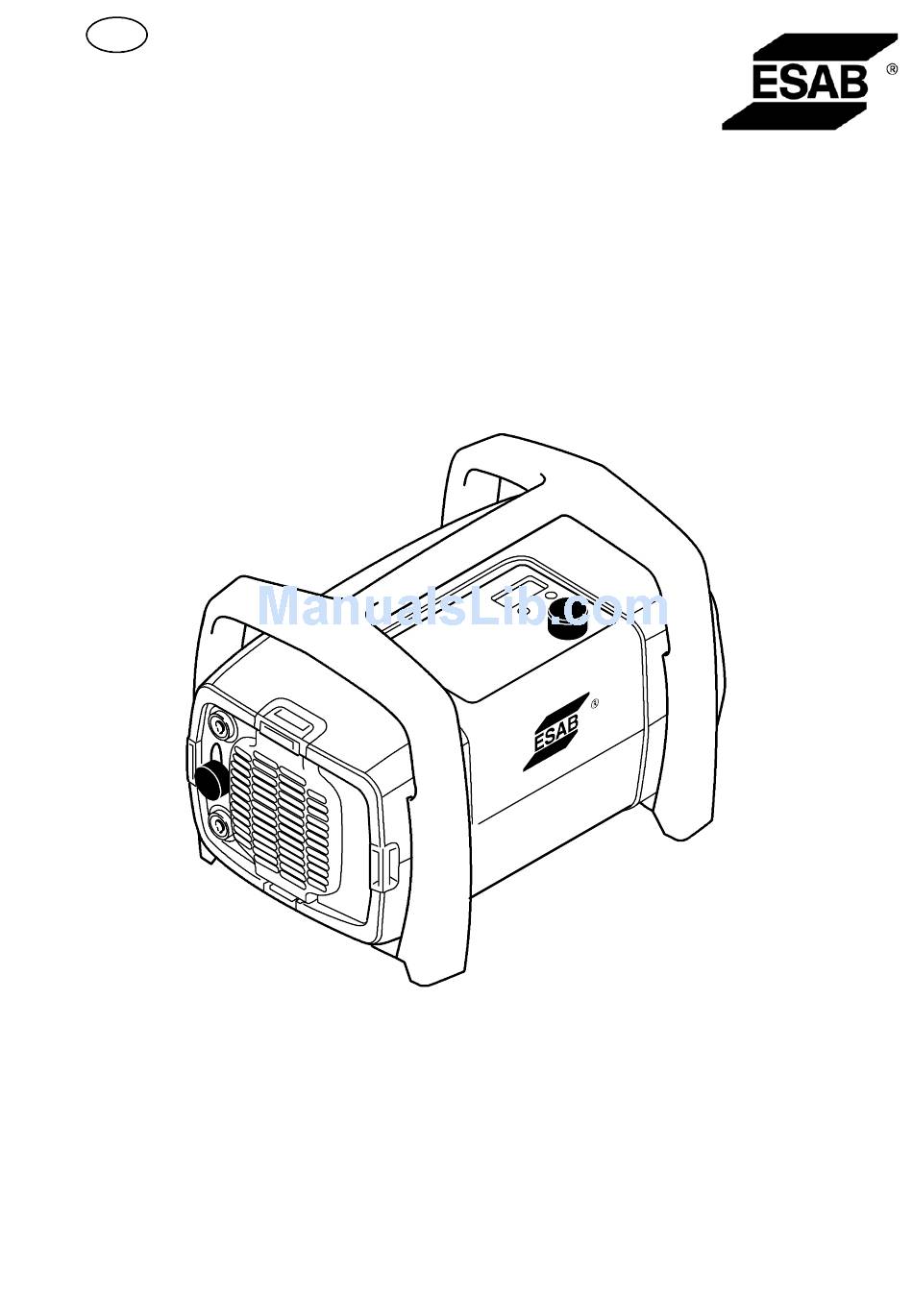

- Page 1 CaddyArc 150 Instruction manual 0459 263 001 GB 041101 Valid for serial no. 316- -xxx- -xxxx, 328- -xxx- -xxxx, 341- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guarantee that welding power source CaddyArc 150 from serial number 316 complies with standard IEC/EN 60974--1, in ac- cordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with stan- dard EN 50199 in accordance with the requirements of directive (89/336/EEC) and addendum (93/68/EEC). -
Page 4: Introduction
The CaddyArc 150 is a welding current power source intended for use with coated electrodes (MMA welding) and TIG welding. Equipment The CaddyArc 150 is supplied with 3 m of mains cable and an instruction manual. ESAB’s accessories for the product can be found on page 16. - - 4 - -... -
Page 5: Technical Data
TECHNICAL DATA CaddyArc 150 Mains voltage 230 V, 1 µ 50/60 Hz Fuse (delayed- -action) 16 A Primary current I 36 A Primary current I 21 A Voltage/current range (DC) 4 A /20 V -- 150 A /26 V Maximum permissible load at... -
Page 6: Mains Power Supply
A protective earth connection must be made in accordance with regulations. 5.3.1 Recommended fuse sizes and minimum cable areas CaddyArc 150 Mains voltage 230 V ¦10 %, 1--phase Mains frequency... -
Page 7: Control Panel
Control panel Welding process parameters are controlled via the control panel. 6.2.1 Functional description Symbol/Function Set values Knob for setting data Arc Force 0 -- 99% Hot Start 0 -- 99% TIG welding “Live TIG--start” MMA welding with coated electrodes Pushbutton indicating welding current (A) and/or arc voltage (V) Connection of remote control unit Indicating lamp (green), mains power supply... -
Page 8: Settings
MMA welding The CaddyArc 150 gives direct current, and you can weld most metals to alloy and non--alloy steel, stainless steel and cast iron.The CaddyArc 150 allows you to weld most coated electrodes from ∅ 1.6 to ∅ 3.25. -
Page 9: Tig Welding
Drop welding (MMA) Drop welding can be used when welding with stainless electrodes. This technique involves alternately striking and extinguishing the arc in order to achieve better control of the supply of heat. The electrode needs only to be raised slightly to extinguish the arc. -
Page 10: Maintenance
MAINTENANCE Regular maintenance is important for safe, reliable operation. Note! All guarantee undertakings from the supplier cease to apply if the customer himself attempts any work in the product during the guarantee period in order to rectify any faults. Cleaning the dust filter Remove the fan grille: see sketch. -
Page 11: Fault Codes
Fault codes The CaddyArc 150 comes with built--in fault monitoring. If a fault occurs, a code is shown in the display. If any of these fault codes is displayed permanently or recurs often, the machine should be sent to an authorised ESAB service workshop for repair. -
Page 12: Diagram
Diagram - - 12 - - CaddyArc150... - Page 13 - - 13 - - CaddyArc150...
-
Page 14: Ordering Number
Ordering number Ordering no. Denomination Type 0459 199 880 Welding Power source CaddyArc 150 for 230 V mains voltage 0459 199 886 Welding Power source CaddyArc 150 for 230 V mains voltage, North American version 0459 263 990 Spare parts list... -
Page 15: Spare Parts List
CaddyArc 150 Spare parts list Item Ordering no. Denomination 0459 277 001 Filter Edition 041101 - - 15 - - bh26s... -
Page 16: Accessories
CaddyArc 150 Accessories MMA welding and return cable kit ..0349 501 078 (”crocodile” type holder) MMA welding and return cable kit ..0349 501 079 (”screwe” type holder) Remote control MMA 1 (10 m cable) . - Page 17 - - 17 - -...
