Professional 250
Caddyt
Instruction manual
0457 552 301 GB 060814
Valid for serial no. 632- -xxx- -xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caddy Professional 250 and is the answer not in the manual?

Questions and answers

Summary of Contents for ESAB Caddy Professional 250

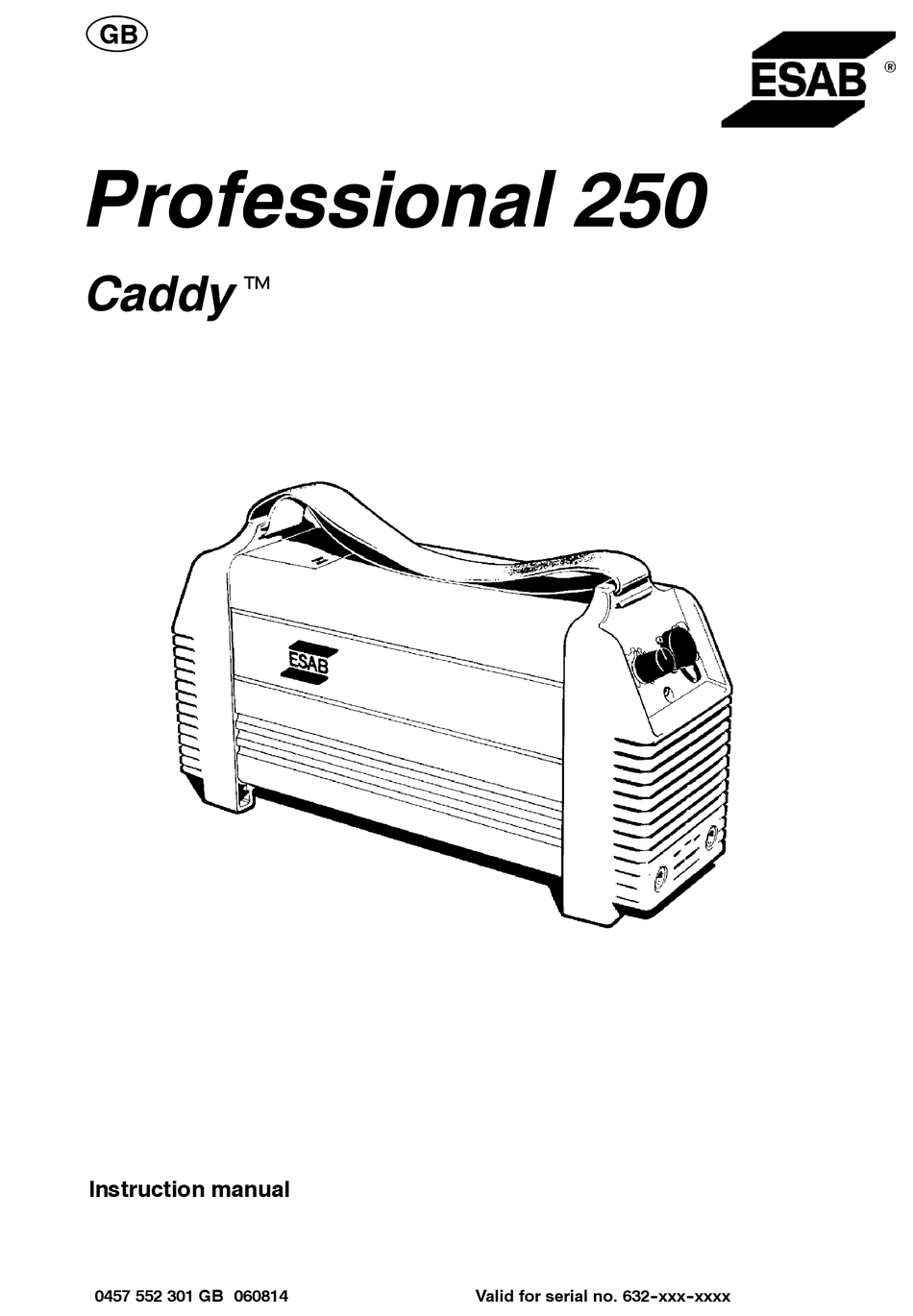

  • Page 1 Professional 250 Caddyt Instruction manual 0457 552 301 GB 060814 Valid for serial no. 632- -xxx- -xxxx...
  • Page 2: Table Of Contents

    1 DIRECTIVE ............2 SAFETY .
  • Page 3: Directive

    DIRECTIVE DECLARATION OF CONFORMITY ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld- ing power source Professional 250 from serial number 632 complies with standard IEC/EN 60974--1, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with standard IEC/EN 60974--10 in accordance with the requirements of directive (89/336/EEC) and add- endum (93/68/EEC).
  • Page 4 MALFUNCTION - - Call for expert assistance in the event of malfunction. READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. This product is solely intended for arc welding. WARNING! Read and understand the instruction manual before installing or operating.
  • Page 5: Introduction

    The rounded slimline shape of the unit makes it comfortable to carry. The strap can be folded to serve as a carrying handle, or fully extended to serve as a shoulder strap. ESAB’s accessories for the product can be found on page 13. TECHNICAL DATA Performance:...
  • Page 6: Field Of Application

    TIG welding is particularly useful when high quality standards are required and when welding thin sheet. Before using the Caddy Professional 250 for TIG welding it must be equipped with: a TIG torch and gas valve a cylinder of argon...
  • Page 7: Operation

    Overload protection To save you worrying about overloading the Caddy Professional 250 it has a thermal cut--out that will trip before the temperature becomes too high. You can tell when the rectifier has been overloaded because the yellow light comes on and it will no longer be possible to weld.
  • Page 8: Fault Tracing

    It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication.
  • Page 9 - - 9 - -...
  • Page 10: Diagram

    Diagram - - 10 - - Edition 060814 bh20e11a...
  • Page 11: Ordering Number

    Professional 250 Ordering number Ordering no. Denomination Type 0457 516 880 Welding power source Professional 250 0457 552 990 Spare parts list Professional 250 - - 11 - - Edition 060814 bh20o11a...
  • Page 12: Spare Parts List

    Professional 250 Spare parts list Item Ordering no. Denomination 0468 462 001 Filter 0467 796 001 Grille Edition 060814 - - 12 - - bh20s11a...
  • Page 13: Accessories

    Professional 250 Accessories Remote control MMA 1 (10 m cable) ..0349 501 024 MMA and TIG: current Remote control unit AT1 ....0459 491 896 MMA and TIG: current Remote control unit AT1 CF .
  • Page 14 - - 14 - -...
  • Page 15 - - 15 - -...
  • Page 16 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
