ESAB Caddy 140 Instruction Manual
Hide thumbs Also See for Caddy 140:

Advertisement

GB
Caddy 140
Caddy 200
LHN 140, LHN 200

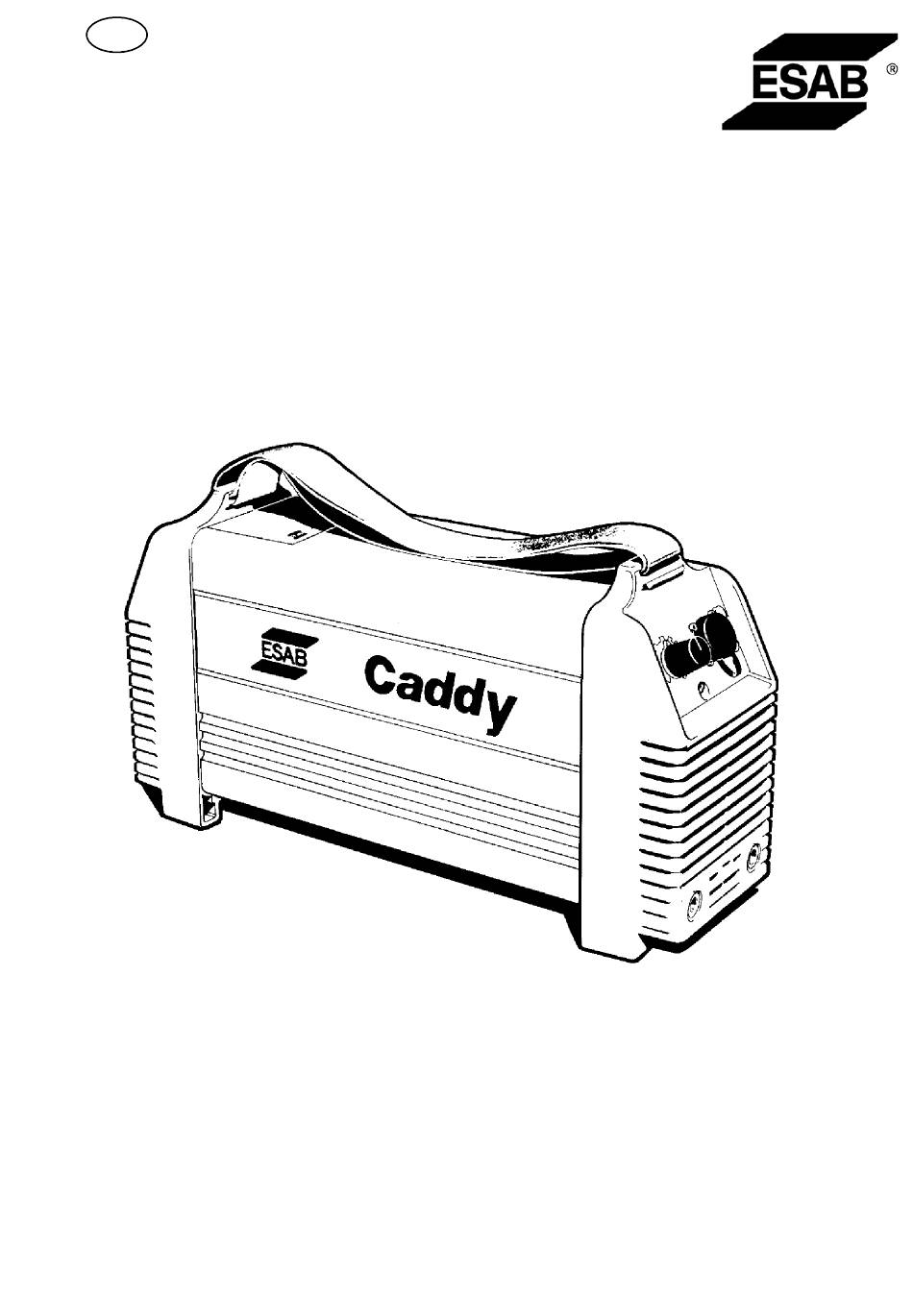

Instruction manual
0468 964 101 GB 041101
Valid for serial no. 628- -xxx- -xxxx, 011- -xxx- -xxxx,
220- -xxx- -xxxx
cmha2p00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caddy 140 and is the answer not in the manual?

Questions and answers

Sebastiaan Moes
March 11, 2025

Mijn temperatuur beveiliging gaat niet meer uit terwijl hij niet oververhit is waar zit deze censor?

2 comments:
Sebastiaan Moes
March 11, 2025

Temperatuur beveiliging gaat niet meer uit waar zit deze ?

Mr. Anderson
May 14, 2025

The temperature sensor in the ESAB Caddy 140 is part of the thermal overload cutout, which normally short-circuits inputs B01 and B02 when not overheated. If the cutout contact opens, it indicates the sensor has detected an over-temperature condition, even if the unit is not actually overheated. Therefore, the temperature sensor is connected to inputs B01 and B02.

This answer is automatically generated

Summary of Contents for ESAB Caddy 140

  • Page 1 Caddy 140 Caddy 200 LHN 140, LHN 200 cmha2p00 Instruction manual 0468 964 101 GB 041101 Valid for serial no. 628- -xxx- -xxxx, 011- -xxx- -xxxx, 220- -xxx- -xxxx...
  • Page 2: Table Of Contents

    1 DIRECTIVE ............2 SAFETY .
  • Page 3: Directive

    DECLARATION OF CONFORMITY Esab Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guaran- tee that welding power source Caddy 140/200 from serial number 628 complies with standard EN 60974--1, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC) and with standard EN 50199 in accordance with the re- quirements of directive (89/336/EEC) and addendum (93/68/EEC).
  • Page 4: Introduction

    INTRODUCTION The Caddy 140 and Caddy 200 are two transistor controlled rectifiers designed for welding with coated electrodes and for TIG welding (touch start). The advanced electronics provide rapid control response, low power demand and excellent welding characteristics. Inverter technology contributes to low weight and compact dimensions of the units.
  • Page 5: Installation

    The 230 V can be used with 230--240 V, 50--60 Hz supplies. To get maximum performance from the Caddy 140 it must be fitted with a 16A slow fuse. A 10A slow fuse is adequate for welding at currents up to 100A.
  • Page 6: Welding With Coated Electrodes

    The Caddy supplies DC current, which allows you to weld most types of alloyed and unalloyed steels, stainless steels and cast iron. With the Caddy 140 you can use the majority of coated electrodes from ∅ 1.6 to ∅ 3.25, while the Caddy 200 will take electrodes up to ∅ 4.0.
  • Page 7: Diagram

    Diagram Caddy 140 - - 7 - - Edition 041101 bh11e11a...
  • Page 8 Caddy 200 - - 8 - - Edition 041101 bh11e11a...
  • Page 9: Ordering Number

    Caddy 140, Caddy 200 Ordering number cmha2p00 Ordering no. Denomination Type 0468 020 800 Welding power source Caddy 140 0468 020 881 Welding power source Caddy 200 0468 964 990 Spare parts list Caddy 140, Caddy 200 - - 9 - -...
  • Page 10: Spare Parts List

    Caddy 140, Caddy 200 Spare parts list Item Ordering no. Denomination 0468 462 001 Filter 0467 796 001 Grill Edition 041101 - - 10 - - bh11s11a...
  • Page 11: Accessories

    Caddy 140, Caddy 200 Accessories Remote control MMA 1 (10 m cable) ..0349 501 024 MMA and TIG: current Remote control unit AT1 ....
