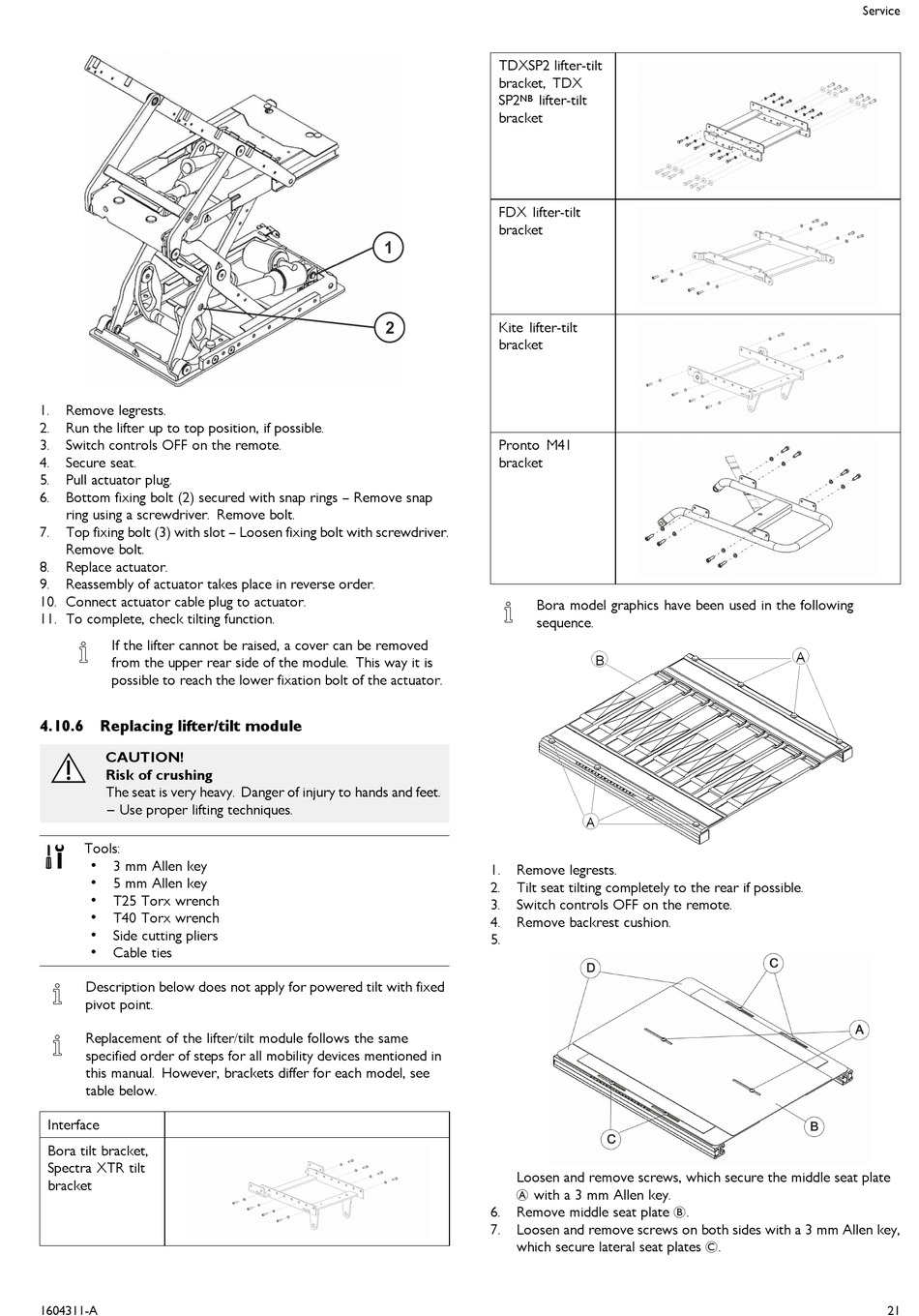

Replacing Lifter/Tilt Module - Invacare Modulite Pronto M41 Service Manual

1. Remove legrests.
2. Run the lifter up to top position, if possible.
3. Switch controls OFF on the remote.
4. Secure seat.
5. Pull actuator plug.
6. Bottom fixing bolt (2) secured with snap rings – Remove snap
ring using a screwdriver. Remove bolt.
7. Top fixing bolt (3) with slot – Loosen fixing bolt with screwdriver.
Remove bolt.
8. Replace actuator.
9. Reassembly of actuator takes place in reverse order.
10. Connect actuator cable plug to actuator.
11. To complete, check tilting function.
If the lifter cannot be raised, a cover can be removed
from the upper rear side of the module. This way it is
possible to reach the lower fixation bolt of the actuator.

4.10.6 Replacing lifter/tilt module

CAUTION!
Risk of crushing
The seat is very heavy. Danger of injury to hands and feet.
– Use proper lifting techniques.
Tools:
•
3 mm Allen key
•
5 mm Allen key
•
T25 Torx wrench
•
T40 Torx wrench
•
Side cutting pliers
•
Cable ties
Description below does not apply for powered tilt with fixed
pivot point.
Replacement of the lifter/tilt module follows the same
specified order of steps for all mobility devices mentioned in
this manual. However, brackets differ for each model, see
table below.
Interface
Bora tilt bracket,
Spectra XTR tilt
bracket
1604311-A
TDXSP2 lifter-tilt
bracket, TDX
SP2 NB lifter-tilt
bracket
FDX lifter-tilt
bracket
Kite lifter-tilt
bracket
Pronto M41
bracket
Bora model graphics have been used in the following
sequence.
1. Remove legrests.
2. Tilt seat tilting completely to the rear if possible.
3. Switch controls OFF on the remote.
4. Remove backrest cushion.
5.
Loosen and remove screws, which secure the middle seat plate
A with a 3 mm Allen key.
6. Remove middle seat plate B.
7. Loosen and remove screws on both sides with a 3 mm Allen key,
which secure lateral seat plates C.
Service
21
