MANUAL, USER TDX SP2

REVISION

Table of Contents

Need help?

Do you have a question about the TDXSP2X-CG and is the answer not in the manual?

Questions and answers

Summary of Contents for Invacare TDXSP2X-CG

Page 1 THIS IS THE PROPERTY OF INVACARE CORP. IT MUST NOT BE TRADED OR REPRODUCED IN ANY MANNER, NOR SHALL IT BE SUBMITTED TO OUTSIDE PARTIES FOR EXAMINATION WITHOUT OUR CONSENT. IT SHALL BE USED ONLY AS A MEANS OF REFERENCE TO DO WORK DESIGNED OR FURNISHED BY US.

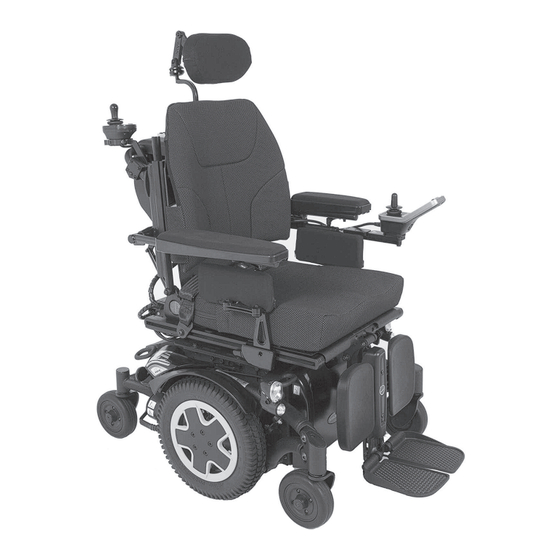

Page 2 Invacare® TDX® SP2 Series TDXSP2, TDXSP2-CG, TDXSP2X-CG, TDXSP2-MCG, TDXSP2X-MCG Power Wheelchair Base User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
Page 3: Table Of Contents
All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
Page 4 10.2 Setup/Delivery Inspection 10.3 Service Inspection 10.3.1 Six Month Inspection 10.3.2 Replace Every 18 Months 10.3.3 Replace Every 2 Years 10.4 Removing/Installing the Shrouds 10.4.1 Removing/Installing the Rear Shroud Removing the Rear Shroud Installing the Rear Shroud 10.4.2 Removing/Installing the Front Shroud 10.5 Battery Service 10.5.1 General Instructions on Handling the Batteries...
Page 5: General
You can find the latest version as a pdf Recycle this product. Refer to the Disposal on the Invacare website (see back page of this and Recycling sections. manual). If you find that the font size in the print...
Page 6: Safety
Invacare accessories. Unapproved -ALWAYS check the battery charge level accessories have not been tested by Invacare before using the wheelchair. for use with Invacare products. -Before using the power wheelchair, charge -DO NOT use unapproved accessories.
Page 7: Safety Information On Using The Seating
To avoid injury or damage: mouthpiece, breath tube and saliva trap. -Only use the power wheelchair in the Contact your Invacare provider for more operating conditions specified in the information about maintaining and Technical Data chapter of this manual.
Page 8 Invacare® TDX® SP2 Series WARNING! WARNING! -This seating system has been custom Risk of Tipping (Continued) The power wheelchair may tip over when you designed and will be assembled to the change its stability characteristics by changing wheelchair base before delivery to the user.
Page 9: Pinch Points
Fig. 2-2 Pinch Points — Center Mount Front Rigging death, physical injury or property damage. If 2.3 Footplates and Front Rigging such devices are used, Invacare shall not be liable and the limited warranty is void. WARNING! -Specific actuator controls are noted for each...
Page 10: Electromagnetic Compatibility (Emc) Information
EMI (Note: There is no easy way to evaluate their effect on the overall immunity of the mobility device); and -Report all incidents of unintended movement or brake release to Invacare and note whether there is a source of EMI nearby.
Page 11: Powered Wheelchair Electromagnetic Emissions
To avoid impacting the operation and function of other products: -Products not specified by Invacare that may be used on or near the mobility device may be impacted by emissions from this product if they have a sensitivity level that is lower than the recognized standard and provided by this mobility device.
Page 12: Components
Information regarding operation of the 4 Components elevating seat at temperatures of less than 0°C 4.1 Component Overview Invacare mobility devices are equipped with safety mechanisms that prevent capacity overload of the electronic components. At operating temperatures below freezing point this...
Page 13 Invacare® TDX® SP2 Series All Wheelchairs ITEM PART NUMBER DESCRIPTION 1190611 Fig. 4-2 Serial Number Label 1167422 Fig. 4-3 *Controller Label 1035900 Fig. 4-4 Transportation Label 1111028 Fig. 4-5 Weight Capacity Label—Non-Elevate 60101839 Fig. 4-6 Weight Capacity Label—Elevate 1167424 Fig. 4-7 Replacing...
Page 14 Invacare® TDX® SP2 Series 1114826 1098362 Fig. 4-11 Positive Battery Wire Label 1098363 Fig. 4-12 Negative Battery Wire Label Fig. 4-9 **22NF Battery Wiring Diagram Label 1114825 1195676 Fig. 4-13 Contact/Consult Manual Label 1195057 Fig. 4-14 Patent Label 1195679 Fig. 4-15 Driving Surfaces Label * Label located under the controller.
Page 15 Invacare® TDX® SP2 Series Wheelchairs with the Transport Ready Option On ALL Positioning Belts Fig. 4-19 ITEM PART DESCRIPTION NUMBER Fig. 4-16 All Wheelchairs with the Transport Ready 1195716 Option Fig. 4-20 ISO 7176–19 Non- Compliance Label Fig. 4-17 Wheelchairs with Elevate and the Transport...
Page 16: Symbols On The Labels
Invacare® TDX® SP2 Series Wheelchairs with Transport Brackets (TRBKTS) Symbol Description Read Manual Symbol is on a BLUE mandatory action background. Battery Type and Terminal Polarity Symbol Use GP24 batteries with terminal polarity of Negative on the left and Positive on the right.
Page 17: Setup
Invacare® TDX® SP2 Series 5 Setup 5.1 Setup/Delivery Inspection Information Setup/delivery inspection should be performed by provider at time of delivery/setup. PROVIDERS — Refer to 10.2 Setup/Delivery Inspection, page 41 for a setup/delivery inspection checklist. Initial adjustments should be made to suit your personal body structure needs and preference. Thereafter weekly, monthly and periodic inspections should be performed by user/attendant between the six month service inspections.
Page 18: Adjusting Joystick On The Joystick Mount
Invacare® TDX® SP2 Series 5.2.3 Adjusting Joystick on the Joystick Mount Fig. 5-3 1. Loosen screw A. 2. Position joystick on holder. 3. Tighten screw. With one turn of the screw, the joystick can be rotated in a complete 360 degree radius. There is a slot on the side that will allow you to angle the joystick at 90 degrees.
Page 19: Usage
Discuss the impact with daily living activities that may differ from those on your ability to operate the wheelchair with described in this manual. Invacare recognizes and a health care professional when changing encourages each individual to try what works best for medications.
Page 20: A Note To Wheelchair Attendants
-Ensure your wheelchair is working properly weight distribution of the wheelchair and is inspected by a qualified Invacare causing injury or damage. technician if the wheelchair is involved in a -Determine and establish your particular collision or impact event.
Page 21: Stability And Balance
This power wheelchair has Invacare’s SureStep® technology, a feature that provides the Follow this procedure for moving the wheelchair with optimum traction and stability...
Page 22: Driving Surfaces
Invacare® TDX® SP2 Series 6.2.1 Driving Surfaces CAUTION! Risk of Injury or Damage WARNING! The wheelchair may tip over if obstacles are Risk of Injury, Damage or Death not approached correctly. Loss of traction or stability on rough or -Always approach obstacles straight on. Never...
Page 23: Negotiating Inclines
Invacare® TDX® SP2 Series Descending (Going Down) Obstacles 6.2.4 Negotiating Inclines The approach to descend an obstacle is the same as to Acceptable Incline Avoid Inclines of 10° and ascend it, with the difference that you do not need to...
Page 24: Reaching, Leaning And Bending - Forward
Invacare® TDX® SP2 Series 6.2.6 Reaching, Leaning and Bending - Backward WARNING! Risk of Injury, Damage or Death Loss of traction or stability on inclines/grades or ramps may cause injury, damage or death. Lighter weight users may be at an increased risk.
Page 25: Weight Training And Other Activities
WARNING! WARNING! Risk of Injury or Damage Risk of Injury or Damage Invacare DOES NOT recommend the use of its Misuse of motor locks may result in wheelchairs as a weight training apparatus. injury or damage. Invacare wheelchairs have NOT been designed...
Page 26: Disengaging/Engaging The Wheel Locks
Wheel locks are not brakes. -DO NOT use the wheel locks (if equipped) when the wheelchair power is on. Invacare recommends the use of wheel locks. Fig. 6-11 Use the wheel locks to hold the wheelchair in place whenever the clutches are disengaged.
Page 27: Controls System
DO NOT, under any circumstances, only after checking the entire controls cut or remove the round grounding prong from any plug used with or for Invacare system. A specialized Invacare provider products. In addition, Invacare has placed RED must perform the replacement. You can warning tags on some equipment.
Page 28: General Instructions On Charging
Unplug week to make sure that both batteries and discontinue use immediately. Contact are fully charged. a qualified service technician or Invacare Do not cycle your batteries at a low state of for service. charge without regularly recharging them fully.
Page 29: How To Disconnect The Mobility Device After
How to Disconnect the Mobility Device contained in this manual are based on the use After Charging of deep cycle gel cell batteries. Invacare 1. Once charging is complete, disconnect the battery strongly recommends their use as the power charger from the power supply.
Page 30: Instructions On Using The Batteries
Invacare® TDX® SP2 Series Pay attention to the Battery Charge Indicator! FOR WHEELCHAIRS USING 22NF BATTERIES Charge the batteries when the Battery Charge Batteries with terminal configuration (POSITIVE A on Indicator shows that battery charge is low. the left and NEGATIVE Bon the right) as shown How fast the batteries discharge depends on below MUST be used.
Page 31: Transporting Batteries
Invacare® TDX® SP2 Series and orange LED are off. This should be done within one day. A 16-hour charge afterward is necessary as reconditioning. 7.3.8 Transporting Batteries The batteries supplied with your mobility device are not hazardous goods. This classification is based on the...
Page 32: Transport - Iso 7176-19
As of this date, governmental regulatory authorities made available by the auto industry. Invacare cannot in many countries may not have approved any tie- and does not recommend any wheelchair down systems for transportation of a user while in a transportation system.
Page 33: Transport-General Information
Invacare® TDX® SP2 Series 8.3 Transport—General information WARNING! Risk of injury and damage to the WARNING! mobility device Risk of Injury, Damage or Death If the mobility device is to be transferred to a Alteration or substitution may result in injury, vehicle via a lift, when the remote is turned damage or death.
Page 34: How The Mobility Device Is Anchored In A Vehicle
It is imperative that the mobility device is inspected by CAUTION! There is a risk of injury if the mobility device an Invacare provider before being used again after is not properly secured during use as a being involved in a crash. Alterations to the mobility vehicle seat.
Page 35: How The User Is Secured Within The Mobility Device
Risk of injury -If you are unable to fasten your mobility device securely in a transport vehicle, Invacare recommends that you do not transport it. The mobility device should be properly secured to the vehicle when transporting the device by road, rail, or by air in accordance with transportation company guidelines.
Page 36: Use Of Transportation Docking Stations
Please refer to the instructions for proper use provided by the docking system manufacturer. CAUTION! Risk of injury Invacare has not tested this power wheelchair for compatibility or use with any transportation docking system. The docking system manufacturer is solely responsible for...
Page 37: Maintenance
Regular cleaning will reveal loose or worn parts overlays and inductive rubberized protective boots. and enhance the smooth operation of your Invacare reserves the right to ask for any item back wheelchair. To operate properly and safely, that has an alleged defect in workmanship. Refer to...
Page 38: Service Inspection Information
Invacare® TDX® SP2 Series Inspect all operator (user/attendant) CAUTION! Risk of Damage adjustable fasteners including the back pan, Cleaning or maintenance may cause damage back cane and angle adjustment fasteners, and to carpeting or flooring. the arm support, flip back and height -Place the wheelchair in a well-ventilated area adjustment fasteners.
Page 39: Stability Lock
Invacare® TDX® SP2 Series 9.5 Stability Lock DANGER! Risk of Death or Serious Injury Not performing periodic maintenance on stability lock could result in death or serious injury. -ALWAYS perform the periodic maintenance to the stability lock listed in the inspection checklist of this manual.
Page 40 Invacare® TDX® SP2 Series For recommended tire pressure, see the inscription on the tire or rim or contact Invacare. Use the table below for conversions. 60101831-I...
Page 41: Service
WARNING! specifications. Stop using the wheelchair, and Risk of Serious Injury contact Invacare, if wheelchair still does not Hot surfaces can cause severe burns. perform to correct specifications. -Be mindful of potential hot surfaces and avoid touching.
Page 42: Repair And Service Information - Providers
-Keep the product away from sparks, flame, injury, damage or death. and open heat sources. -Transport ready packages are not -Contact your provider or Invacare for repair. retrofittable to existing models and are not DANGER! field serviceable. Risk of Death, Serious Injury, or Damage -DO NOT overtighten hardware.
Page 43: Service Inspection
Invacare® TDX® SP2 Series Ensure caster/anti-tipper wheels are free of 10.3.1 Six Month Inspection debris, and all mounting hardware is secure DANGER! and not damaged/missing. Risk of Death, Serious Injury, or Damage Failure to complete the inspection of the Check that cables are routed and secured...
Page 44: Replace Every 18 Months
Invacare® TDX® SP2 Series Inspect battery terminals for loose cable 10.4.1 Removing/Installing the Rear Shroud connection. Tighten if necessary. Ensure swingarm stops are in place and not deteriorated or damaged. Replace if necessary. Clean upholstery and armrests. Clean dirt and lint from axles.
Page 45 Invacare® TDX® SP2 Series Removing the Front Shroud 1. Remove the front riggings. Fig. 10-3 Removing the Front Shroud and Battery Door There are two types of front shrouds H: Power wheelchairs with 5° or 10° fixed anterior assist—The front shroud and recessed battery door I are separate, but secured with the same hardware.
Page 46: Battery Service
Invacare® TDX® SP2 Series 2. Secure the front shroud H and battery door (if Disposing of Dead or Damaged Batteries Dead or damaged batteries must be disposed of present) to the battery box with two knobs D. properly. Refer to 10.5.8 Recycling Batteries, page 51 Securely tighten.
Page 47: Removing The Batteries From The Wheelchair
Invacare® TDX® SP2 Series Invacare strongly recommends battery 1. Place the wheelchair in a well-ventilated area. installation and replacement be performed by 2. Remove the front riggings: a qualified technician. Read the installation instructions noted on the battery and in the manual.
Page 48: Installing Batteries Into The Wheelchair
Invacare® TDX® SP2 Series 6. Remove the hardware securing the battery 7. Slide battery tray with batteries out. tray to the frame: Wheelchairs with 5° or 10° Fixed Anterior Assist: Remove the four mounting screws D securing the battery tray I to the frame H.
Page 49 Invacare® TDX® SP2 Series Fig. 10-7 Wheelchairs with 5° or 10° Fixed Anterior 5. Secure the battery tray to the wheelchair Assist frame H: Wheelchairs with 5° or 10° Fixed Anterior Assist — Install the four mounting screws D securing the battery tray I to the frame H.
Page 50: Replacing Batteries And/Or Battery Cables
Invacare® TDX® SP2 Series 10.5.6 Replacing Batteries and/or Battery Cables 7/16-inch (6 pt) box wrench 3/8-inch box wrench 1/2-inch box wrench Diagonal cutters Batteries Fig. 10-10 Installing the Battery Tray Stop Bracket Fig. 10-11 Installing the Battery Tray 6. Connect the controller to the controller connector A on the battery at the rear of the wheelchair.
Page 51 Invacare® TDX® SP2 Series Batteries Batteries Front Battery WARNING! Risk of Death or Serious Injury Failure to observe these warnings can cause an electrical short resulting in death, serious injury, or damage to the electrical system. -The POSITIVE (+) RED battery cable MUST connect to the POSITIVE (+) battery terminal (s)/post(s).
Page 52: Cleaning Battery Terminals
Discarding these batteries in the trash is considered “improper disposal” and is illegal in most states. Old, used batteries are “hazardous material” and MUST be recycled through an approved agency. Contact your provider or Invacare on proper disposal and recycling of your batteries. 60101831-I...
Page 53: After Use
Discarding these batteries in the trash is considered improper disposal and is unlawful in many locations. Contact your provider or Invacare for proper disposal and recycling of your batteries. Disposal must be carried out in accordance with the respective national legal provisions.
Page 54: Troubleshooting
- too soon after being recharged. charged. Weak batteries. Replacing Batteries and/or Battery Cables, page Motor/gearbox Stop use of Wheelchair. Contact Provider/Invacare Motor “chatters” or runs irregular. malfunction. for Service. Joystick erratic or does not respond as Damaged motor Contact Provider/Invacare for Service.
Page 55: Battery And Charger Tips
Invacare® TDX® SP2 Series 12.2.1 Battery and Charger Tips The following “Do’s” and “Don’ts” are provided for your convenience and safety. DON’T Read and understand this manual and any service information Don’t perform any installation or maintenance that accompanies a battery and charger before operating the without first reading this manual.
Page 56: Technical Data
Invacare® TDX® SP2 Series 13 Technical Data 13.1 Technical Specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories.
Page 57 Invacare® TDX® SP2 Series Black with rim inserts, 14 x 3” Black tires with gel foam inserts or pneumatic tires The recommended maximum tire pressure in bar Drive wheels or kpa is marked on the side wall of the tire or the rim.
Page 58 Invacare® TDX® SP2 Series Dimensions According to ISO 7176–15 Ground clearance > 2.5 in (70 mm) Horizontal location of axle 8.66-4.72 in (350 – 280 mm) Weight Base weight without 22NFbatteries 152 lb (69 kg) Base weight without GP24 batteries...
Page 59: Iso 7176-15 Annex A
Horizontal distance of wheel axle from intersection of loaded seat and backrest reference planes The actual curb weight depends on the options and accessories your mobility device has been supplied with. Every Invacare mobility device is weighed when leaving the factory. Refer to the invoice for the curb weight (including batteries) measured.
Page 60 Invacare® TDX® SP2 Series TDX-SP2 Disclosure Information (ISO) Minimum Maximum Front location of armrest structure 10 in (254 mm) 23 in (590 mm) Handrim diameter N/A** N/A** Horizontal location of axle 7 in (178 mm) 8.5 in (216 mm) Minimum turning radius...
Page 61: Warranty
Except as otherwise set forth below, Invacare warrants the base frame of the mobility device (“product”) will be free from defects in materials and workmanship for a period of five (5) years from the date Invacare ships the product to the original purchaser or provider. Invacare warrants that the seat frame and fixed seat post will be free from defects in materials and workmanship for a period of three (3) years from the date Invacare ships the product to the original purchaser or provider.
Page 62: Disclaimers
14.5 Disclaimers The Warranty may not be modified or waived in any manner whatsoever without Invacare's express written authorization. THE WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Page 63 Invacare® TDX® SP2 Series Notes 60101831-I...
Page 64 Invacare® TDX® SP2 Series Notes 60101831-I...
Page 65 Invacare Corporation One Invacare Way, Elyria, OH 44035 • 800-333-6900 • www.invacare.com Canada 570 Matheson Blvd E Unit 8, Mississauga, Ontario, L4Z 4G4 • 800-668-5324 • www.invacare.ca Manufacturer Invacare Corporation • One Invacare Way • Elyria, OH 44035, USA Making...

This manual is also suitable for:

Tdxsp2 Tdxsp2-cg Tdx sp2 series Tdxsp2-mcg Tdxsp2x-mcg
