Invacare® Modulite
Example Bora

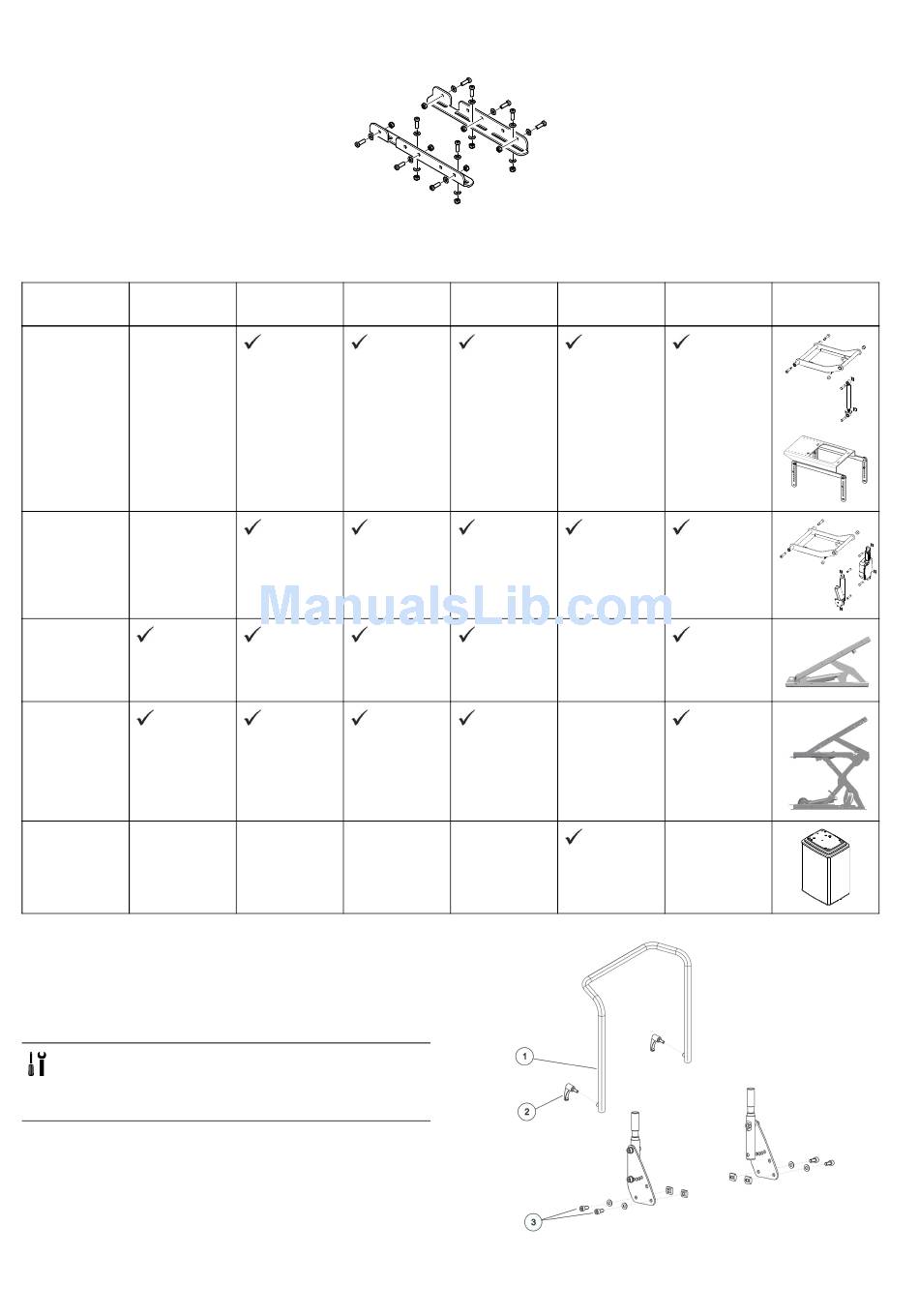

4.2.7 Overview seat interfaces

Modulite seat is available for different seat interfaces depending on the model of the mobility device.
Pronto M41
Fixed, manual
adjustable or
settable angle
Powered tilt,
fixed pivot
point
Powered tilt
with center of
gravity shift
Lifter with
powered tilt
and center of
gravity shift
Column lifter

4.3 Replacing backrest

For backrest styles, see 4.2.2 Backrest styles, page 7 .

4.3.1 Replacing standard backrest

Tools:
•
5 mm Allen key
•
10 mm wrench
•
13 mm wrench
Removing backrest unit
1. Remove backrest cushion
2. Loosen fixation lever (2) of backrest tube.
3. Remove backrest tube.
4. Use Allen key to loosen and remove screws (3) including nuts
and washers on the left and right side.
10
Bora/ Kite Series
SpectraXTR
TDX SP2 Storm4
Series Series
FDX Example
1604311-A
