This manual MUST be given to the user of the product.
BEFORE using this product, this manual MUST be read and saved for
future reference.

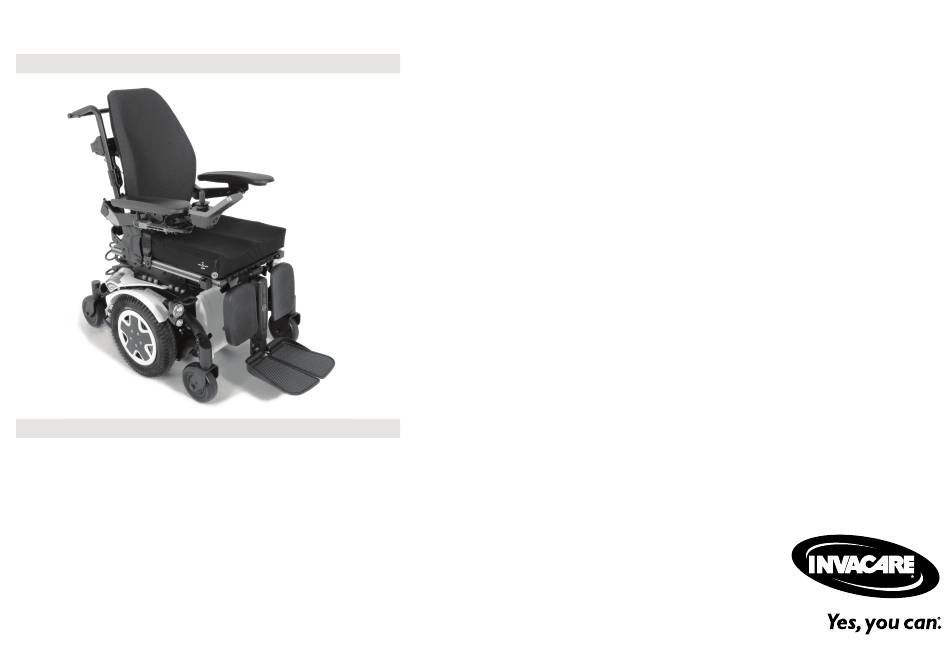

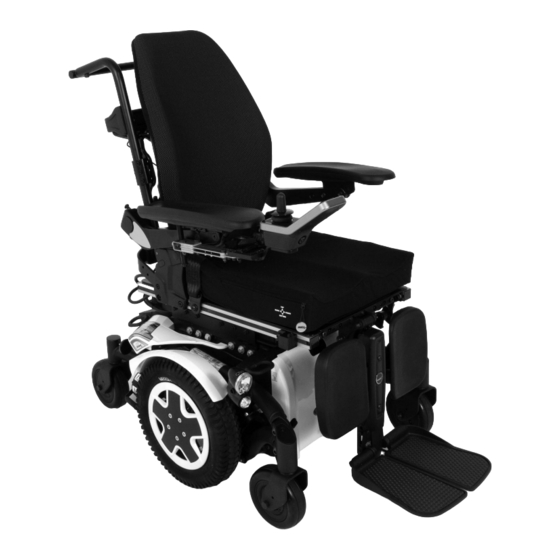

Invacare® TDX® SP2 Series
en Power Wheelchair
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDX SP2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Invacare TDX SP2 Series

Summary of Contents for Invacare TDX SP2 Series

  • Page 1 Invacare® TDX® SP2 Series en Power Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
  • Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    Contents 4.2 Using Cane Holder ......28 5 Setup ......... . . 30 5.1 General Setup Information.
  • Page 4 5.11 Center-mounted legrests — manually adjustable ..48 5.15.5 Adjusting the height of the calf pad ... . . 64 5.11.1 Removing the legrest ......48 5.15.6 Unlocking and swivelling the calf pad backward 5.11.2 Setting the angle of the leg rest .
  • Page 5 6.5.3 Safety Information When Taking Obstacles ..75 9.6 Cleaning and Disinfection ......100 6.5.4 Correct Way to Take Obstacles .

  • Page 6: General

    Invacare® TDX® SP2 Series For more information about the product, for example 1 General product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this 1.1 Introduction document. This user manual contains important information about the In case of a serious incident with the product, you should handling of the product.

  • Page 7: Compliance

    (Not applicable for all manuals) For further information about local standards and UK Responsible Person regulations, contact your local Invacare distributor. See Indicates if a product is not manufactured in addresses at the end of this document. the UK.

  • Page 8: Warranty Information

    1.7 Limitation of Liability • damage to the postural belt • damage to the joystick (joystick cannot be moved into Invacare accepts no liability for damage arising from: the neutral position) • cables that are damaged, kinked, pinched or have come •...

  • Page 9: Safety

    Safety 2 Safety WARNING! Risk of Injury, Damage or Death Improper monitoring or maintenance may cause 2.1 General Safety Notes injury, damage or death due to ingestion or choking on parts or materials. WARNING! – Closely supervise children, pets, or people with Risk of Serious Injury or Damage physical/mental disabilities.
  • Page 10 Invacare® TDX® SP2 Series WARNING! WARNING! Risk of injury if the mobility device is driven Risk of injury if the mobility device is switched when ability to operate a vehicle is impaired by off while driving, for example by pressing the...

  • Page 11: Safety Information On The Electrical System

    CAUTION! mobility device that are not expressly certified Risk of injury due to wrong lifting or dropping by Invacare for this purpose. Have all electrical of heavy components installations done by your authorized Invacare – When maintaining, servicing or lifting any part provider.
  • Page 12 Invacare® TDX® SP2 Series WARNING! WARNING! Risk of death or serious injury Risk of death, serious injury, or damage Electric shock can cause death or serious injury Corroded electrical components due to water or – To avoid electric shock, inspect plug and cord liquid exposure can result in death, serious injury, for cuts and/or frayed wires.

  • Page 13: Safety Information On Electromagnetic Interference

    Safety 2.3 Safety Information on Electromagnetic WARNING! Interference Risk of injury or damage due to electrical shorts Connector pins on cables connected to the power This powered mobility device was successfully tested in module can still be live even when the system accordance with International standards as to its compliance is off.

  • Page 14: Safety Information On Driving And Freewheel Mode

    Invacare® TDX® SP2 Series 2.4 Safety Information on Driving and Freewheel WARNING! Mode Risk of malfunction due to electromagnetic interference DANGER! – Do not switch on or operate portable Risk of death, serious injury, or damage transceivers or communication devices (such as...
  • Page 15 Safety WARNING! WARNING! Risk of breaking down in adverse weather Risk of injury if the mobility device tips over conditions, i.e. extreme cold, in an isolated area (continued) – If you are a user with severely limited mobility, – Never attempt to drive up or down a flight of we advise that in the case of adverse weather steps with your mobility device.

  • Page 16: Safety Information With Regard To Care And Maintenance

    Invacare® TDX® SP2 Series WARNING! WARNING! Risk of injury if you collide with an obstacle Risk of tipping when driving through narrow passages such as Antitippers (stabilizers) are only effective on firm doorways and entrances ground. They sink in on soft ground such as –...

  • Page 17: Safety Information Regarding Changes And Modifications To The Mobility Device

    Seating systems, additions and accessory parts for ensuring that it is in an operationally reliable which have not been approved by Invacare for condition. Inadequate or neglected care and use with this mobility device can affect the maintenance of the mobility device will result tipping stability and increase tipping hazards.
  • Page 18 Electrical and electronic components which have front antitippers being re-adjusted not been approved by Invacare for use with this – When the hardness of the suspension is mobility device can cause fire hazards and lead adjusted, the immobilization mechanism of the to electromagnetic damage.

  • Page 19: Safety Information On Wheelchairs With A Lifter

    Safety Important information about maintenance work CAUTION! tools Risk of malfunction of the lifter module – Some maintenance work which is described in – Inspect the lifter module at regular intervals this manual and can be carried out by the user to make sure there are no foreign objects or without problems require the correct tools for visible damage, and to make sure the electric...
  • Page 20 Invacare® TDX® SP2 Series CAUTION! Risk of injury if the wheelchair tips over – Never exceed the maximum permissible load (see chapter 11 Technical Data, page104 ). – Avoid dangerous driving situations when the lifter is in a raised position, such as trying to overcome obstacles like curbs or driving up or down steep gradients.

  • Page 21: Product Overview

    Product Overview is therefore compact and agile enough for indoor areas, but 3 Product Overview also able to overcome many obstacles in outdoor areas. 3.1 Intended Use 3.3 Labels on Product 3.1.1 Intended User This mobility device was designed for adults and adolescents whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric mobility device.
  • Page 22 Invacare® TDX® SP2 Series If the mobility device If the symbol appears on is fitted with a tray, a bright yellow sticker, the it is imperative that it anchoring point is suitable is removed and safely for fixation of the mobility...
  • Page 23 Product Overview Warning that the mobility Indication of pinch points device may not be used that could occur on the as a vehicle seat mobility device. This mobility device The color of does not satisfy the symbol the requirements of background is ISO 7176-19.
  • Page 24 Invacare® TDX® SP2 Series Medical device Do not lean out when the lifter is raised! Serial number Do not drive up or down slopes when the lifter is raised! WEEE Conformity Do not allow any body parts to get under a...

  • Page 25: Main Parts Of Wheelchair

    Product Overview 3.4 Main Parts of Wheelchair This symbol indicates the “Push” position of the coupling lever. In this position the motor is disengaged and the motor brakes are not operational. The mobility device can be pushed by an attendant and the wheels turn freely.

  • Page 26: User Inputs

    0 °C mobility device. • Invacare mobility devices are fitted with safety • To reapply normal speed, lower the lifter down mechanisms that prevent capacity overload until the forced profile or the speed reduction of the electronic components.

  • Page 27: Accessories / Options

    Accessories / Options Belt can be adjusted on both sides. This means that the 4 Accessories / Options buckle can be centrally positioned. Belt with plastic buckle, adjustable both sides 4.1 Posture Belts A posture belt is an option which can either be fixed to the mobility device ex-works or can be retrofitted by your specialist provider.

  • Page 28: Adjusting Posture Belt Correctly

    Invacare® TDX® SP2 Series Harness with metal buckle, adjustable on both sides 3. Adjust belt length using one of adjustment aids described above. The belt should be adjusted so that you can fit a flat hand between belt and your body.
  • Page 29 Accessories / Options 1. Open upper hook-and-loop fastener. 2. Place lower end of the walking cane or crutches in container at bottom. 3. Walking cane or crutches can be secured at upper end using hook-and-loop fastener. 1578997-N...

  • Page 30: Setup

    Off and re-enter set-up specifications. physical requirements and the condition of the Contact Invacare, if mobility device still does user. It is possible that collisions or pinch points not perform to correct specifications.

  • Page 31: Imperial To Metric Conversion Chart

    6.3500 6.7469 17/64 Footplates 7.1438 9/32 All footplates offered by Invacare can be folded upwards. 7.5406 19/64 5.2 Imperial to metric conversion chart 7.9375 5/16 You can use this chart as an orientation to find the right 8.3344 21/64 tool size.

  • Page 32: Seating Systems (Modulite/Ultra Low Maxx)

    Invacare® TDX® SP2 Series IMPERIAL METRIC IMPERIAL METRIC inch inch 9.5250 17.0656 43/64 9.9219 17.4625 25/64 11/16 10.3188 17.8594 13/32 45/64 10.7156 18.2563 27/64 23/32 11.1125 18.6531 7/16 47/64 11.5094 19.0500 29/64 11.9063 19.4469 15/32 49/64 12.3031 19.8438 31/64 25/32 12.7000...

  • Page 33: Adjusting Seat Angle - Manually Settable Tilt

    Setup 5.4 Armrests 5.3.2 Adjusting Seat Angle — Manually Settable Tilt 5.4.1 Changing the armrest position CAUTION! Adjusting the seat tilt or the backrest angle Tools: changes the geometry of the mobility device • 6 mm Allen key and directly influences its dynamic stability! –...

  • Page 34: Adjusting The Width Of The Armrests

    Invacare® TDX® SP2 Series 1. Loosen the screws (1). 2. Adjust the armrest to the desired width. 3. Retighten the screw. 4. Repeat this procedure for the second armrest. 5.5 Adjusting the seat depth CAUTION! Risk of damage to the power wheelchair if the sideways and central seat depth adjustment is 1.

  • Page 35: Adjusting Backrest

    Setup 5.6 Adjusting Backrest CAUTION! Adjusting the seat tilt or the backrest angle changes the geometry of the mobility device and directly influences its dynamic stability! – For details regarding dynamic stability, negotiating gradients and obstacles and the correct adjustment of seat tilt or backrest angle, refer to 6.5 Taking Obstacles, page 74 and 6.6 Driving up and down Gradients, page 76.

  • Page 36: Adjusting Tension Adjustable Backrest Upholstery

    Invacare® TDX® SP2 Series 5.6.2 Adjusting Tension Adjustable Backrest Upholstery Remove the saving and the bolt (1). 4. Flip the backrest forward. Fig. 5-2 5. Loosen the knurled nut (2). 6. With the spindle, adjust the desired angle of the Remove backrest cushion (attached with hook–and–loop...

  • Page 37: Adjusting The Backrest Bend

    Setup 5.6.3 Adjusting the backrest bend Loosen the handwheels A and raise the push handles as far as possible. Figure 1 The backrest is designed with different angles as shown in figure 1. This allows for different adjustments according to how the backrest is mounted.
  • Page 38 Invacare® TDX® SP2 Series Loosen the screws B and remove the backrest by lifting Put the backrest back by fitting it to the receivers on upwards. the tubes. Tighten the screws. Turn the backrest 180°. 1578997-N...

  • Page 39: Adjustment Possibility For Remote

    Setup CAUTION! Risk of the remote being pushed backwards during an accidental collision with an obstacle, such as a doorframe or table, and the joystick being jammed against the armpad if the position of the remote is adjusted and all screws are not completely tightened This will cause the mobility device to drive forward uncontrollably and potentially injure the...

  • Page 40: Adjusting Remote For Length Of User's Arm

    Invacare® TDX® SP2 Series 5.7.1 Adjusting Remote for Length of User's Arm • 6 mm Allen key Fig. 5-6 Fig. 5-4 1. Loosen screw A. 2. Adjust component to desired position. 1. Loosen wing screw A. 3. Tighten screw. 2. Adjust component to desired position.

  • Page 41: Adjusting Remote Position

    Setup 5.7.5 Adjusting Remote Position • 3 mm Allen key Fig. 5-8 1. Loosen screws A. Fig. 5-10 2. Adjust component to desired position. 1. Loosen screws A. 3. Tighten screws. 2. Adjust component to desired position. Swing In/Out Remote Holder 3.

  • Page 42: Adjustment Possibilities For Nucleus Midline Holder

    Invacare® TDX® SP2 Series 5.8 Adjustment Possibilities for Nucleus Midline Swing-Away Remote Holder Holder WARNING! Risk of Injury or Death Loose small parts can lead to choking hazard that may result in injury or death. – Do not remove any small parts except to replace the joystick knob.

  • Page 43: Adjusting Height Of Nucleus Midline Holder

    Setup 1. Loosen lever A. 2. Shift midline holder to desired position. 3. Tighten lever. 5.8.2 Adjusting Height of Nucleus Midline Holder You can adjust the height of the nucleus midline holder in Fig. 5-14 Example of DLX-REM400 adjustment. DLX-REM110, two ways: DLX-REM211 and DLX-REM216 are adjusted the same way.
  • Page 44 Invacare® TDX® SP2 Series • 4 mm Allen key • 8 mm wrench Fig. 5-18 Fig. 5-16 1. Loosen screw A (not shown in picture). 1. Loosen screw A. 2. Rotate remote in clamp to desired position. 2. Position display on nucleus.

  • Page 45: Adjusting Rea Headrest

    – A headrest must be installed. The headrest 1. Loosen screw A. optionally supplied for this mobility device by 2. Position joystick on nucleus. Invacare is perfectly suitable for use during 3. Tighten screw. transport. – The headrest must be adjusted to the user's ear height.

  • Page 46: Adjusting Position Of Rea Headrest Or Neckrest

    Invacare® TDX® SP2 Series 1. Loosen the screws A , B or the clamping lever C. 2. Adjust the headrest or neckrest to the required position. 3. Retighten screws and clamping lever. 4. Loosen the Allen screw D. 5. Slide the headrest left or right to the required position.

  • Page 47: Adjusting Cheek Supports

    Setup 5.10 Adjusting/Removing Tray 5.9.3 Adjusting Cheek Supports WARNING! Risk of Injury or Damage If the mobility device is fitted with a tray or other auxiliary equipment this could break free during transfer to a vehicle and cause damage or injury to users in the event of a collision.

  • Page 48: Adjusting Depth Of Tray/Removing Tray

    Invacare® TDX® SP2 Series 1. Loosen wing screw (1). CAUTION! 2. Adjust component to desired position. Risk of injury! When the tray is raised it does 3. Tighten wing screw. not lock in place in this position! – Do not tilt the tray up and leave it leaning in 5.10.2 Adjusting Depth of Tray/Removing Tray...

  • Page 49: Setting The Angle Of The Leg Rest

    Setup 1. Hold the leg rest securely. 2. Pull the lever (1). 3. Push the leg rest into the required position. Remove removable axle (1). 5.11.3 Setting Length of Legrest • 3/16 inch Allen key You can adjust the length of the legrests independently of one another.

  • Page 50: Setting Angle Of Foot Plate

    5/32 inch Allen key 5.12 LNX legrest 5.12.1 Setting the length of the legrest If needed, the legrest can be pre-set to 83° or 97° instead of 90°. Contact your Invacare provider. • 4 mm Allen key • 10 mm open-ended wrench Fig.

  • Page 51: Setting Angle Of Foot Plate

    Setup 1. Remove screws A at the front of legrest. 2. Remove cover together with calf pads. 3. Loosen nuts B at the side of legrest. It may be necessary to remove the nuts and move them from one slot to the other. 4.

  • Page 52: Setting Height And Width Of Calf Pad

    Invacare® TDX® SP2 Series 5.12.4 Setting Height and Width of Calf Pad 1. Fold the calf pad forward in order to access the bolts. 2. Loosen the bolts and remove them if necessary. Risk of damage to the mobility device 3.

  • Page 53: Setting The Angle

    Setup 5.13.2 Setting the angle CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground. •...
  • Page 54 Invacare® TDX® SP2 Series Fig. 5-30 The end position of the footrest is determined by means of a rubber stop (1). Fig. 5-32 Use the Allen key to loosen the screw (1) and swivel the footrest upward in order to access the rubber stop.

  • Page 55: Adjusting The Length Of The Legrest

    Setup 5.13.4 Adjusting the length of the legrest CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground. •...

  • Page 56: Vari-A Legrests

    Invacare® TDX® SP2 Series 5.14 Vari-A legrests 5.14.2 Setting the angle 5.14.1 Swivelling the footrest/legrest outward and/or CAUTION! removing Risk of injury due to incorrect adjustment of the footrests and legrests The small unlocking button is located on the upper section of –...

  • Page 57: Setting The End Stop Of The Legrest

    Setup Set the desired angle. Loosen the locking knob (1) counter-clockwise at least one turn. Turn the knob clockwise to tighten it. 5.14.3 Setting the end stop of the legrest • 10 mm wrench Hit the knob to release the locking mechanism. 1578997-N...
  • Page 58 Invacare® TDX® SP2 Series The end position of the legrest is determined by means of a rubber stop (1). Loosen the locking knob (1) counter-clockwise at least one turn. The rubber stop can be screwed in or out A or pushed up or down B.
  • Page 59 Setup Move the rubber stop to the desired position. 8. Re-tighten the counternut. Swivel the legrest upward in order to access the rubber stop. Use the wrench to loosen the counternut (1). Move the legrest to the desired position. 10. Re-tighten the locking knob. 1578997-N...

  • Page 60: Adjusting The Length Of The Legrest

    Invacare® TDX® SP2 Series 5.14.4 Adjusting the length of the legrest • 10 mm wrench CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground.

  • Page 61: Unlocking And Swivelling The Calf Pad Backward

    Setup Unlock the legrest and swivel outward. 1. Use the Allen key to loosen the screws (1). The calf pad swivels backward on its own. 2. Adjust to the desired position. 3. Re-tighten the screws. 5.14.7 Unlocking and swivelling the calf pad backward when alighting Lift leg over the heel strap and place on the ground.

  • Page 62: Adjusting The Angle- And Depth-Adjustable Foot

    Invacare® TDX® SP2 Series 5.15 ADM legrests 5.15.1 Swivelling the footrest/legrest outward and/or removing The small unlocking button is located on the upper section of the footrest/legrest. When the footrest/legrest is unlocked, it can be swivelled inward or outward when getting into the wheelchair as well as being removed completely.

  • Page 63: Adjusting The Length Of The Legrest

    Setup Lowering CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground. Raising 1. Keep the legrest in the foot plate area, pull the lateral adjusting lever (1) and lower the legrest slowly.

  • Page 64: Adjusting The Depth Of The Calf Pad

    Invacare® TDX® SP2 Series 1. Use the spanner to loosen the screw (1). 2. Adjust to the desired length. 1. Use the wrench to loosen the nut (1) and remove. 3. Re-tighten the screw. 2. Adjust to the desired depth. Observe that the round holes are intended for the calf pad retaining screw and 5.15.4 Adjusting the depth of the calf pad...

  • Page 65: Unlocking And Swivelling The Calf Pad Backward

    Setup Unlock the legrest and swivel outward. 1. Use the Allen key to loosen the screws (1). The calf pad swivels backward on its own. 2. Adjust to the desired position. 3. Re-tighten the screws. 5.15.6 Unlocking and swivelling the calf pad backward when alighting Lift leg over the heel strap and place on the ground.

  • Page 66: Adjusting The Angle- And Depth-Adjustable Foot

    Invacare® TDX® SP2 Series 5.16 Powered elevating legrests (ADE legrests) 5.16.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 67: Adjusting The Length Of The Legrest

    Setup 1. Use the wrench to loosen the screw (1). CAUTION! 2. Adjust to the desired length. Risk of injury due to incorrect adjustment of the 3. Re-tighten the screw. footrests and legrests – Before and during every journey it is imperative 5.16.4 Adjusting the depth of the calf pad to ensure that the legrests contact neither the castor wheels nor the ground.

  • Page 68: Adjusting The Height Of The Calf Pad

    Invacare® TDX® SP2 Series 5.16.5 Adjusting the height of the calf pad • 4 mm Allen key Unlock the legrest and swivel outward. The calf pad swivels backward on its own. 1. Use the Allen key to loosen the screws (1).

  • Page 69: Adjusting The Angle- And Depth-Adjustable Foot

    Setup 5.17 Legrests for Max seat 5.17.1 Adjusting the height of the calf pad Tools: • Crosstip screwdriver 1. Use the Allen key to loosen both set screws on the foot plate. 2. Adjust to the desired angle. 3. Re-tighten the screws. 5.16.8 Adjusting the angle–...

  • Page 70: Adjusting The Calf Pad Width

    Invacare® TDX® SP2 Series 5.17.3 Adjusting the length of the legrest CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests – Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground.

  • Page 71: Adjusting The Width Of Side-Mounted Legrests

    Setup 5.18 Adjusting the width of side-mounted legrests Tools: • 13 mm wrench The screws that allow width adjustment of side-mounted legrests are located under the seat (1). 1. Loosen the screws using the wrench. 2. Adjust the legrest to the desired position. 3.

  • Page 72: Usage

    Invacare® TDX® SP2 Series 6.2 Before Driving for First Time 6 Usage Before you take your first trip, you should familiarise yourself 6.1 Driving well with the operation of the mobility device and with all operating elements. Take your time to test all functions CAUTION! and driving modes.

  • Page 73: Removing Standard Armrest In Order To Side

    Usage 6.4.1 Removing Standard Armrest in Order to Side WARNING! Transfer Risk of serious injury or damage Improper transfer techniques may cause serious injury or damage – Before attempting transfers, consult a healthcare professional to determine proper transfer techniques for the user and type of wheelchair.

  • Page 74: Swivelling Nucleus Midline Holder To Side

    Invacare® TDX® SP2 Series 6.4.3 Swivelling Nucleus Midline Holder to Side 6.4.5 Swivelling Chin Control to Side 1. Push button A and swivel up or down nucleus. 6.4.4 Swivelling Swing-Away Display Holder to Side Press locking device C (behind headrest) and swivel...

  • Page 75: Safety Information When Taking Obstacles

    Usage 6.5.3 Safety Information When Taking Obstacles CAUTION! Risk of tipping over – Never approach obstacles at an angle but at 90 Fig. 6-4 Right Fig. 6-5 Wrong degrees as shown below. – Approach obstacles followed by a gradient with Ascending caution.

  • Page 76: Driving Up And Down Gradients

    Invacare® TDX® SP2 Series Descending CAUTION! Risk of tipping over The approach to descend an obstacle is the same as to – Only ever drive downhill at a maximum of 2/3 ascend it with the difference that you need not to stop of the top speed.

  • Page 77: Use On Public Roads

    When the mobility device is parked, the Contact your Invacare provider if you have any questions. engaging turn knobs of the motors must without fail be locked firmly into the "DRIVE"...
  • Page 78 Invacare® TDX® SP2 Series Fig. 6-7 Fig. 6-6 Disengaging Right Motor (from View of User) Disengaging Motors 1. Switch off remote. 1. Switch off remote. 2. Turn engaging turn knob of right motor A clockwise B. 2. Turn the engaging lever down A.

  • Page 79: Control System

    When the battery indicator reached the red LED range, checking the entire controls system. A specialised charge the batteries for 16 hours minimum, neglecting Invacare provider must perform the replacement. the charge complete display! You can find information on the fuse type in 11 •...

  • Page 80: Charging Batteries

    WARNING! chargers may be left unattended during charging. All Risk of short circuit and electric shock if the charging devices which are supplied by Invacare comply battery charger has been damaged with these requirements. – Do not use the battery charger if it has been •...

  • Page 81: Disconnecting Mobility Device After Charging

    Control System • Gel and AGM batteries are maintenance-free. Any WARNING! performance issues should be handled by a properly Risk of injury if using the mobility device during trained mobility device technician. charging – DO NOT attempt to recharge the batteries and 7.2.6 Instructions on Using Batteries operate the mobility device at the same time.

  • Page 82: Transporting Batteries

    Invacare® TDX® SP2 Series • Be aware that for temperatures below 20 °C, the restrictions, whether by road, rail or by air. Individual nominal battery capacity starts to decline. For example, transport companies have, however, guidelines which can at -10 °C the capacity is reduced to about 50 % of the possibly restrict or forbid certain transport procedures.
  • Page 83 • Wash all objects that have come into contact with acid with lots of water. Disposing of Dead or Damaged Batteries Correctly Dead or damaged batteries can be given back to your provider or directly to Invacare. 1578997-N...

  • Page 84: Transport

    Invacare® TDX® SP2 Series 8 Transport WARNING! Risk of Injury or Damage If the mobility device is fitted with a tray or other 8.1 Transport — General Information auxiliary equipment this could break free during transfer to a vehicle and cause damage or injury WARNING! to users in the event of a collision.

  • Page 85: Transferring Mobility Device To Vehicle

    Transport 8.2 Transferring Mobility Device to Vehicle WARNING! Risk of injury and damage to mobility device WARNING! and vehicle Mobility device is at risk of tipping over if Risk of tipping over or uncontrolled movements transferred to a vehicle while user is still seated of mobility device if transferred to vehicle using a in mobility device ramp that exceeds rated slope.
  • Page 86 (UK for example), but may also be obtained and vehicle type. For information concerning from Invacare as an option in other countries. the curb weight, refer to 11 Technical Data, page 104 .

  • Page 87: How The Mobility Device Is Anchored In A Vehicle

    If it is considered necessary to make these – Fully lower elevated legrests, if fitted. kinds of alterations, Invacare shall be consulted. – Fully lower the seat lifter, if fitted. – Only use spill-proof sealed batteries approved by Invacare.

  • Page 88: Securing User In Mobility Device

    Invacare® TDX® SP2 Series 1. Secure the mobility device with the tie-down system belts at the following locations: a. All Mobility Devices — four tie-down points A on mobility device base (two at front and two at rear). b. Systems with Lifter and Ultra Low Maxx Seating —...
  • Page 89 Transport CAUTION! CAUTION! Risk of injury if the user is not properly secured Risk of injury if the user is not properly secured within the mobility device within the mobility device (continued) – Safety restraint devices must only be used –...
  • Page 90 Invacare® TDX® SP2 Series Fig. 8-3 The pelvic belt should be positioned in the area between the user's pelvis and thighs so that it is unobstructed and not Fig. 8-4 too loose. The ideal angle of the pelvic belt to the horizontal is between 45°...

  • Page 91: Transporting Mobility Device Without Occupant

    Invacare strongly recommends that you additionally Invacare is perfectly suitable for use during disconnect or remove the batteries. Refer to Removing transport. the batteries.
  • Page 92 Invacare® TDX® SP2 Series WARNING! To retrofit a mobility device with a Dahl Docking Risk of Death, Serious Injury or Damage system, it is imperative, that the mobility device If the mobility device is not secured in a forward is equipped with the correct adapter plate. This...
  • Page 93 Transport Components of Dahl Docking System Positioning the occupant restraint when using it with the Dahl Docking system only 300 mm 10-60 mm 10-60 mm When using mobility device with a Dahl Docking system, the floor anchorage points for the occupant restraint system should be located 10 –...
  • Page 94 Invacare® TDX® SP2 Series Dahl Engineering offers two Dockings systems, the MK II 1. Maneuver mobility device slowly and in straight (Dahl No. 501750), and a power height adjustable called direction over Dahl Docking station (1). Dahl VarioDock (Dahl No. 503600).
  • Page 95 Transport 1. Move mobility device forward to release pressure on Always check before moving the vehicle if lock plate locking pin. is properly engaged in the Dahl Docking station by 2. Push manual emergency release lever (8) to one side trying to reverse the mobility device out of the Dahl and hold it there, while mobility device moves away.
  • Page 96 Invacare® TDX® SP2 Series Fig. 8-10 Push emergency release tool and mobility device forward until locking pin has been forced down. 4. Move mobility device away from Dahl Docking station. 1578997-N...

  • Page 97: Maintenance

    Invacare. That manual, however, is intended to be used by trained and authorised service technicians, and describes It is recommended, to have your mobility device tasks which are not intended to be performed by the user.

  • Page 98: Weekly

    Invacare® TDX® SP2 Series 9.2.2 Weekly Item Inspection check If inspection is not passed Armrests /side parts Check that armrests are firmly attached Tighten the screw or clamping lever that holds the in their holders and do not wobble. armrest (see chapter 5 Setup, page 30).

  • Page 99: Wheels And Tyres

    The power module prevents your mobility device For recommended tyre pressure see inscription on tyre/rim from driving. or contact Invacare. Compare table below for conversion. When the mobility device is in such a condition and while waiting for repair: 1.

  • Page 100: Long-Term Storage

    Invacare® TDX® SP2 Series 9.5 Long-Term Storage • Position the mobility device on flooring that is not discoloured by contact with tyre rubber. In case your mobility device is not used for a longer period of time, you need to prepare it for storage to ensure a Preparing Mobility Device for Use longer life for your mobility device and batteries.

  • Page 101: Cleaning Intervals

    Maintenance 9.6.2 Cleaning Intervals NOTICE! Wrong fluids or methods can harm or damage NOTICE! the product. Regular cleaning and disinfection enhance smooth – All cleaning agents and disinfectants used must operation, increases the service life and prevents be effective, compatible with one another and contamination.

  • Page 102: Disinfection Instructions

    Invacare® TDX® SP2 Series 1. Remove any installed optional equipment (only optional equipment which does not require tools). 2. Wipe down the individual parts using a cloth or soft brush, ordinary household cleaning agents (pH = 6 - 8) and warm water.

  • Page 103: After Use

    • Inspection according to service plan. See service in places (landfills) that are not appropriate according to legislation. manual, available from Invacare. • Cleaning and disinfection. Refer to 9 Maintenance, – DO NOT dispose of batteries in normal page 97.

  • Page 104: Technical Data

    Invacare® TDX® SP2 Series 11 Technical Data 11.1 Technical Specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories are added. The precise changes to these values are detailed in the sections for the respective accessories.
  • Page 105 Technical Data Charging Device Output Current • • 10 A Output Voltage • 24 V nominal Drive Wheel Tyres Tyre Type • 3.00 - 8” puncture–protected, puncture-proof, pneumatic Tyre Pressure The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or the rim.
  • Page 106 Invacare® TDX® SP2 Series Driving Characteristics Speed • 3 km/h • 6 km/h • 10 km/h • 12 km/h Max. Stopping Distance • 400 mm (3 km/h) • 1000 mm (6 km/h) • 2100 mm (10 km/h) • 2900 mm (12 km/h) Rated Slope •...
  • Page 107 Technical Data Seat Type Dimensions According to ISO 7176–5 Modulite Stowage Width • 630 – 745 mm • 710 – 830 mm Stowage Height • > 65 mm Ground Clearance • 450 mm • 470 mm Seat-to-Floor Height (Without Seat •...
  • Page 108 Invacare® TDX® SP2 Series Seat Type Dimensions According to ISO 7176–5 Modulite Seat Width (Armrest Adjustment see user manual of corresponding seating • 490 mm (490 - 590 mm) system Range in Parentheses) • 550 mm (550 - 650 mm) •...
  • Page 109 Technical Data Footrests and Legrests Angle • 70° – 0° • 290 - 460 mm ADE (electric) Length Angle • 80° – 0° • 290 - 460 mm ADM (manual) Length • 80° – 0° Angle Length • 280 – 385 mm Centre-Mounted (manual) Angle •...
  • Page 110 Invacare® TDX® SP2 Series Component Weights 73.5 Ah Batteries • approx. 23 kg per battery 60 Ah Batteries • approx. 20 kg per battery 50 Ah Batteries • approx. 17 kg per battery Payload Max. Payload • 136 kg (TDX SP2 Sprint) •...
  • Page 111 Horizontal distance of wheel axle from intersection of loaded seat and backrest reference planes The actual kerb weight depends on the fittings your mobility device has been supplied with. Every Invacare mobility device is weighed when leaving the works. Refer to the nameplate for the kerb weight (including batteries) measured.

  • Page 112: Service

    Invacare® TDX® SP2 Series 12 Service 12.1 Inspections Performed It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the service and repair instructions have been properly performed. The list of the inspection jobs to be performed can be found in the service manual which is available through Invacare.
  • Page 113 Service Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 4th Annual Inspection 5th Annual Inspection Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 1578997-N...
  • Page 114 Notes...
  • Page 115 Notes...
  • Page 116 Australia: Canada: New Zealand: United Kingdom & Ireland: Invacare Australia Pty. Ltd. Invacare Canada L.P. Invacare New Zealand Ltd Invacare Limited Unit 18/12 Stanton Road, 570 Matheson Blvd East, Unit 8 4 Westfield Place, Mt Wellington 1060 Pencoed Technology Park, Pencoed Seven Hills, NSW 2147, CDN Mississauga, On.

Table of Contents
