1 Connections

1.2 Turntables/CD Players and Internal Mixer Setup

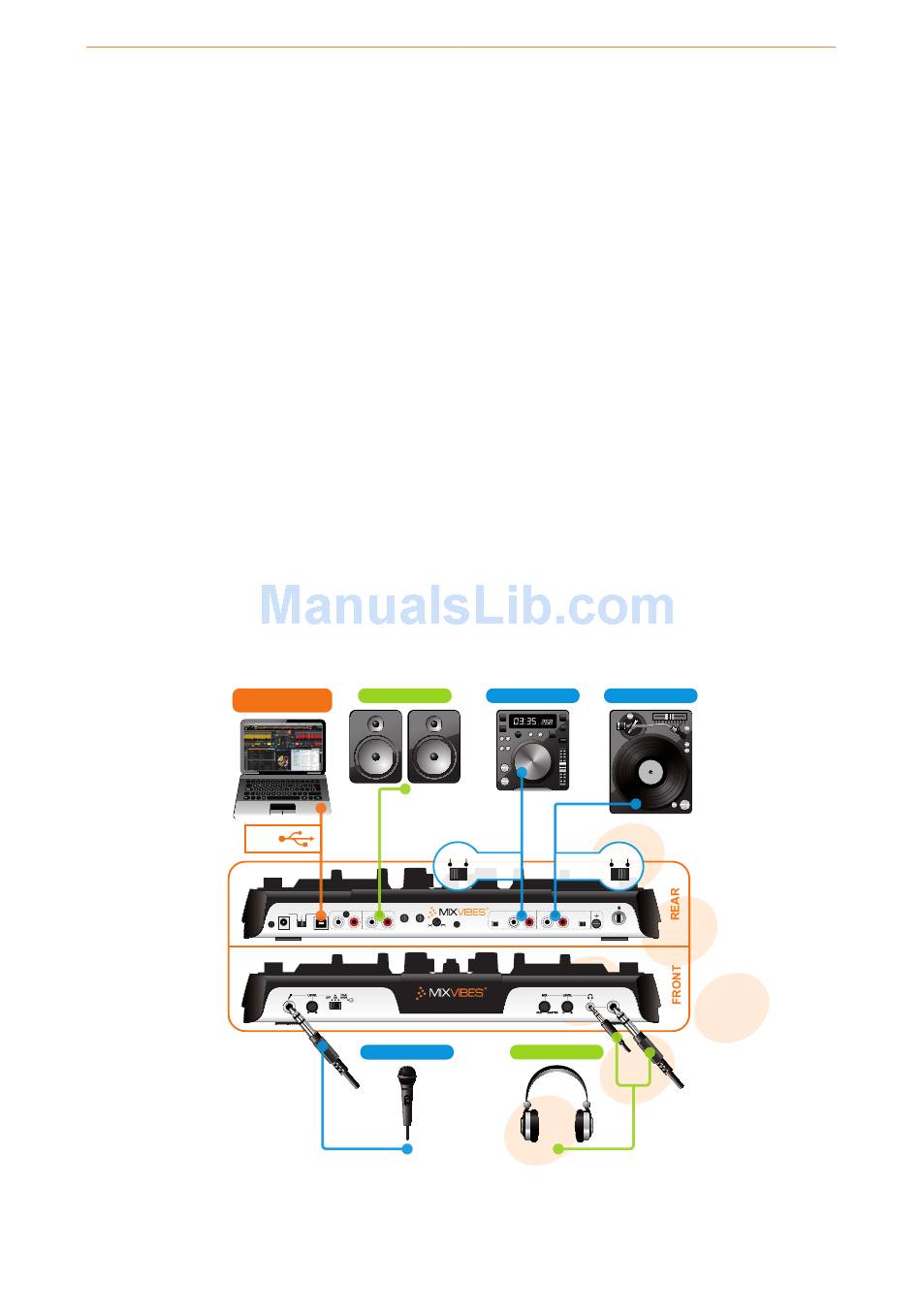

1 If you are using vinyl, plug the ground of your turntable to the ground lug on the U-MIX CONTROL PRO.
2 Connect the outputs of your decks (vinyl or CD) to the RCA inputs of your U-MIX CONTROL PRO plugging
the left deck into the inputs 1/2 and right deck into the inputs 3/4. Match the left channel (usually white)
with the white RCA sockets on the U-MIX CONTROL PRO, and right (usually red) with the red sockets.
3 If you are using turntables with phono outputs, set the U-MIX CONTROL PRO's input selectors to 'Phono'.
If you are using turntables with line outputs or CD players, set the input selectors on the U-MIX CONTROL
PRO to 'Line'.
4 Connect outputs 1/2 of your U-MIX CONTROL PRO to your sound system (amplifier, powered speakers, or
home stereo).
5 Connect your headphones to one of the 'headphones' outputs of your U-MIX CONTROL PRO.
6 If necessary, connect your microphone to the 'microphone' input of your U-MIX CONTROL PRO.
7 Connect the supplied USB cable between the USB output of your U-MIX CONTROL PRO and a free USB slot
of your computer.
8 To turn on your U-MIX CONTROL PRO, set the rear panel selector to 'USB'.
9 After installing the software, set the CROSS DJ Audio preferences as described in the Audio Configuration
part of this manual:
