Rear Panel - MIXVIBES U-Mix Control Pro User Manual

4 Controller Overview

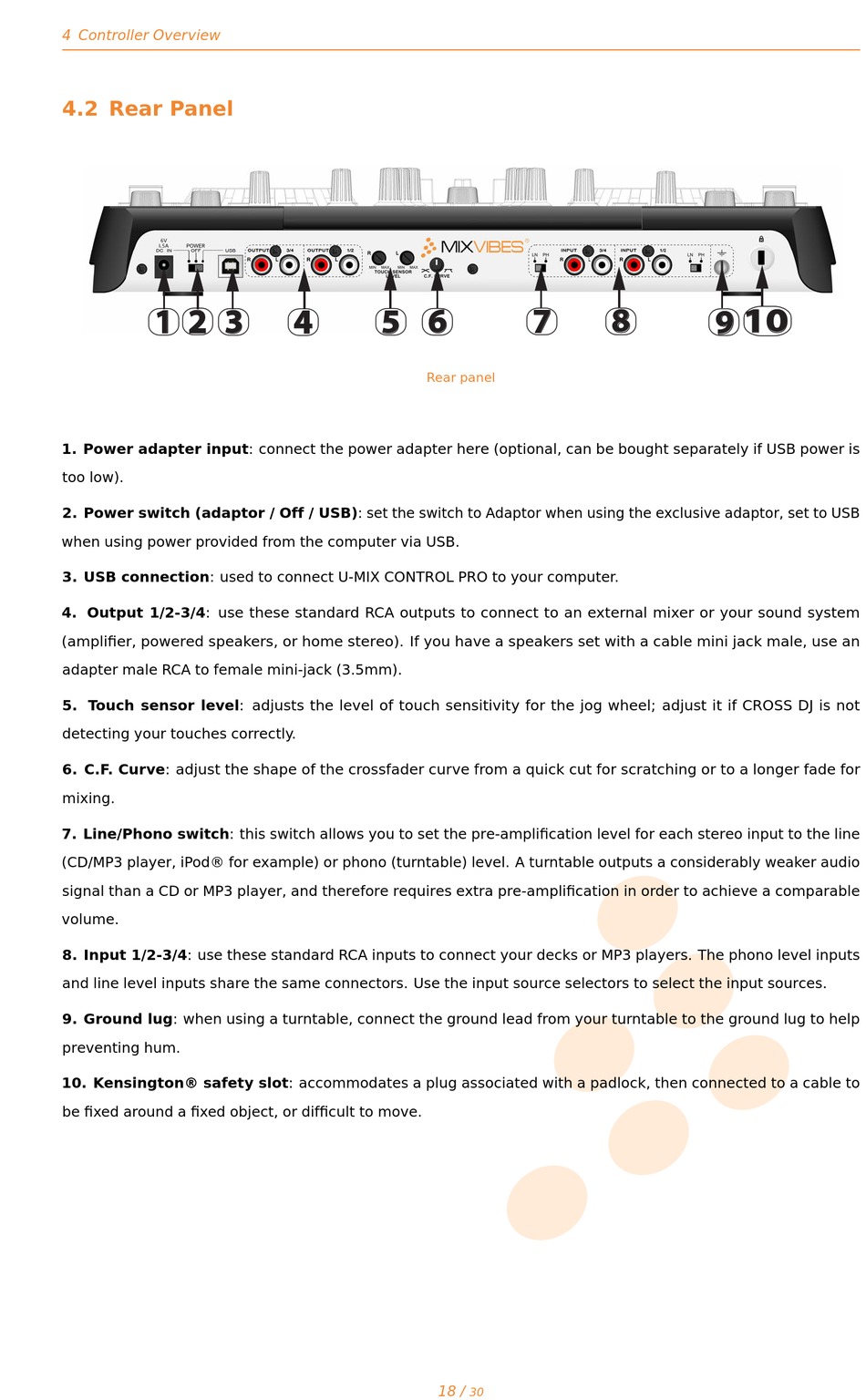

4.2 Rear Panel

rear_panel-umcp.pdf 04/10/2010 12:04:56
1 2 3
C
M
Y
CM
MY
20
21
CY
CMY
K
15
18
1. Power adapter input: connect the power adapter here (optional, can be bought separately if USB power is
too low). 16
2. Power switch (adaptor / Off / USB): set the switch to Adaptor when using the exclusive adaptor, set to USB
14
when using power provided from the computer via USB.
3. USB connection: used to connect U-MIX CONTROL PRO to your computer.
4. Output 1/2-3/4: use these standard RCA outputs to connect to an external mixer or your sound system
13
(amplifier, powered speakers, or home stereo). If you have a speakers set with a cable mini jack male, use an
adapter male RCA to female mini-jack (3.5mm).
10 11
5. Touch sensor level: adjusts the level of touch sensitivity for the jog wheel; adjust it if CROSS DJ is not
detecting your touches correctly.
6. C.F. Curve: adjust the shape of the crossfader curve from a quick cut for scratching or to a longer fade for
mixing.
7. Line/Phono switch: this switch allows you to set the pre-amplification level for each stereo input to the line
(CD/MP3 player, iPod® for example) or phono (turntable) level. A turntable outputs a considerably weaker audio
signal than a CD or MP3 player, and therefore requires extra pre-amplification in order to achieve a comparable
volume.
8. Input 1/2-3/4: use these standard RCA inputs to connect your decks or MP3 players. The phono level inputs
and line level inputs share the same connectors. Use the input source selectors to select the input sources.
9. Ground lug: when using a turntable, connect the ground lead from your turntable to the ground lug to help
preventing hum.
10. Kensington® safety slot: accommodates a plug associated with a padlock, then connected to a cable to
be fixed around a fixed object, or difficult to move.
4 5
22
7
8
19
12
17
C
M
Y
CM
MY
CY
CMY
K
8
6 7
Rear panel 24
6
23
5
18
4
3
18 /
30
10
9
22 21 20
15
19
16
14
12
13
11
17
