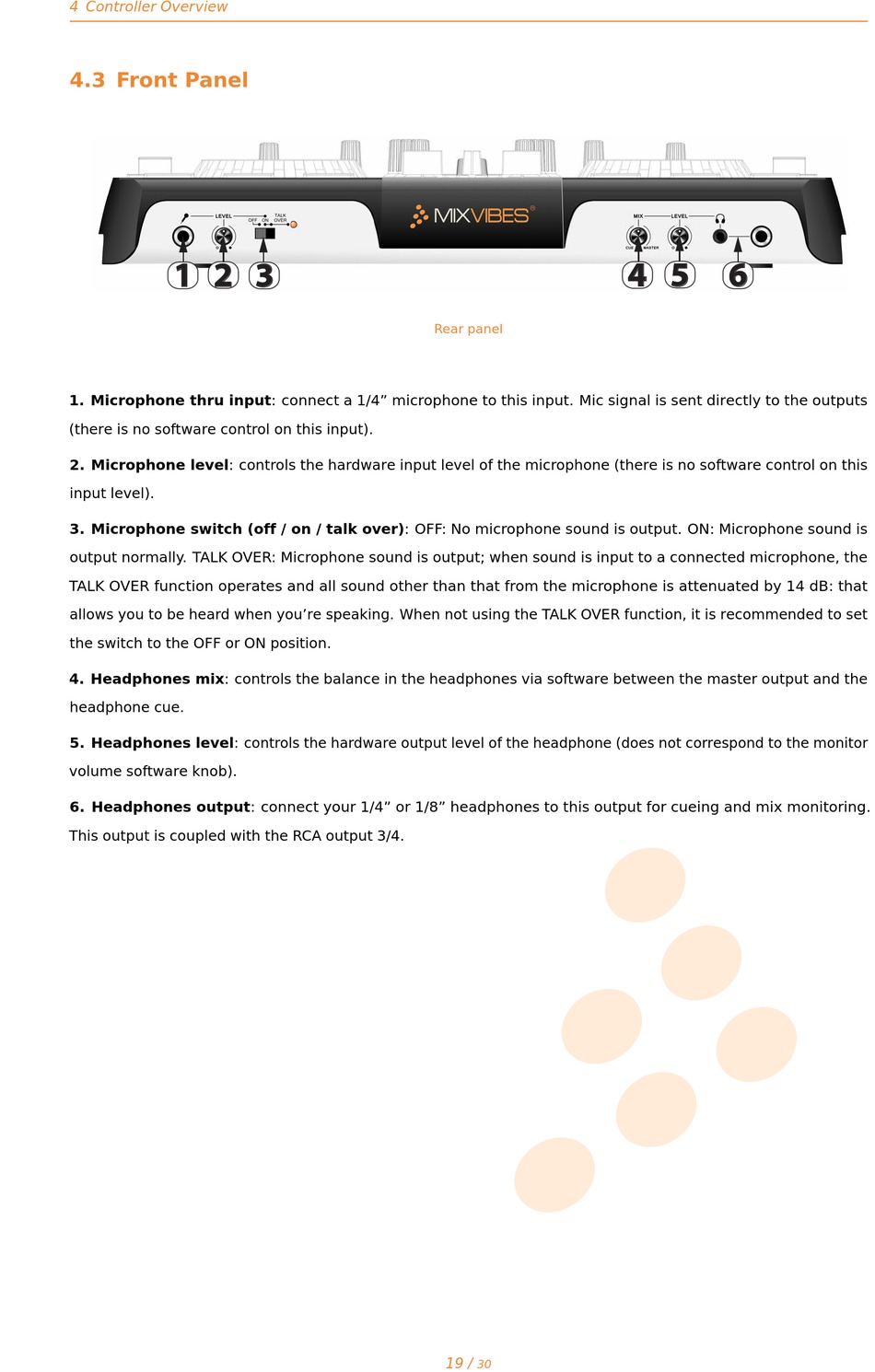

Front Panel - MIXVIBES U-Mix Control Pro User Manual

4 Controller Overview 13
10 11
C

4.3 Front Panel

M
Y
CM
MY
CY
CMY
K
1 2
1. Microphone thru input: connect a 1/4" microphone to this input. Mic signal is sent directly to the outputs
(there is no software control on this input).
2. Microphone level: controls the hardware input level of the microphone (there is no software control on this
input level).
3. Microphone switch (off / on / talk over): OFF: No microphone sound is output. ON: Microphone sound is
output normally. TALK OVER: Microphone sound is output; when sound is input to a connected microphone, the
TALK OVER function operates and all sound other than that from the microphone is attenuated by 14 dB: that
allows you to be heard when you're speaking. When not using the TALK OVER function, it is recommended to set
the switch to the OFF or ON position.
4. Headphones mix: controls the balance in the headphones via software between the master output and the
headphone cue.
5. Headphones level: controls the hardware output level of the headphone (does not correspond to the monitor
volume software knob).
6. Headphones output: connect your 1/4" or 1/8" headphones to this output for cueing and mix monitoring.
This output is coupled with the RCA output 3/4.
