Camera Bracket Assembly

Our Linkage Bracket is designed for attaching most digital cameras to the
lighting system . This gives your camera a straight top-to-bottom view of the
items being photographed, and the reliability to change camera lenses and to
position the camera in endless ways .
Note: Carefully read the following information, as failure to do so may cause improper use
of the bracket and cause damage to your camera and equipment.
Positioning the camera bracket
1 .

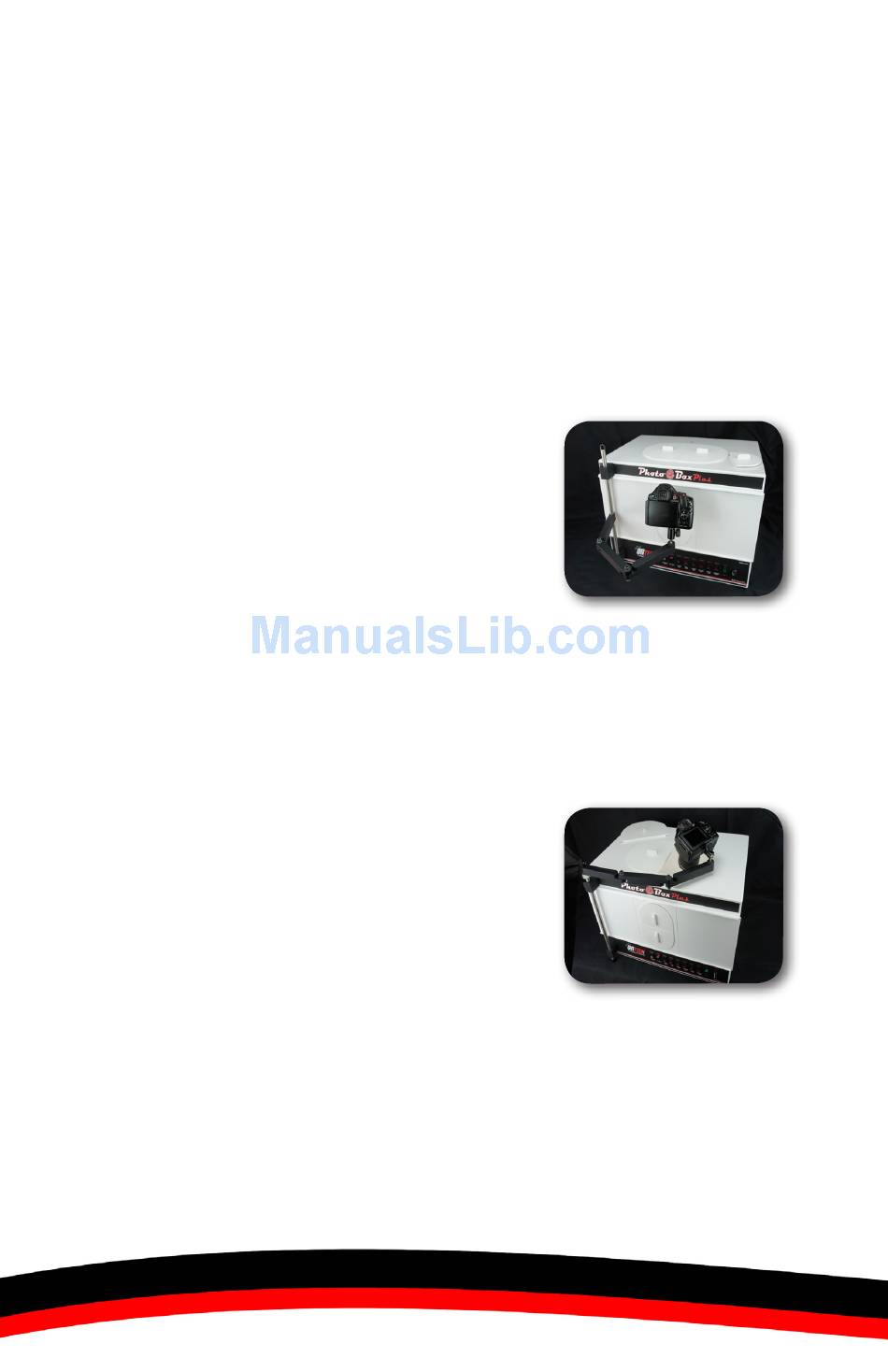

The bracket comes pre-assembled and attached
to the lighting system . In order to get started, you
must attach your camera to the ball head at the
end of the bracket (photo A).
2 .
To attach the camera, you must find the tripod
socket opening located at the bottom of the
camera . Then, you must align the knob of the ball head to the tripod opening and
put the screw of the knob inside your camera . Tighten the screw in a clockwise
manner in order to stabilize your camera .
Note:
Make sure that your camera is correctly and tightly screwed to the ball head so
it does not fall off while you move the bracket.
3 .
Once your camera is secured, you can begin to
move your camera to look for the preferred angle
and position for your photographs .
4 .
The Linkage bracket can be moved at the top if
you wish to take pictures from the top opening
(photo B) .
For an SLR camera with a macro lens, it is recommended that the lens is positioned at
about an inch away from the opening of the box .
For point-and-shoot cameras with a close-up lens, it is recommended that the lens is
positioned at about three inches from the opening of the box
For more tips on positioning the camera and how to use the new Linkage bracket,
please visit the support page on our website at www .mkdigitaldirect .com
6
6
Photo A
Photo B
