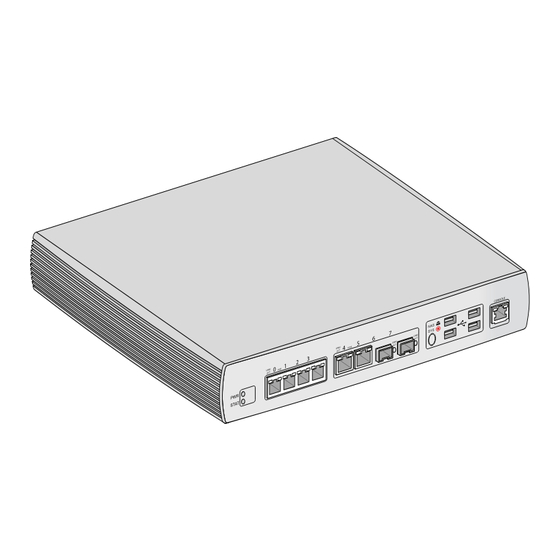

- Page 1 CONS LINK/ LINK/ LINK/ 1000 LINK/ Alcatel-Lucent 4306G OmniAccess Switch Series...
- Page 2 Legal Notice The use of Alcatel-Lucent switching platforms and software, by all individuals or corporations, to terminate Cisco or Nortel VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Alcatel- Lucent from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of Cisco Systems or Nortel Networks."...
-
Page 3: Table Of Contents
Operating Frequency ................17 Available Channels .................17 Modulations ....................17 Transmit Power..................18 Association Rates (Mbps)...............18 802.11n High-Throughput (HT) Support..........18 802.11n Packet Aggregation ..............18 Antenna (4306GW Internal AP) ..............18 Safety and Regulatory Compliance ..............19 Alcatel-Lucent 4306G OmniAccess Switch | Installation Guide Contents | 3... - Page 4 RF Radiation Exposure Statement..............19 Alcatel-Lucent 4306G ...................19 Alcatel-Lucent 4306GW ................19 Proper Disposal of Alcatel-Lucent Equipment ............20 Waste of Electrical and Electronic Equipment ..........20 European Union RoHS ..................20 China RoHS ....................20 4 | Contents Alcatel-Lucent 4306G OmniAccess Switch | Installation Guide...
-
Page 5: Preface
Related Documentation The following documentation are referred to in this guide and are considered components of the complete documentation set needed for a successful installation and management of an Alcatel-Lucent Mobility Controller. AOS-W Quick Start Guide AOS-W User Guide... - Page 6 Support Site https://service.esd.alcatel-lucent.com Support Email support@ind.alcatel.com Table 2 Contact Information Telephone Support North America 1-800-995-2696 Latin America 1-877-919-9526 Europe +33 (0) 38 855 6929 Asia Pacific +65 6240 8484 Worldwide 1-818-878-4507 6 | Preface Alcatel-Lucent 4306G OmniAccess Switch | Installation Guide...
-
Page 7: Hardware Overview
4306G-8: includes built-in campus connected AP support for up to 8 APs; optional Alcatel-Lucent AP upgrade licenses are available. The Alcatel-Lucent 4306GW is capable of supporting up to 16 external, campus connected APs in addition to its single, internal AP. -
Page 8: Hardware Model Overview
Ethernet Ports with PoE 1000Base-X (SFP) Ports There are two 1000Base-X ports for fiber connectivity only and are intended for use with Alcatel-Lucent SFPs (mini-GBICs). To purchase compatible SFP modules, contact your Alcatel-Lucent sales representative for details and assistance. Alcatel-Lucent tests and supports Alcatel-Lucent optics within their switch system. Third party optics are not tested or supported;... -
Page 9: 10/100/1000Base-T Gigabit Ethernet Ports
10/100/1000Base-T Gigabit Ethernet Ports There are six 10/100/1000Base-T Gigabit Ethernet (RJ-45) ports on the Alcatel-Lucent 4306G OmniAccess Switch. Gigabit Ethernet uses all eight wires and each pair is used in a bi-directional fashion, meaning the same pairs are used for both data transmission and reception. -
Page 10: Serial Console Port Adaptor
The Alcatel-Lucent 4306G OmniAccess Switch is equipped with a media eject button, which allows users to eject storage devices safely and place the system in standby. Pushing the media eject button changes the state of the Alcatel-Lucent 4306G OmniAccess Switch; the table below describes the states and LED behaviors associated with use of the media eject button. -
Page 11: Rear View
Antennae Interfaces (Alcatel-Lucent 4306GW Only) The Alcatel-Lucent 4306GW is equipped with an internal Access Point (AP). This AP can operate in 2.4 GHz and 5 GHz bands, in a/b/g or n modes. Each appliance has three RP-SMA interfaces to attach the antennae included in this kit. - Page 12 Table 5 Alcatel-Lucent 4306 Series LED Status Indicators Label Function Indicator Status 1000Base-X Ports (SFP) LNK/ACT Link Status Indicator On (Solid Green) Link has been established On (Flashing Green) Port is transmitting or receiving data No link on port 10/100/1000Base-T Ports...
-
Page 13: Installation
Installation Pre-Installation Requirements The following tools and equipment are required for installation of an Alcatel-Lucent 4306G OmniAccess Switch. Rack Mount Bracket (x2, not used for tabletop installation) 6-32 x 1/4” Phillips Flat Head Screws (4x, included with rack mount brackets) 12-24 x 5/8”... - Page 14 CO NS LIN K/ Keep AC T LIN K/ AC T LIN K/ 10 00 AC T Clear for Air LIN K/ PO E AC T Keep Open for Easy Access 14 | Installation Alcatel-Lucent 4306G OmniAccess Switch | Installation Guide...
-
Page 15: Tabletop Deployment
8. Plug the opposite end of the power cord into an electrical outlet to power the switch. Alcatel-Lucent 4306G OmniAccess Switch controller does not have a switch for turning power to the unit on or off. Power to the unit is controlled by connecting or disconnecting the plug on the power cord to or from an electrical outlet. - Page 16 16 | Installation Alcatel-Lucent 4306G OmniAccess Switch | Installation Guide...
-
Page 17: Appendix A Specifications, Safety, & Compliance
2.4-2.5 GHz or 5.150–5.950 GHz Available Channels OmniAccess Switch-managed, dependent upon configured regulatory domain Modulations 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: 802.11n draft 2.0 Alcatel-Lucent 4306G OmniAccess Switch Series | Installation Guide Specifications, Safety, & Compliance | 17... -
Page 18: Transmit Power
A-MSDU Antenna (4306GW Internal AP) Three RP-SMA interfaces for external antenna support (supports up to 3x3 MIMO with spatial diversity) Three AP-ANT-1B omni-directional dual-band antennas included 18 | Specifications, Safety, & Compliance Alcatel-Lucent 4306G OmniAccess Switch Series | Installation Guide... -
Page 19: Safety And Regulatory Compliance
Safety and Regulatory Compliance Alcatel-Lucent provides a multi-language document containing country specific restrictions and additional safety and regulatory information for all Alcatel-Lucent hardware products. The Alcatel-Lucent Safety and Regulatory Addendum can be viewed or downloaded from the following location: https://service.esd.alcatel-lucent.com. -
Page 20: Proper Disposal Of Alcatel-Lucent Equipment
Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Alcatel-Lucent products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will be marked with the “RoHS” label shown at the left indicating conformance to this Directive.
