Summary of Contents for Alcatel-Lucent OmniAccess 4504

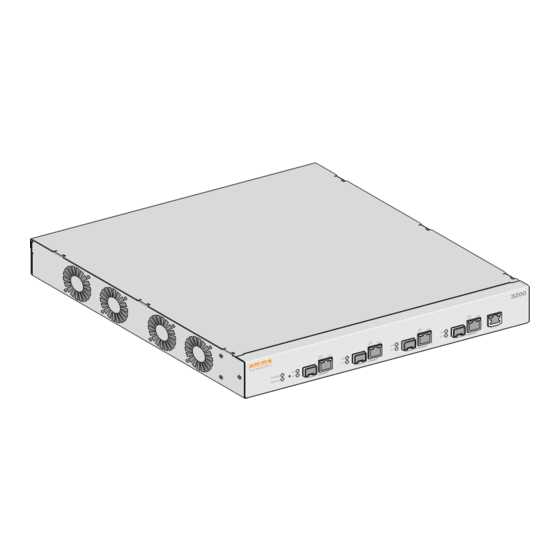

- Page 1 OmniAccess 4504, 4604, and 4704 WLAN Switch...
- Page 2 Legal Notice The use of Alcatel-Lucent switching platforms and software, by all individuals or corporations, to terminate Cisco or Nortel VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Alcatel- Lucent from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of Cisco Systems or Nortel Networks."...
-
Page 3: Table Of Contents
Contents Preface Guide Overview Related Documents Contacting Alcatel-Lucent Chapter 1 Hardware Overview About the OmniAccess 4504, 4604, and 4704 Minimum Software Requirements Package Checklist Hardware Model Overview Front View 1000Base-X (SFP) Ports 10/100/1000Base-T Gigabit Ethernet Ports Serial Console Port Rear View... - Page 4 | Contents OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide...
-
Page 5: Preface
Support Site https://service.esd.alcatel-lucent.com Support Email support@ind.alcatel.com Telephone Support North America 1-800-995-2696 Latin America 1-877-919-9526 Europe +33 (0) 38 855 6929 Asia Pacific +65 6240 8484 Worldwide 1-818-878-4507 OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide Preface |... - Page 6 | Preface OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide...
-
Page 7: Hardware Overview
Hardware Overview About the OmniAccess 4504, 4604, and 4704 The OmniAccess 4504, 4604, and 4704 are enterprise-class, wireless LAN switches. These switches connect, control, and intelligently integrate wireless Access Points (APs) and Air Monitors (AMs) into a wired LAN system. -
Page 8: Minimum Software Requirements
3.2.0, you must upgrade the software on your master and local switches to 3.2.0 or later prior to installing an OmniAccess 4504, 4604, or 4704 WLAN Switch in your existing network. -
Page 9: Front View
There are four 1000Base-X combination ports for fiber connectivity only and are intended for use with Alcatel-Lucent SFPs (mini-GBICs). To purchase compatible SFP modules, contact your Alcatel-Lucent sales representative for details and assistance. Alcatel-Lucent tests and supports Alcatel-Lucent optics within their switch systems. Third party optics are not tested or supported;... -
Page 10: Serial Console Port
Figure 4 RJ-45 (female) to DB9 (male) Modular Adaptor Conversion RJ-45 Female Internal DB-9 Male Pin-Out Connections Pin-Out RJ-45 DB-9 Ground Direction Direction Input Input Output Output | Hardware Overview OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide... -
Page 11: Rear View
AC Power Socket AC Power Socket The OmniAccess 4504, 4604, and 4704 support integrated AC powering and the AC power socket on the rear of the unit is for use with an AC power cord (country-specific). Refer to Power Management Specifications on page 17 for power specification details. - Page 12 Table 2 OmniAccess 4504, 4604, and 4704 LED Status Indicators Function Indicator Status No link on port 1000 Interface Speed On (Solid Green) 1000 Mbps interface 10/100/1000Base-T Ports Indicator speed in use 10/100 Mbps interface speed in use | Hardware Overview...
-
Page 13: Installation
Installation Installation Pre-Installation Requirements The following tools and equipment are required for installation of an OmniAccess 4504, 4604, or 4704: Rack Mount Bracket (2x) 6-32 x 1/4” Phillips Flat Head Screws (6x, included with rack mount brackets) 12-24 x 5/8” Phillips Flat Head Screws (4x, 19-inch (48.26 cm) rack system mount screws) - Page 14 8. Plug the opposite end of the power cord into an electrical outlet to power on the switch. OmniAccess 4504, 4604, and 4704 switches do not have a switch for turning power to the unit on or off. Power to the unit is controlled by connecting or disconnecting the plug on the power cord to or from an electrical outlet.
-
Page 15: Tabletop Deployment
Tabletop Deployment To deploy an OmniAccess 4504, 4604, or 4704 switch on a flat surface, such as a tabletop: 1. Insert the four, rubber mounting feet into the bottom of the unit and place the unit on a flat, hard surface. - Page 16 | Installation OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide...
-
Page 17: Appendix A Specifications, Safety & Compliance
AC Input Current: 2.2 A AC Input Frequency: 47-63 Hz Operating Specifications Operating Temperature Range: 0°C to 40°C (32°F to 104°F) Operating Humidity Range: 5% to 95% (RH), non-condensing OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide Specifications, Safety & Compliance |... -
Page 18: Storage Specifications
Safety and Regulatory Compliance Alcatel-Lucent provides a multi-language document containing country specific restrictions and additional safety and regulatory information for all Alcatel-Lucent hardware products. The Alcatel- Lucent Safety and Regulatory Addendum can be viewed or downloaded from the following location: https://service.esd.alcatel-lucent.com... -
Page 19: European Union Rohs
European Union RoHS Alcatel-Lucent products also comply with the EU Restriction of Hazardous Substances Directive 2002/95/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the manufacture of electrical and electronic equipment. Specifically, restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. - Page 20 | Specifications, Safety & Compliance OmniAccess 4504, 4604, and 4704 WLAN Switch | Installation Guide...
