Do you have a question about the OmniSwitch 6560 and is the answer not in the manual?
Questions and answers

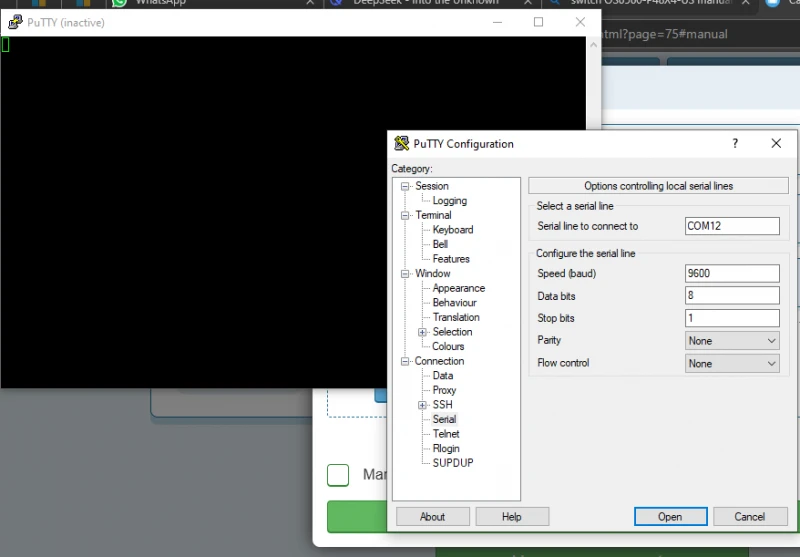

no puedo conectarme al switch por consola por mas que trato de conectarme por varios cables consola
You may not be able to connect to the Alcatel-Lucent OmniSwitch 6560 via console cable due to one or more of the following reasons:
1. Incorrect cable type: The switch uses a specific RJ-45 to DB9 console adapter. A standard Ethernet patch cord is not always suitable. Using a Cisco-style rollover cable is typically required.
2. Wrong cable wiring: Even if the physical connectors fit, the internal wiring must match the required pinout for the console connection. Not all Ethernet cables have the correct wiring.
3. Console port issue: The console port on the switch may be faulty or damaged, as mentioned by other users with similar symptoms.
4. Incorrect terminal settings: Ensure terminal settings are correct—9600 baud, 8 data bits, 1 stop bit, no parity, no flow control.
5. Bad adapter: The RJ-45 to DB9 adapter might be faulty or incompatible.
6. No boot output: If the switch is not outputting any boot messages, it might not be starting properly or the port may be inactive.
Try using a Cisco-compatible rollover cable and verify all terminal and hardware settings. If still no output, the console port may be defective.
This answer is automatically generated
