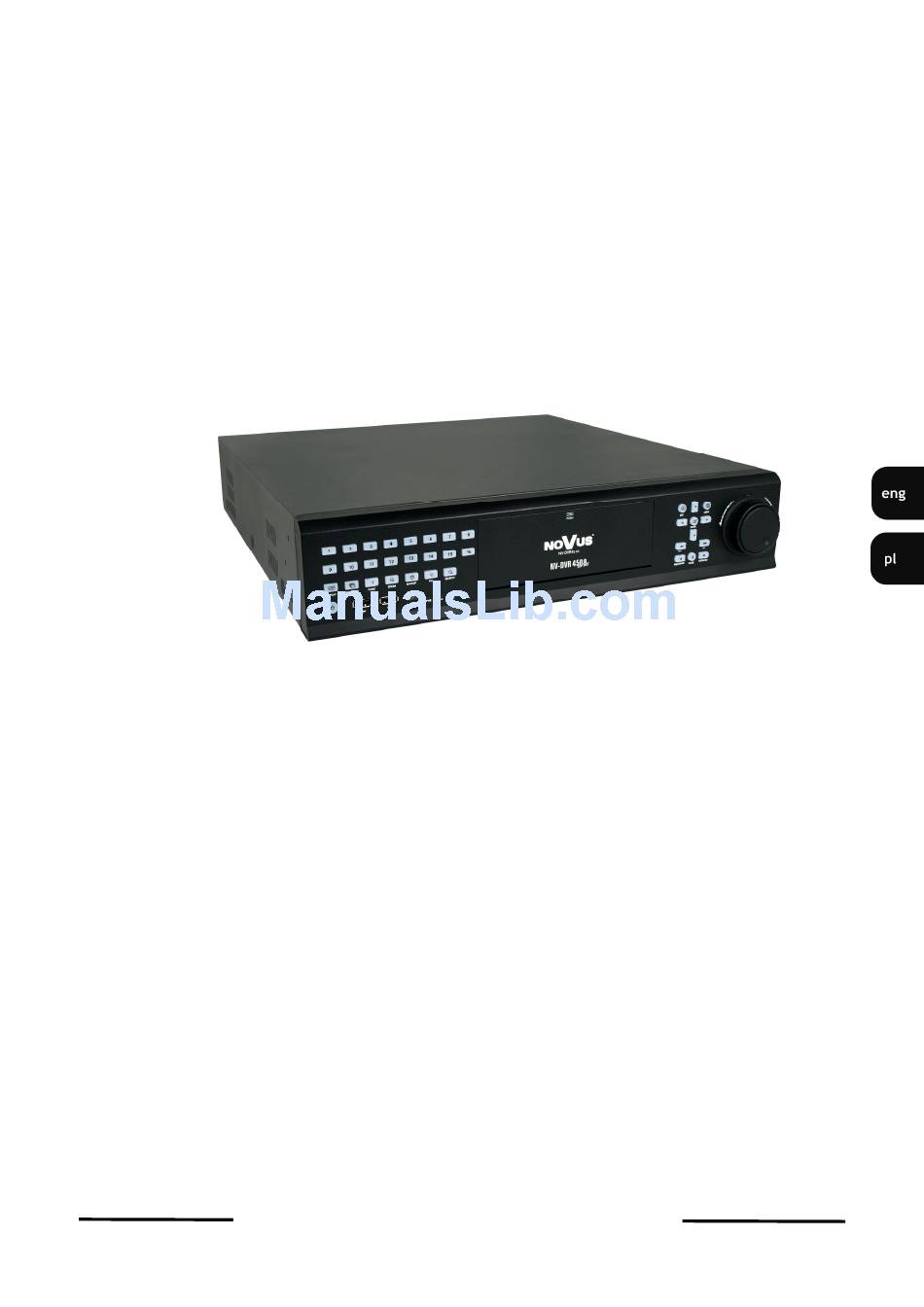

- Page 1 NV-DVR4508(S)/DVD / NV-DVR4516(S)/DVD 1.1 version - User’s manual short form U s e r ’s m a n u a l ( s h o r t f o r m ) NV-DVR4508(S)/DVD NV-DVR4516(S)/DVD All rights reserved © NOVUS Security Sp. z o.o.
- Page 2 NV-DVR4508(S)/DVD / NV-DVR4516(S)/DVD 1.1 version - User’s manual short form All rights reserved © NOVUS Security Sp. z o.o.
- Page 3 U s e r ’s m a n u a l ( s h o r t f o r m ) NV-DVR4508(S)/DVD NV-DVR4516(S)/DVD...
- Page 4 The manufacturer is not responsible for defects and damages resulted from improper or inconsistent with user’s manual installation of the device in the system. All rights reserved © NOVUS Security Sp. z o.o.
- Page 5 4. The recorder has to be protected against humidity and dust. In case the recorder had a contact with water react immediately: switch off the power supply and contact the authorised Novus service. If the device gets dirty it might get damaged or electrocute someone.
-
Page 6: Table Of Contents
2.4. Front panel description ....................13 2.5. HDD installation ......................17 3. RECORDER’S ME U ......................18 4. RECORDER’S OPERATIO ....................19 4.1. Live monitoring ......................19 4.2. Playing recorded video ....................20 All rights reserved © NOVUS Security Sp. z o.o. -
Page 7: Foreword I Formatio
Recording up to 4 audio channels • Advanced search modes • PTZ camera control using recorder or network applet. • Remote control of NOVUS® compact cameras using RS-485 standard • Protocols: Novus-C, N-Control, Pelco-D • Fully-compatible with NV-KBD30 keyboards •... -
Page 8: Technical Specifications
Operating Temperature 5°C ~ 40°C Operative Relative Humidity 0% ~ 80% (without condensation) Dimensions (mm) 430 (W) x 88 (H) x 450 (D) Weight 8,1 kg (without HDD) Rack Mount Enabled, 2U All rights reserved © NOVUS Security Sp. z o.o. -
Page 9: Starti G The Device
If the device has been brought from an area of lower temperature the user should wait until the equipment warms up and reaches the room temperature. Caution: Before starting the device read the input description on the back panel. All rights reserved © NOVUS Security Sp. z o.o. -
Page 10: Electrical Connection And Other Back Panel's Elements
Power supply socket 230V AC. Please make sure that the plug is inserted correctly and cable is connected to a socket with a grounding pin. It is not recommended to strongly bend the cable . All rights reserved © NOVUS Security Sp. z o.o. - Page 11 You need to use signal cord provided with the monitor. 14. PORT RS-232 only for service 15. NETWORK RJ-45 connector to connect the device to a local network in the 10/100Mbs standard. All rights reserved © NOVUS Security Sp. z o.o.
-
Page 12: Connecting External Devices
Monitors, cameras and other devices are not included and must be purchased separately. Detailed devices connection description is included in following chapters of this manual. All rights reserved © NOVUS Security Sp. z o.o. -
Page 13: Front Panel Description
Displayed channel selection. When you press a button i m a g e from a camera connected to this channel is displayed. Images are displayed in full screen mode. Buttons are also used during inserting password. All rights reserved © NOVUS Security Sp. z o.o. - Page 14 Centre part of the JOG wheel enable playback in image by image mode. Front panel buttons are highlighted in green. All active buttons are highlighted. The number of active buttons depends on DVR operation mode (Live view, playback, PTZ control). All rights reserved © NOVUS Security Sp. z o.o.
- Page 15 In PTZ mode, button is used to create observation pattern in the camera menu. 14. BUTTON In live monitoring mode, button opens archive menu. In PTZ mode, button starts previously chosen pattern. All rights reserved © NOVUS Security Sp. z o.o.
- Page 16 These Buttons are used to navigate the menu and to set menu ▲ ▼ ► ◄ values. In PTZ mode, the buttons are used to move cameras. In ZOOM mode, the buttons change observation area. All rights reserved © NOVUS Security Sp. z o.o.
-
Page 17: Hdd Installation
System loading may last about 30 seconds. It is strongly recommended not to initialize any function or press any button during that time. Switching power button into OFF position turns the recorder off. All rights reserved © NOVUS Security Sp. z o.o. -
Page 18: Recorder's Me U
Sometimes it is necessary to enter the name or a title. When such field is chosen virtual keyboard appears. To choose a letter use navigation buttons and confirmed your choice by button. For capital letters use button. button deletes last letter entered. All rights reserved © NOVUS Security Sp. z o.o. -
Page 19: Recorder's Operatio
Sequence display is set in DISPLAY menu, SEQUENCE submenu. To start sequence display on SPOT monitors set SPOT-OUT in the DVR DISPLAY menu. Widok dla NV-DVR1600 All rights reserved © NOVUS Security Sp. z o.o. -
Page 20: Playing Recorded Video
Using navigation keys user can choose search by time or search by event mode. From search menu user can switch directly to archiving menu. If search by time mode was chosen, next window appears: All rights reserved © NOVUS Security Sp. z o.o. - Page 21 . To start searching user should press the START button and confirms it by enter button To display the event recording chose event by navigation keys and press enter button. All rights reserved © NOVUS Security Sp. z o.o.
- Page 22 NV-DVR4508(S)/DVD / NV-DVR4516(S)/DVD 1.1 version - User’s manual short form OTES All rights reserved © NOVUS Security Sp. z o.o.
- Page 23 NV-DVR4508(S)/DVD / NV-DVR4516(S)/DVD 1.1 version - User’s manual short form OTES All rights reserved © NOVUS Security Sp. z o.o.
- Page 24 NOVUS Security Sp. z o.o. ul. Puławska 431, 02-801 Warszawa tel.: (22) 546 0 700, fax: (22) 546 0 719 www.novuscctv.com 2008-11-13...
