U s e r 's m a n u a l
NV-DVR3009
NV-DVR3016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV-DVR3009 and is the answer not in the manual?

Questions and answers

Related Manuals for Novus NV-DVR3009

Summary of Contents for Novus NV-DVR3009

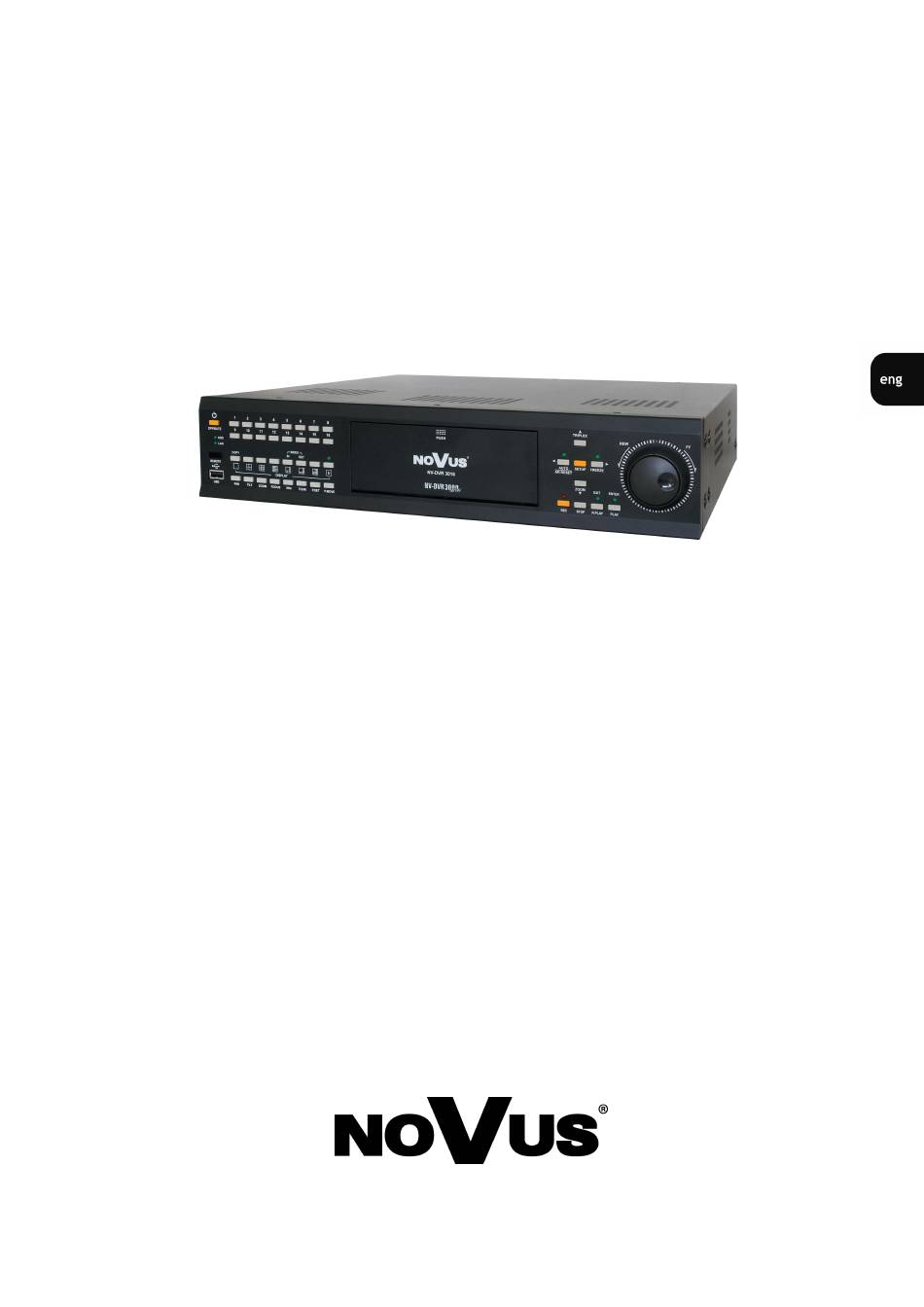

  • Page 1 U s e r ’s m a n u a l NV-DVR3009 NV-DVR3016...
  • Page 2 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual INFORMATION EMC (89/336/EEC) and LVD (73/23/EEC) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives: : • Electromagnetic compatibility EMC 89/336/EEC with further amendments •...
  • Page 3 INFORMATION All the data included in this manual are up to date at the moment of printing this manual. Novus Security Sp. z o.o. reserves the right to amend this manual. The producer reserves the right to modify multiplexer’s parameters and change its design without notice.
  • Page 4 4. The multiplexer has to be protected against humidity and dust. In case the multiplexer had a contact with water react immediately: switch off the power supply and contact the authorised Novus service. If the device gets dirty it might get damaged or electrocute someone.

  • Page 5: Table Of Contents

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual TABLE OF CONTENTS 1. FOREWORD INFORMATION....................7 1.1 Main Characteristics......................7 1.2 NV-DVR3009/NV-DVR3016 technical data..............8 2. STARTING THE DEVICE..................... 10 2.1 Unpacking the Device..................... 10 2.2 Electrical Connection and Other Back Panel Elements ..........11 2.3 Connecting of Peripheral Equipment................
  • Page 6 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual TABLE OF CONTENTS 4. SCHEDULE PROGRAMMING ......................59 5. PLAYBACK............................64 5.1 Playback from Multiplexer’s HDDs ..................... 64 5.2 Backup Playback........................... 66 5.2.1 Backup HDD Search ......................66 5.2.2 USB HDD Search....................... 67 5.2.3 USB Memory Search......................

  • Page 7: Foreword Information

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual FOREWORD INFORMATION 1. FOREWORD INFORMATION 1.1 Main Characteristics MPEG4 compression with configuration of image quality parameters. Recording speed of up to 100 frames per second. Straightaway access to any part of the recorded material thanks to advanced search functions.

  • Page 8: Nv-Dvr3009/Nv-Dvr3016 Technical Data

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual FOREWORD INFORMATION 1.2. NV-DVR3009 / NV-DVR3016 technical data NV-DVR3009 NV-DVR3016 Work mode quadroplex (simultaneous recording, live monitoring, playback and networking) 9 loop-through inputs (BNC), 16 loop-through inputs (BNC), Video Inputs 1Vp-p/75 1Vp-p/75...
  • Page 9 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual FOREWORD INFORMATION NV-DVR3009 NV-DVR3016 1 x Ethernet - RJ-45 connector, 10Mbit/sec, External 1 x USB to connect external memory carriers 1 x IEEE1394 to connect external memory carriers 1 x RS-485 - to connect speed dome cameras...

  • Page 10: Starting The Device

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE 2. STARTING THE DEVICE 2.1 Unpacking the Device Please act carefully when unpacking. Make sure if the following things are included. NV-DVR3009 IR Remote Control Power Cord IDE Data Cable...

  • Page 11: Electrical Connection And Other Back Panel Elements

    ATTENTION: Not all LCD monitors work with the multiplexer using VGA output. Before you connect the monitor make sure it operates in the 720x576 50Hz format or contact your Novus distributor. All rights reserved © NOVUS Security Sp. z o.o.
  • Page 12 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE NV-DVR3016 SENSOR IN alarm inputs, which can be set from the menu level as normally open (N.O.) or normally closed (N.C.), 16 or 9 depending on the model ALARM OUT 4 alarm outputs;...

  • Page 13: Connecting Of Peripheral Equipment

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE 2.3 Connecting of Peripheral Equipment System connecting should be done by a qualified staff. Before connecting system elements you need to familiarise yourself with the diagram presented below, which is a pictorial diagram. Depending on requirements, specific system will consist of a different number peripheral devices.

  • Page 14: Front Panel Description

    (LED diode above the button lights up). Particular user screens within a given mode are selected by means of alphanumeric buttons from 1 to 8 (or 6 for NV-DVR3009). Connector used for connecting external data carrier or mouse.
  • Page 15 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE NV-DVR3016 Signalling diodes. A diode marked as HDD informs about disk (disks) operation. LAN diode informs about network connection. AR RESET This button allows you to cancel alarm (if menu settings allow you to do this)
  • Page 16 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE NV-DVR3016 ZOOM Digital enhancement button. After pressing it, a blue rectangle appears on the screen that specifies the area to be enhanced. Pressing ENTER enhances the area 2, 3, and 4 times, and next exit the zoom mode. In order to move the zoom window use cursors.

  • Page 17: Installation Of Hdds

    STARTING THE DEVICE 2.5 Installation of HDDs NV-DVR3009 and NV-DVR3016 allow you to install 4 HDDs or 3 HDDs and a CD/DVD recorder. If a recorder is not installed one of the HDDs can be installed in the swappable bay.

  • Page 18: Switching On/Off

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual STARTING THE DEVICE 2.6 Switching On/Off ATENTION: Before you switch the device on make sure that power supply fulfills the requirements of the device. Only then can you plug the multiplexer in.

  • Page 19: Multiplexer's Menu

    MULTIPLEXER’S MENU 3. MULTIPLEXER’S MENU NV-DVR3009 and NV-DVR3016 multiplexers have a multilevel menu displayed on the screen that is used for programming multiplexer’s settings as well as controlling recording and playback function. The menu for 9- and 16– channel devices differs in some aspects only, so there are 9 or 16 channels, alarm inputs etc.

  • Page 20: Camera Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.1 Camera Setup There are four submenus concerning camera parameters, and, additionally, one system video choice menu in the Camera Setup menu. 3.1.1 Camera Control After selecting this submenu and pressing...

  • Page 21: Camera Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.1.2 Camera Setup After entering this submenu setting edition window appears on the screen. This window applies to cameras whose number is displayed on the bottom as Ch1, Ch2..Ch9 (or up to Ch16). In order change the camera whose settings will be edited press one of the numeric buttons.
  • Page 22 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU Ticking makes the PTZ camera react contrary to standard settings when selecting • Reverse Pan command, that is change in camera turn from “right turn” to “left turn” and the Turn around other way round.

  • Page 23: Pan/Tilt Model

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.1.3 Pan/Tilt Model After entering this submenu setting edition window concerning telemetry protocols is displayed on the screen. In order to assure a proper multiplexer cooperation with PTZ cameras, the settings should be in accordance with the settings in the cameras.

  • Page 24: Video Format

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.1.4 Video Format After entering this submenu video system selection window appears on the screen. You can choose either PAL or NTSC. All rights reserved © NOVUS Security Sp. z o.o.

  • Page 25: Recording Setup

    Recording Setup menu. 3.2.1 Schedule Recording NV-DVR3009 and NV-DVR3016 multiplexer have an advanced recording schedule allowing users to differentiate recording parameters for particular weekdays for each camera. In order for the multiplexer to record according to schedule please select in the...
  • Page 26 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU There is possibility of viewing settings for particular cameras and hours. To do this press (user split screen). Below you can find an exemplary schedule in such a version. Recording parameters are displayed for each camera and each hour. You can move through the hours and channels by means of cursors.

  • Page 27: Manual Recording

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.2.2 Manual Recording The multiplexer can record according to schedule or the recording can be switched on and off manually. To record manually please select Manual Recording in the Recording Setup field.
  • Page 28 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU In order to change settings for particular cameras or quality settings select required position and • press ENTER. In the first section users choose whether continuous recording should be carried out (Always) and set its speed.

  • Page 29: Events

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.2.3 Events After entering submenu, an alarm options setting window and motion detection window for a Events camera whose number and name are displayed at the bottom appear on the screen.

  • Page 30: Time Estimation

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU After selecting Sensitivity test activity grid is displayed on the screen. Active areas are highlighted in green. Areas where at the set rate of sensitivity motion has been detected turn their color to blue. At the bottom there is a slider which allows you to adjust sensitivity.

  • Page 31: Sensor/Alarm Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.3 Sensor/Alarm Setup In the menu there are three submenus concerning alarm inputs and outputs, as well Sensor/Alarm Setup as general alarm functions. 3.3.1 Sensor Name After entering Sensor Name submenu a window with names assigned to subsequent alarm inputs is displayed on the screen.

  • Page 32: Alarm Link

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.3.2 Alarm Link In the submenu reactions to different alarm events and types of alarm outputs are Alarm Link Setup defined. The settings are defined for each of the four outputs individually. The alarm output can be found at the bottom of the window.

  • Page 33: Alarm Buzzer

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU Additionally, at the bottom, there two system events that may start the alarm or alarm output. These are: Network Failed ♦ HDD Failed ♦ Additionally, the following window appears on the screen:...

  • Page 34: User Define Screen

    . Assigning a camera to a given window on the screen is done by pressing a numeric button corresponding to a given camera. Attention: Within one user screen, particular cameras can be displayed only once. The following example user screen layouts are available (for NV-DVR3009). All rights reserved © NOVUS Security Sp. z o.o.

  • Page 35: Audio Setup

    MULTIPLEXER’S MENU 3.5 Audio Setup NV-DVR3009 and NV-DVR3016 multiplexers allow users to record 4 audio channels at all image recording speeds. The signal is recorded at the speed of 8kB/s. Input signal should come from a dynamic microphone (i.e. microphone installed in a camera).

  • Page 36: Menu Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.6 Menu Setup The following parameters are defined in the Menu Setup In the Language position it is possible to select one of the languages available on the list •...

  • Page 37: System

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7 System There are a few submenus in the System menu. 3.7.1 Log View After entering submenu it is possible to take a look at the register containing information Log View about system history.
  • Page 38 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU allows users to display all the registered events. Sensor allows users to filter entries as far as events concerning stimulation of alarm inputs or motion detection are concerned. allows users to filter entries as far as events concerning HDDs are concerned.

  • Page 39: Hdd Management

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.2 HDD Management Attention: Entry to the HDD Management submenu during recording will stop the recording. You will be informed about it by the following message. After entering HDD Management submenu the list of all HDDs installed in the device as well as connected to it via FireWire or USB ports.
  • Page 40 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU Additionally, the following settings are available in his submenu: Ticking allows users to automatically record in the overwriting • Overwrite Disk When Disk Full mode, that is when the whole space on all disk has been used up older recording are overwritten.
  • Page 41 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU It is possible to obtain more accurate data on particular disks and to change their operation mode. After selecting disk information window and pressing ENTER it is possible to select a required HDD. After pressing detailed disk’s settings windows appears.

  • Page 42: Hdd Backup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.3 HDD Backup Form the level of submenu users can copy recordings onto swappable HDD, USB disk or HDD Backup a CD/DVD (depending on the multiplexer model). In the field time frames are set.

  • Page 43: Auto Select

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.4 Auto Select In the submenu camera sequence display parameters shown on the main monitors are set. Auto Select (after pressing Auto Select In the Interval field display time (from 1 to 300 seconds) from particular cameras is defined.

  • Page 44: Video Output

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.5 Video Output In the Video Output submenu users define what will be displayed on a spot monitor. After selecting , the same images that are displayed on the main monitor are Monitor Output •...
  • Page 45 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU Video output method - Selecting Scale To15/16 changes image height-to-width proportions • VGA Output Enable - ticking this item, main monitor VGA output is activated, • the output operates in the RGB mode that is commonly used in computer monitors.

  • Page 46: Administration

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6 Administration There are nine options in the Administration submenu. option allows users to lock the front panel buttons (apart from • Lock Front Button OPERATE ). It may prevent accidental switching on or off of some functions. A message SETUP appears when you when you press a locked button.

  • Page 47: Network Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.1 Network Setup Network connection parameters are set in this submenu. Static IP, Subnet Mask, Gateway, DNS Server Addresses and Web Server Port Number, • on which connection with the device is established.

  • Page 48: Date And Time

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.2 Date/Time Setup Date, system time and the format of these two things is set in this submenu. - means year - means month – means day There is current date and time at the bottom of the window.

  • Page 49: Daylight Saving

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.2.2 Daylight Saving This menu allows to define day light saving feature parameters. Ticking Use Daylight Saving causes automatic system clock adjusting 2 times a year when • standard time is changed. Depending on country regulation user is able to set the period of daylight saving.

  • Page 50: Password

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.3 Password In this submenu user accounts are modified and added (their passwords and privileges). Selecting Use Password means that user identification is required during operation the device. Selecting this item for the firs time master 8 digit password is generated once. Remember this password or save in a secret place.
  • Page 51 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU In order to change a given user’s privileges and their password you have to select it on the list and press . User password is input by means of numeric buttons. It has to contain at least four digits.

  • Page 52: Web Passwords

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.4 Web Password Network user accounts are added and modified in the submenu. It is possible to create 5 user accounts with different privileges. These accounts are independent of the local accounts described on the previous pages.
  • Page 53 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU It is possible to assign PTZ camera privileges and privileges connected with viewing particular camera images to each user. Attention: These settings only apply to connections established vie web browser. Giving and withdrawing access to cameras and PTZ control as far as establishing connection by means of N-Viewer 3000 software is concerned is done after logging in as the admin.

  • Page 54: Update Program

    Due to the fact the producer of the multiplexer constantly tries to modernize the device it will be possible to update the software and more advanced versions will be available for all the users. Please contact your Novus distributor for any news about the updates. 3.7.6.6 Covert Channel...

  • Page 55: Mail Notification

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.6.7 Mail Notification The device is capable of sending email messages with the information about the system status. You are advised to use this option in a wise way so that wrong configuration of sending parameters may cause that a lot of emails will be sent and it may block the email server.
  • Page 56 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU In the tab there is a list of settings defining the content of the sent emails. Conditions • In the field users define which type of system events should trigger sending emails to a •...

  • Page 57: Configuration Setup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S MENU 3.7.7 Configuration Setup The device allows users to save menu settings so that it is possible to restore or to use them as default settings in another device of the same type. The settings are copied in the form of a catalogue onto a memory carrier connected to the USB port.

  • Page 58: Keypad Setup

    Parameters connected with the cooperation of the multiplexer and system keyboard are set in this menu. NV-DVR3009 and NV-DVR3016 multiplexers can be remotely controlled only from the level of the NV-KBD60 or NV-KBD30 system keyboards. Due to the use of RS-422 interface, remote control room can be placed even up to 1200 meters from the multiplexer.

  • Page 59: Schedule Programming

    Schedule programming is described on the example. It has been assumed that the schedule has not been programmed for the NV-DVR3009 multiplexer or has its default settings. In such a case the schedule for all days will look in the following way: Site characteristics entails the following recording parameters: From Monday to Friday images from channels 1-5 will be recorded continuously from 10 a.m.
  • Page 60 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual SCHEDULE PROGRAMMING In order to program Schedule go to Recording Schedule . In the day selection window should be seen. Next press ENTER to access edition menu (upper left graph rectangle, corresponding to one hour will change its color to white).
  • Page 61 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual SCHEDULE PROGRAMMING Settings for channel No 1 should be copied for channels 2-5. To do that choose Copy to . In the Copy to window select Source Channel 1 and press channel numbers...
  • Page 62 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual SCHEDULE PROGRAMMING Next copy the settings created for Monday and load them for Tuesday, Wednesday, Thursday and Friday by pressing , and selecting required days. Copy to Settings for Saturday and Sunday shall also be input. To do that copy the from, i.e. Friday, copy settings to other channels from channel No 6.
  • Page 63 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual SCHEDULE PROGRAMMING The last stage of programming the schedule is its programming for 24th and 25th December. To do that go to and select . Tick in the window that appears and set Specific days...

  • Page 64: Playback

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PLAYBACK 5. PLAYBACK Recordings playback during recording is not a problem for NV-DVR3009 and NV-DVR3016 multiplexers. In order to enter playback menu press PLAY In the Recorded Time field there is information about the time period from which recordings can be found on HDD - time and date of the first and last recording.
  • Page 65 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PLAYBACK During playback different display modes (splits, ) described in chapter 2.4 are available. TRIPLEX Some display mode buttons have different function in the playback mode then the one described below them.

  • Page 66: Backup Playback

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PLAYBACK 5.2 Backup Playback. The multiplexer allows users to playback the copy of recordings created on the disk (operating in the copy mode), flash memory or on a CD/DVD. 5.2.1 Backup HDD Search...

  • Page 67: Usb Hdd Search

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PLAYBACK 5.2.2 USB HDD Search If the disk, on which the copy is found, has been connected via USB port, select USB HDD Search display its contents. Playback is exactly the same as with the playback from the swappable bay disk and is described in chapter 5.1.1.

  • Page 68: Recording Event List

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PLAYBACK 5.3 Recording Event List In case the multiplexers has been operating in the alarm recording mode it is possible to view alarm recordings. To do that select Recording Event List . Alarm recordings list is displayed on the screen.

  • Page 69: Recordings Backup

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual BACKUP 6. RECORDINGS BACKUP NV-DVR3009 and NV-DVR3016 multiplexers allow users to create backup of recorded material. It is possible to copy single images and full sequences creating in this way backup copy of a given part of recordings.

  • Page 70: Recordings Backup Onto Swappable Disk

    6.2 Recordings Backup onto Swappable Disk. NV-DVR3009 and NV-DVR3016 allow users to backup recordings onto a swappable disk. In order for the user to be able to backup recordings onto a swappable disk it has to be set to Copy mode (see chapter 3.7.2).
  • Page 71 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual BACKUP Apart from the usual method of introducing time period in the Start fields users can select recordings chosen for copying in another way. It is done during playback. In order to select the range of material to be copied start playback and press INDEX IN on the front panel at the moment the part of the material you are interested in starts to be played back.

  • Page 72: Recordings Backup Onto External Disk Via Usb Port

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual BACKUP 6.3 Recordings Backup onto External Disk via USB Port It is possible to backup recordings onto an external HDD connected via USB port. Backup files can be played back on the multiplexer or a computer by means of N-Viewer 3000 software.

  • Page 73: Recordings Backup Onto External Disk Via Firewire Port

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual BACKUP 6.5 Recordings Backup onto External Disk via FireWire Port It is possible to backup recordings onto an external HDD connected via FireWire port. If you wan to copy recordings in this way make sure that this disk is set as copy-disk in the multiplexer’s menu.

  • Page 74: Recordings Backup Onto Cd/Dvd

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual BACKUP 6.6 Recordings Backup onto CD/DVD The multiplexers allow users to backup recordings onto a CD or DVD. You can use both CD-R/DVD- R and CD-RWDVD-RW. It is possible to create many sessions on one CD/DVD. The material is copied into its own *.603 format.

  • Page 75: Connecting Additional Hdds

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual CONNECTING ADDITIONAL HDDs 7. CONNECTING ADDITIONAL HDDs You can connect additional HDDs to the multiplexer that can be used as disks for creating copies or enlarging the space used for recording. The whole range HDDs is available on the market but the manufacturer advises the usage of the disks that are identical with the ones inside the device.

  • Page 76: Ptz Cameras

    PTZ CAMERAS 8. PTZ CAMERAS NV-DVR3009 and NV-DVR3016 multiplexers allow users to control up to 9 or 16 cameras connected in the daisy-chain way through the RS-485 bus. These can be PTZ cameras, standard cameras with optical or digital zoom. The camera control can be done by means of front panel buttons, remote control, Internet Explorer browser or N-Viewer 3000 software.
  • Page 77 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PTZ CAMERAS NV-DVR3016 UTP 5th Cat device max Novus CAMA I Novus CAMA I 9 (16) All rights reserved © NOVUS Security Sp. z o.o.

  • Page 78: Menu Configuration

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PTZ CAMERAS 8.2 Menu Configuration In order for the user to be able to control the cameras the protocol and transmission parameters according the ones selected in the camera. To do this go to...

  • Page 79: Ptz Camera Control

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PTZ CAMERAS In the field select protocol. Model Novus-C In the field select the camera address that is to be controlled after accessing a given Control ID multiplexer’s channel. The address corresponds to the channel number for which the settings have been configured by default.
  • Page 80 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PTZ CAMERAS Below you have ways of taking advantage of different camera functions: PAN: Press and it becomes highlighted in blue. Turning the ring makes the camera move, SHUTTLE different ring angle changes the speed of PAN;...

  • Page 81: Control By Means Of Ir Remote Control

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual PTZ CAMERAS 8.3.2 Control by Means of IR Remote Control Description of IR Remote Control buttons: - activating control menu SHUTTLE - selecting camera to be controlled ENTER SHUTTLE Detailed description of the IR remote control functions can be found in chapter 10.

  • Page 82: Connecting Devices To Alarm Inputs And Outputs

    CONNECTING DEVICES TO ALARM INPUTS AND OUTPUTS 9. CONNECTING DEVICES TO ALARM INPUTS AND OUTPUTS NV-DVR3009 and NV-DVR3016 have 9 or 16 alarm inputs allowing to connect external devices. Connectors to connect cords have easy-to-use screw terminals. Grounding (G) is the first pin to the left in the first connector.
  • Page 83 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual CONNECTING DEVICES TO ALARM INPUTS AND OUTPUTS NV-DVR3009 and NV-DVR3016 have 4 alarm outputs that can trigger external devices. Connectors to connect cords have easy-to-use screw terminal that can be taken out. Grounding (G) is the first pin to the left.

  • Page 84: Multiplexer's Operation From The Level Of Ir Remote Control

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S OPERATION FROM THE LEVEL OF IR REMOTE 10. MULTIPLEXER’S OPERATION FROM THE LEVEL OF IR REMOTE CONTROL The range of the remote control depends on the batteries condition and oscillates from few to several meters.
  • Page 85 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S OPERATION FROM THE LEVEL OF IR REMOTE Before starting controlling multiplexer by means of IR remote control make sure it is not blocked in the multiplexer’s menu (see chapter 3.7.6) To select a multiplexer that will controlled point the remote control at the IR receiver that can be found on the multiplexer’s front panel, press the numeric button corresponding to a given multiplexer’s ID...

  • Page 86: Multiplexer's Operation From The Level Of System Keyboards

    MULTIPLEXER’S OPERATION FROM THE LEVEL OF SYSTEM 11. MULTIPLEXER’S OPERATION FROM THE LEVEL OF SYSTEM KEYBOARDS NV-DVR3009 and NV-DVR3016 can be remotely controlled from the level of NV-KBD60 or NV-KBD30 keyboards. It is possible to control many multiplexers from the level of one keyboard (up to 10).

  • Page 87: Multiplexer's Operation By Means Of Computer Mouse

    MULTIPLEXER’S OPERATION BY MEANS OF COMPUTER MOUSE 12. MULTIPLEXER’S OPERATION BY MEANS OF COMPUTER MOUSE NV-DVR3009 and NV-DVR3016 multiplexers can be operated from the level of computer mouse with USB interface. Notice: PTZ control is not available from the level of the computer mouse.
  • Page 88 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual MULTIPLEXER’S OPERATION BY MEANS OF COMPUTER MOUSE Setup Mode • Click right mouse button and main mouse-control menu is displayed on the screen, click first icon to display main DVR menu. Left button clicking selecting items. Double left clicking enters sub-menus. Scroll wheel allows to change values.

  • Page 89: Computer Netwotk Connections

    NV-DVR3009 and NV-DVR3016 multiplexers can work in the computer network over the TCP/IP protocol. Attention: Novus is not a distributor of servers, routers or other network devices which have influence on proper network operation. The user of administrator is responsible for the proper configuration of these devices.

  • Page 90: Live Monitoring

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual COMPUTER NETWOTK CONNECTIONS 13.2 Live Monitoring in order to establish connection with the multiplexer put in the browser’s address tab multiplexer’s IP address (preceded by the http:// phrase) i.e. http://192.168.0.12. If in the multiplexer’s menu some other transmission port than 80 has been selected it needs to be written at the end preceded by colon, i.e.

  • Page 91: Recordings Playback

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual COMPUTER NETWOTK CONNECTIONS 13.3 Recordings Playback In order to establish connection with the multiplexer in the playback mode you need to press PLAY button in the monitoring mode. After a while graphic interface presented below appears on the screen.

  • Page 92: Appendix - Maximum Available Recording Speed Chart

    NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual APPENDIX - MAXIMUM AVAILABLE RECORDING SPEED CHART Maximum recording speeds for particular channels depend on the quantity of recorded channels and resolution. It is possible to increase channel recording speed at the expense of other channels.
  • Page 93 NV-DVR3009 / NV-DVR3016 ver. 1.1 - User’s manual NOTES All rights reserved © NOVUS Security Sp. z o.o.
