Summary of Contents for FAAC 424 MPS

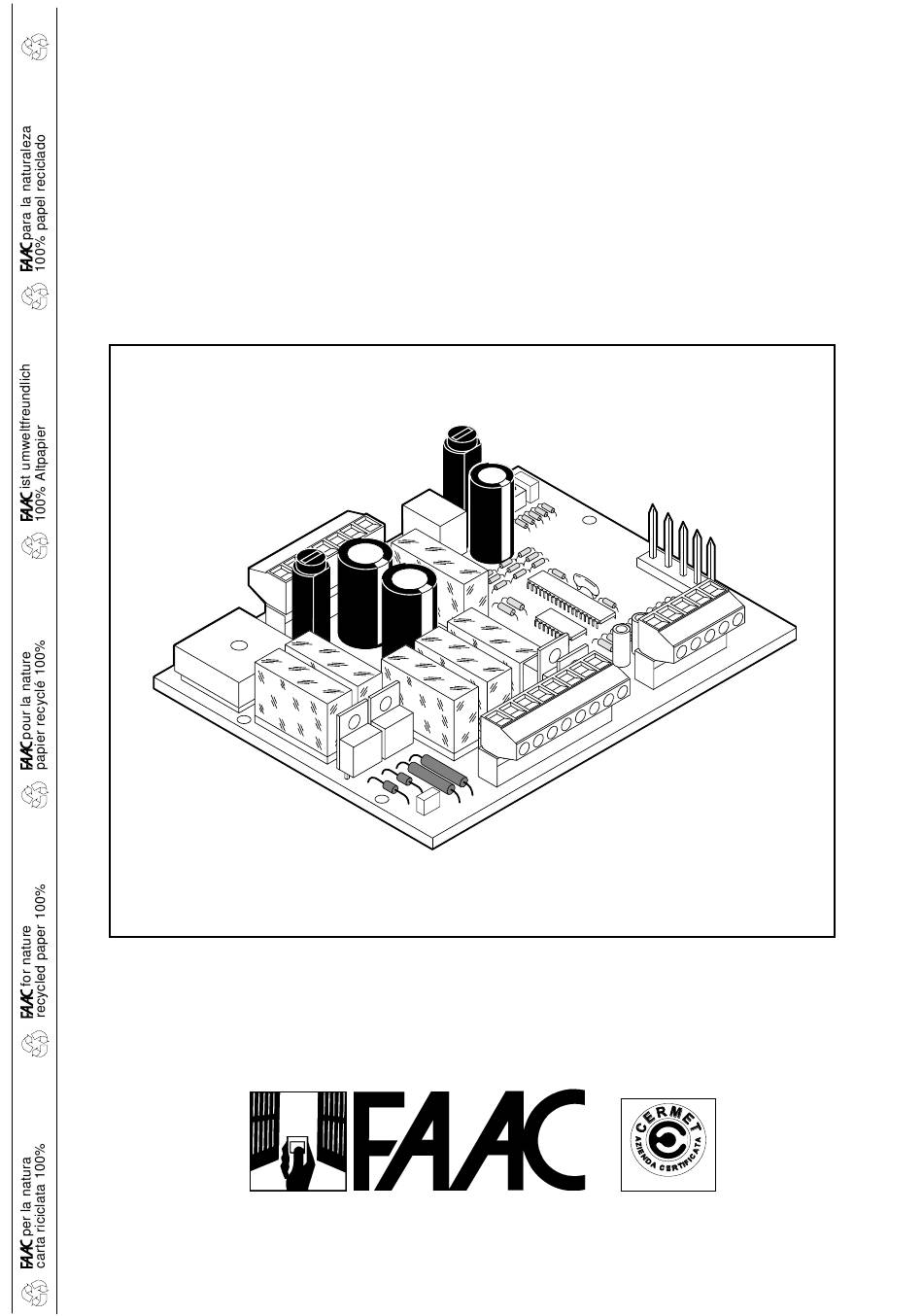

  • Page 1 424 MPS 424 MPS UNI EN ISO 9001-085...

  • Page 2: Ce Declaration Of Conformity

    • conforms to the essential safety requirements of the following directives: 73/23/EEC and subsequent amendment 93/68/EEC. 89/336/EEC and subsequent amendment 92/31/CEE and 93/68/EEC Additional information: This product underwent tests in a typical, uniform configuration (all products manufactured by FAAC S.p.A.). Bologna 01 January 2000 The Managing Director A. Bassi...

  • Page 3: General Characteristics

    ENGLISH ENGLISH MICROPROCESSOR CONTROL UNIT FOR 24 Vdc SWING-LEAF GATES 1. GENERAL CHARACTERISTICS Thank to its high powered microprocessor, this control unit for 24 Vdc swing-leaf gates offers a wide range of functions and adjustments, including deceleration and motor control. A sophisticated electronic control monitors the power circuit at all times and disables the control unit in the event of malfunctions that could impair efficiency of the electronic clutch.

  • Page 4: Technical Specifications

    ENGLISH ENGLISH 3. TECHNICAL SPECIFICATIONS 5. CONNECTIONS AND OPERATION Supply voltage of transformer 230V~ (+ 6 % - 10 %) 50Hz 5.1 TERMINAL BOARD M1 Supply voltage of control unit 22V~ (+ 6 % - 10 %) 50Hz 22V power supply Power consumption Terminals “1-2”.
  • Page 5 ENGLISH ENGLISH OPEN-A 9. PROGRAMMING Terminals “16-19”. Any device (e.g. push-button, remote control, Programming of work times, deceleration and electronic clutch etc.) can be connected to this circuit. is executed during self-learning. At this stage, leaf movement is By closing a contact, the circuit generates a pulse for total at slow speed.
  • Page 6 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
