Sime Format 30 HE Installation And Servicing Instructions page 12

7
ATTENTION: After having removed the three screws (7) tilt the
panel downwards to gain access.

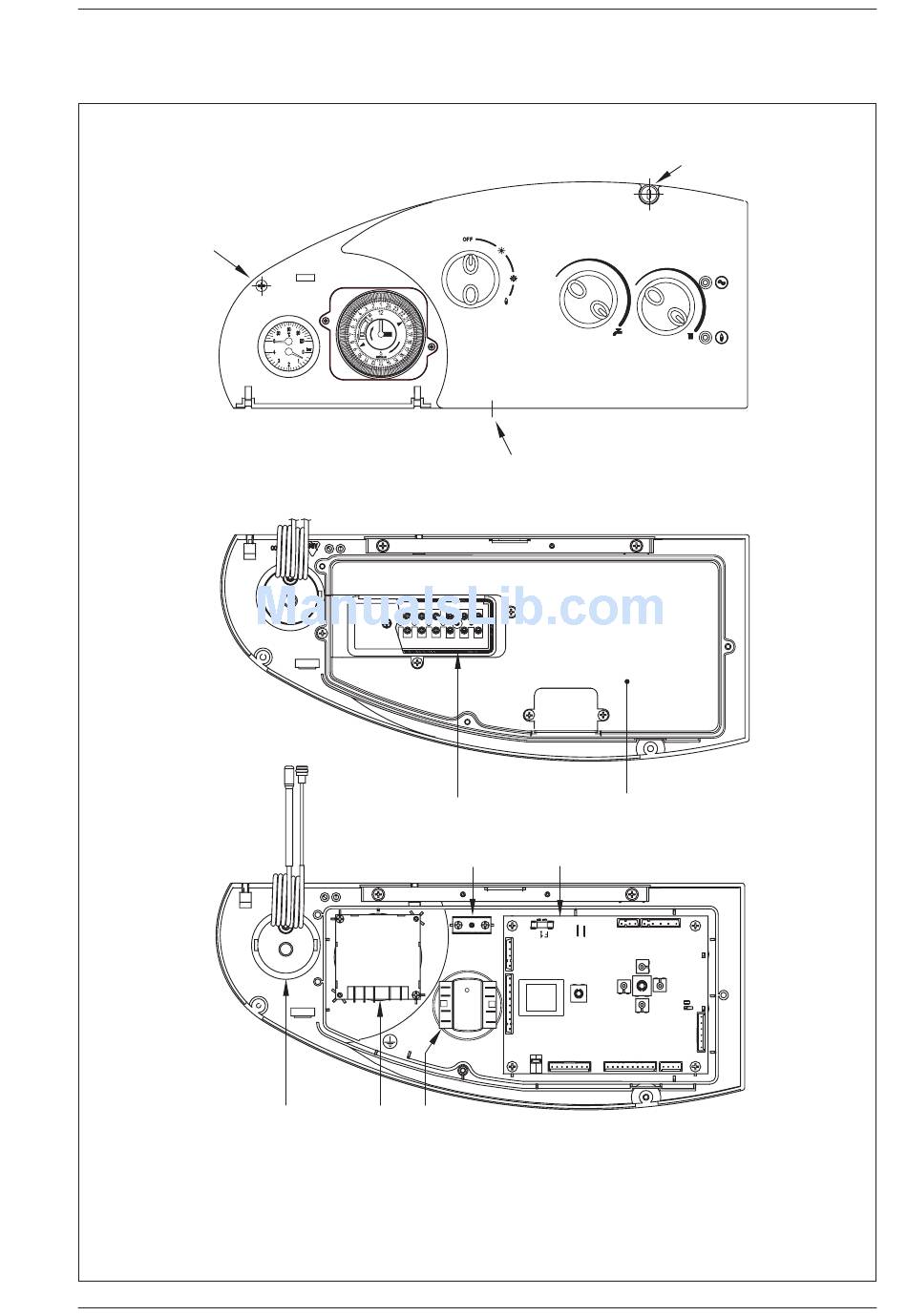

KEY
1 Pressure/temperature gauge
2 Heating programmer (optional)
3 Earth faston
4 Main electronic board
12
1 8
2
7
6
5
3
4
5 9 pole terminal strip
6 Control panel cover
7 Fixing screw
8 Selector OFF/SUMMER/WINTER/RESET
7
Fig. 12
