Carel CompactSteam User Manual

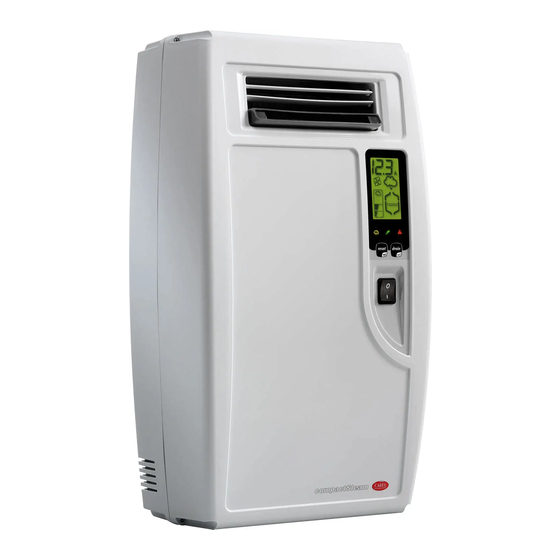

Residential steam humidifier
Hide thumbs
Also See for CompactSteam:
- User manual (66 pages) ,
- Replacement instructions (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Carel CompactSteam
Summary of Contents for Carel CompactSteam

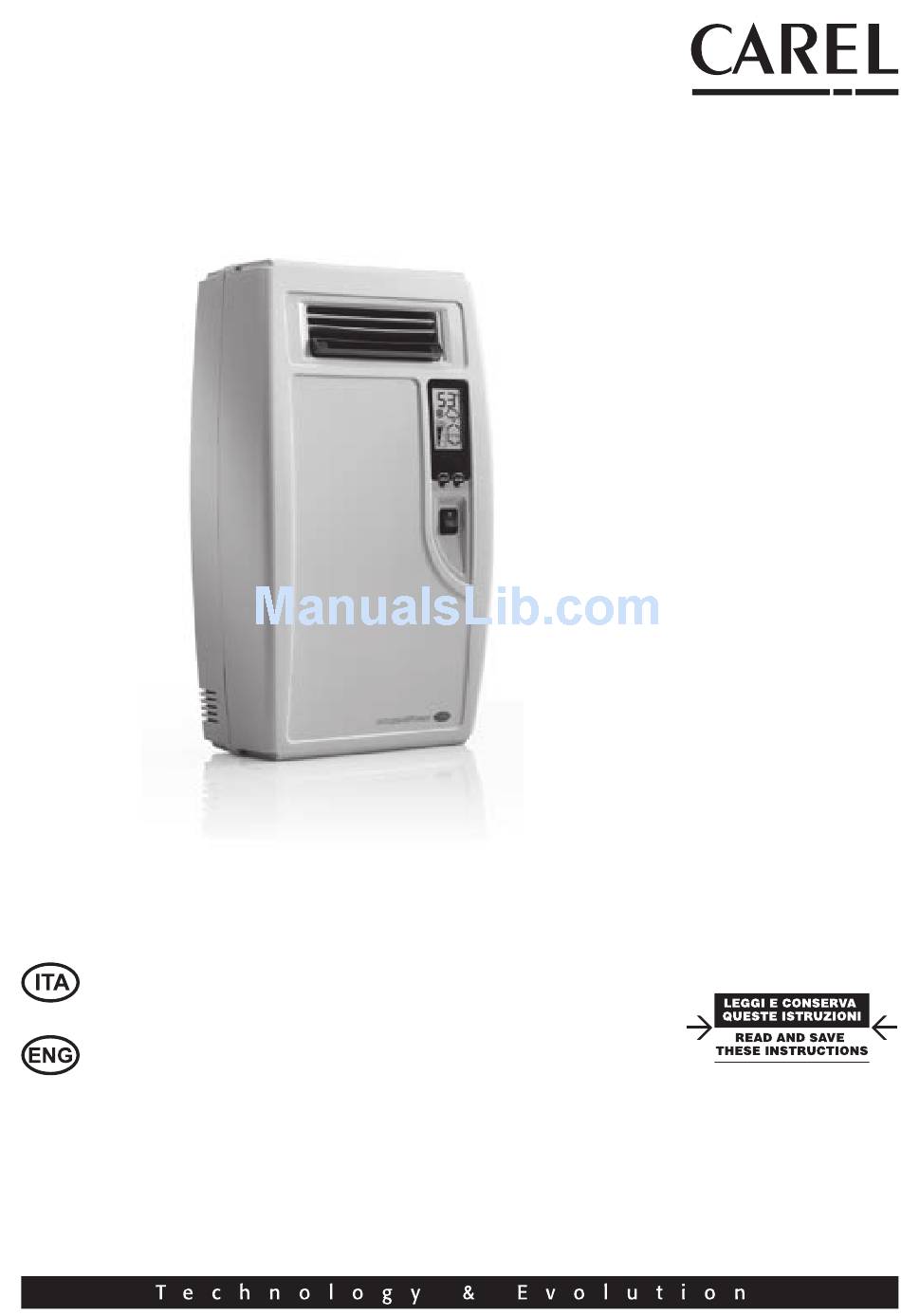

- Page 1 Umidifi catore a vapore per ambienti residenziali Residential Steam Humidifi er Manuale d’uso User manual...
- Page 3 User manual compactSteam +030222070 - rel. 1.0 - 09.07.2008...
- Page 4 Warning If present, remove the following items: Close the cylinder clamp Remove before installing Remove before installing Remove before installing Remove before installing Remove before installing compactSteam +030222070 - rel. 1.0 - 09.07.2008...
- Page 5 The technical specifications shown in the manual may be changed without prior warning. The liability of CAREL S.p.A. in relation to its products is specified in the CAREL S.p.A. general contract conditions, available on the website www.carel.com and/or by specific agreements with customers;...
- Page 6 +030222070 - rel. 1.0 - 09.07.2008...
-
Page 7: Table Of Contents
5.3 Manual drain cycle ..........................22 5.4 Resetting the hour counter .........................23 5.5 Alarms ..............................23 6. TROUBLESHOOTING 7. MAINTENANCE 7.1 Periodical checks ............................25 7.2 Cylinder maintenance ...........................25 7.3 Spare parts ..............................26 8. TECHNICAL SPECIFICATIONS compactSteam +030222070 - rel. 1.0 - 09.07.2008... - Page 8 +030222070 - rel. 1.0 - 09.07.2008...
-
Page 9: Compactsteam Operation
Tab. 1.a No. Description cylinder steam generator steam blower (optional) user interface/display On/Off button fill and tempering valves drain pump Tab. 1.b Fig. 1.b compactSteam +030222070 - rel. 1.0 - 09.07.2008... -
Page 10: Cylinder Life
For this reason, models CH*05***** are preset with a maximum production of 70% of the Fig.1.c rated value. Figure 1.c shows the relationship between the maximum steam production and cylinder life. compactSteam pompa +030222070 - rel. 1.0 - 09.07.2008... -
Page 11: Models
Fig.2.b Fig.2.a compactSteam is made in various models that differ in terms of capacity (kg of steam produced per hour) and voltage (the voltage depends on the national grid). Each model is identified by a 10-character alphanumeric code. The meaning of each character is shown below:... -
Page 12: Installation
204 mm 8.1” 600 mm 23.7” Kilograms Pounds Empty weight 8 kg 18 lbs Packaged weight 10 kg 22 lbs Fig. 3.e Weight installed + water 12 kg 26 lbs Tab. 3.c compactSteam pompa +030222070 - rel. 1.0 - 09.07.2008... - Page 13 Instructions for fastening to the wall: drill the holes in the wall according to the drilling template supplied; fasten compactSteam to the wall using the screws and the anchors supplied. Fig 3.f shows the measurements in mm (inches in brackets) for wall-mounting.
-
Page 14: Characteristics Of The Supply Water
Fig. 3.h. Connect the humidifier to the mains water supply using a hose capable absorbing water hammer, to avoid damaging the fill valve. The hoses are identified by the following CAREL codes: FWH3415000 (1.5 m long), FWH3 430000 (3 m long). Alternatively, a hose with a minimum inside diameter of 6 mm can be used. -
Page 15: Steam Distribution
Fill valve and filter The compactSteam unit is fitted with a tempering valve that, opening at the same time as the pump, adds cold water to the drain line, thus ensuring a maximum temperature of the drain water of 60°C /140°F. - Page 16 During operation some of the steam may condense, causing a decline in efficiency and noise (gurgling). To drain the condensate, connect a drain hose (CAREL code 1312353APG) with a drain trap and a minimum slope of 5° to the bottom of the humidifier (see Fig. 3.L). The condensate hose should run through the hole located at the top of the fill tank inside the humidifier, as illustrated in Fig 3.k.
- Page 17 Fig. 3.l ROOM steam distribution compactSteam can distribute the steam directly into the room being humidified. For direct humidification, both the compactSteam with built-in blower (CAREL code CHF*******) and the duct model (code CH0*******) can be used, the latter connected to a remote room blower (code VRDCHA1000 for 110 Vac models, and VRDCHA2000 for 230 Vac models).
-
Page 18: Electrical Connections
0 to 10 V signal generated by an external control device. The compactSteam unit can be connected to any simple or automatic humidistat, as well as safety devices such as limit humidistats, air flow switches and remote ON/OFF switches. To connect the external control devices, run the cables through the bottom of the unit until reaching the top of the control module, and secure them with the cable clamp (see Fig. -
Page 19: On/Off Operation
Input AB-AB closed, indicating that the fan has started (= enable steam production) compactSteam can be connected to an air flow switch (that is, a device that senses the flow of air generated by the fan in the duct). This flow sensor should be connected to the remote enabling input (terminals AB-AB) in series with a limit humidistat (normally closed). -
Page 20: Modulating Operation
SUPPLIED) RESPECT LOCAL CODES KEY FOR PROGRAMMING PORT = FILL VALVE = DRAIN PUMP POWER SUPPLY = DRAIN TEMPERING VALVE (110VAC 1-PHASE 50-60 HZ = HIGH-LEVEL SENSOR 230 VAC 1-PHASE 50-60HZ) Fig. 3.z compactSteam pompa +030222070 - rel. 1.0 - 09.07.2008... -
Page 21: Starting
• Press the START button (13), the unit starts and the display shows a sequence of characters. Once this initialisation phase has ended, the yellow power LED comes on and the compactSteam unit is ready to operate. • If there is demand for humidity, compactSteam delivers power to the electrodes in the cylinder, and the green LED comes on, indicating that operation has started. -
Page 22: Compactsteam Operation
5. COMPACTSTEAM OPERATION 5.1 Displaying information The information shown on the display during the normal operation of compactSteam is the instant current in amperes running between the electrodes. To display other information, press and hold the “reset/sel” button until the display shows the required information. When holding the button, every 2 seconds the display will scroll between the current, the percentage (%) of steam production, the hour counter and then the current again (Fig. -
Page 23: Resetting The Hour Counter
The hour counter must be set to zero whenever the cylinder is replaced, so as to cancel and restart the maintenance timer: Turn compactSteam off. Turn compactSteam on again, while holding the two buttons, “reset/sel” and “drain”, until the display shows“00” and the spanner symbol flashes; then release the two buttons. -
Page 24: Troubleshooting
High conductivity of the water. Replace the fill valve. Excessive foam forms. Consider using a mixture of demineralised water and untreated water. Check the cylinder and replace it if exhausted. Tab. 6a compactSteam pompa +030222070 - rel. 1.0 - 09.07.2008... -
Page 25: Maintenance
2. take out the screws and remove the drain pump; 3. clean drain pump with solution of vinegar or diluted acid and soft brush; 4. rinse the pump with fresh water; 5. replace if necessary. compactSteam +030222070 - rel. 1.0 - 09.07.2008... -
Page 26: Spare Parts
7 lbs/h 3.2 kg/h 125-350 CY0S1C0000 12 lbs/h 5.4 kg/h normal 350-1250 Default in compactSteam CY0S1D0000 12 lbs/h 5.4 kg/h 125-350 KITCY0FG00 Internal filter and gasket valid for all cylinders Tab. 7.b compactSteam pompa +030222070 - rel. 1.0 - 09.07.2008... -
Page 27: Technical Specifications
CAREL SPA technician. Any product or part that is found to be defective will, at the option of Carel SPA be replaced or repaired. Carel SPA reserves the right to inspect any part or installation before replacing or repairing defective parts. - Page 28 Note: _________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ compactSteam +030222070 - rel. 1.0 - 09.07.2008...
- Page 30 Agenzia / Agency: CAREL S.p.A. Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com...
