MAINTENANCE

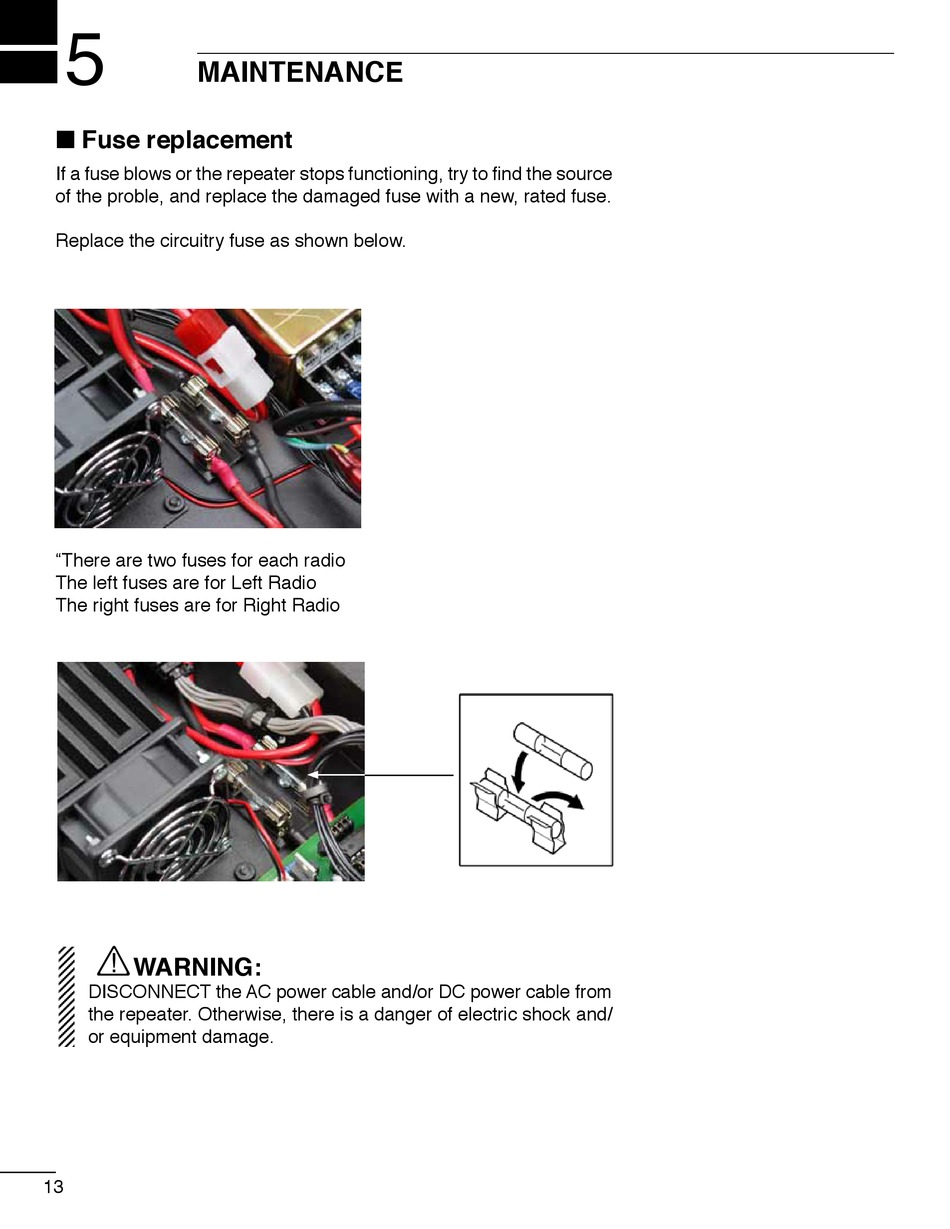

■ Fuse replacement

If a fuse blows or the repeater stops functioning, try to find the source
of the proble, and replace the damaged fuse with a new, rated fuse.
Replace the circuitry fuse as shown below.
"There are two fuses for each radio
The left fuses are for Left Radio
The right fuses are for Right Radio
R
WARNING:
DISCONNECT the AC power cable and/or DC power cable from
the repeater. Otherwise, there is a danger of electric shock and/
or equipment damage.
