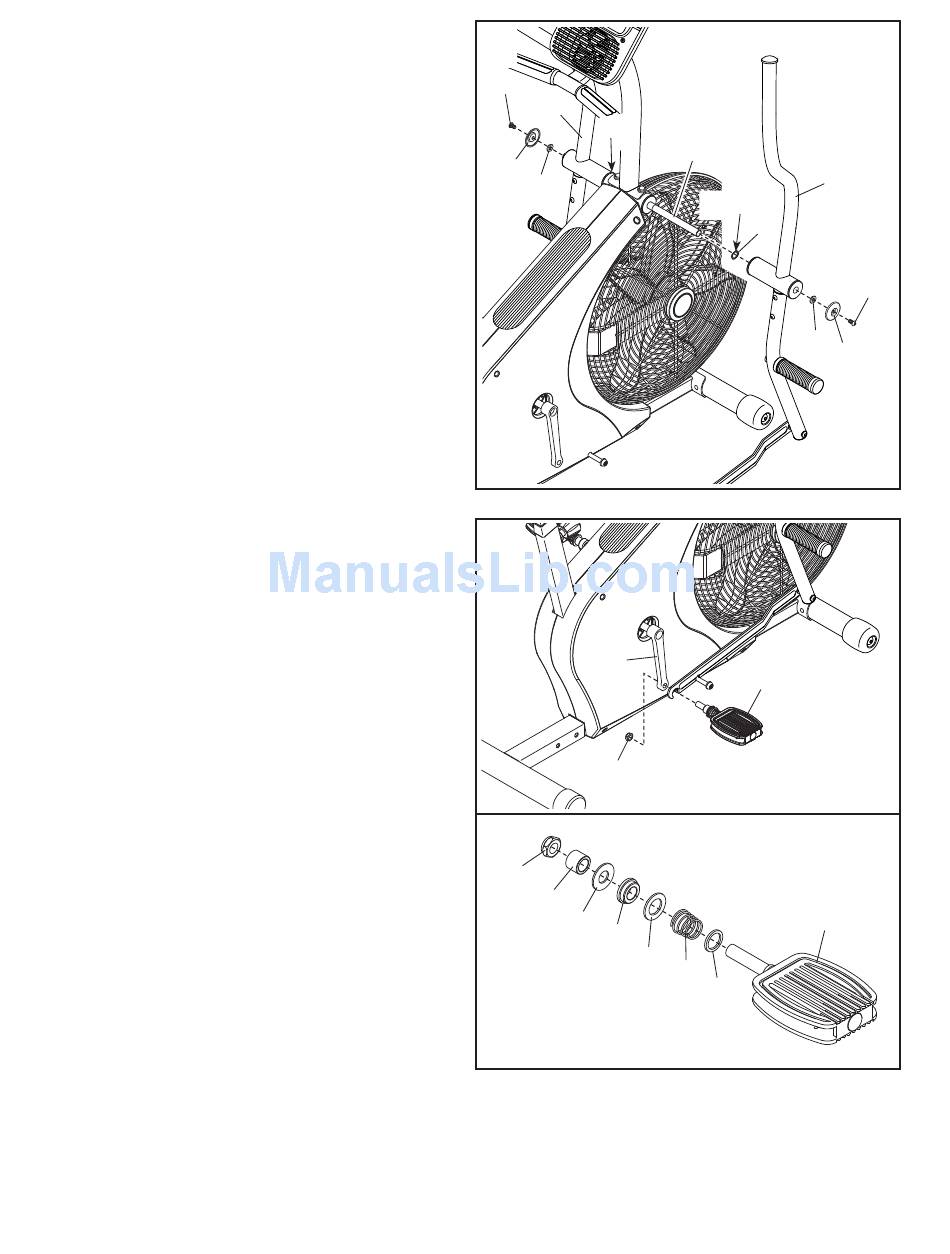

11. Apply grease to two Wave Washers (78). Slide
a Wave Washer onto each end of the Handlebar
Axle (33).
Next, slide the Right and Left Handlebars (7, 9)
onto the Handlebar Axle (33). Make sure that
each Handlebar is on the correct side.
Then, tighten an M8 x 16mm Screw (84), an Axle
Cover (49), and an M8 Washer (85) into each
end of the Handlebar Axle (33) at the same
time. IMPORTANT: To avoid damaging the
Axle Covers, do not overtighten the Screws.
12. Remove the Right 1/2" Pedal Nut (68) from the
shaft of the Right Pedal (23).
See the lower drawing. Make sure that there is
a Custom Washer (86), a Pedal Spring (42), a
Red Washer (71), a Pedal Bushing (43), a Black
Pedal Washer (79), and a Pedal Spacer (44)
on the shaft of the Right Pedal (23). In addition,
make sure that the Pedal Bushing is oriented as
shown.
Firmly tighten the shaft of the Right Pedal (23)
clockwise into the Right Crank Arm (26). Then,
tighten the Right 1/2" Pedal Nut (68) onto the
shaft.
Attach the Left Pedal (not shown) in the
same way. Firmly tighten the Left Pedal
counterclockwise into the Left Crank Arm
(not shown).
13. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
11
84
9
78
49
85
12
26
68
68
44
79
43
71
13
33
7
Grease
78
85
49
23
23
42
86
84
