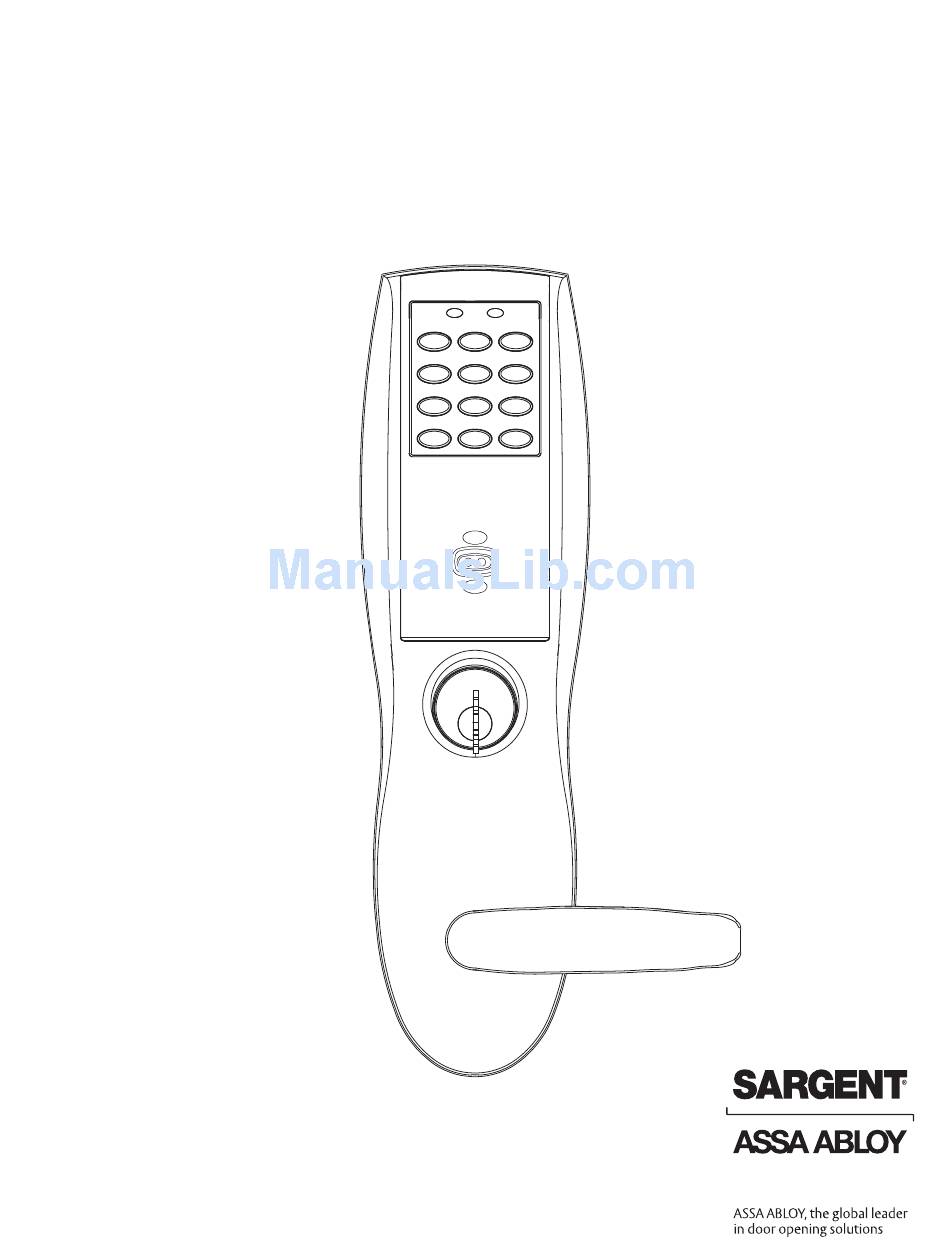

Installation Instructions For
Profile Series v.G1 Mortise Lock
A7756A
Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the v.G1 Sargent and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Assa Abloy v.G1 Sargent

  • Page 1 Installation Instructions For Profile Series v.G1 Mortise Lock A7756A Copyright © 2006, 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
  • Page 2: Table Of Contents

    Table of Contents Page Warning General Description................1 Specifications..................1 Features.....................1 Parts Breakdown................2-3 Installation Instructions..............4-9 Operational Check................10 Installation of the RF Technology Lock (G1-TU, G1-TA, G1-TP)..10 Warning: Changes or modifications to this unit not expressly approved by the party Warning responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
  • Page 3: General Description

    Profile Series v.G1 Mortise Lock General Description The SARGENT Profile v.G1 Mortise Lock is designed for areas which require stand alone authorized entry. It is a self-contained microprocessor-controlled keypad with non-volatile memory. The keypad will hold a total of 100(LK)/2000 (G1-LU, G1-PK, G1-PA, G1-TU, G1-TP, G1-TA) different user codes. User codes “01” & “02” are utilized for Master and Supervisory Codes, respectively.
  • Page 4: Parts Breakdown

    Profile Series v.G1 Mortise Lock Parts Breakdown 18/19 2, 2B 27/28 800-810-WIRE (9473) • www.sargentlock.com • A7756A...
  • Page 5 Profile Series v.G1 Mortise Lock Parts Breakdown (Continued) ITEM PART No. DESCRIPTION REQ’D 82-4190 Outside Escutcheon with Cylinder Hole and Key Pad, or Key Pad/Prox (G1-LU, G1-PK, G1-TU, G1-TP) 1 82-4191 Outside Escutcheon without Cylinder Hole and Key Pad or Key Pad/Prox (G1-LU, G1-PK, G1-TU, G1-TP) 1 82-4192 Outside Escutcheon with Cylinder Hole and Prox Only (G1-PA, G1-TA) 82-4193...
  • Page 6: Installation Instructions

    Profile Series v.G1 Mortise Lock Installation Instructions Verify Hand and Bevel of Door Left Hand Left Hand Right Hand Right Hand Hinges Left. Reverse Bevel Hinges Right Reverse Bevel Open inward. Hinges Left. Open Inward. Hinges Right. “LH” Open Outward “RH”...
  • Page 7 Profile Series v.G1 Mortise Lock Step #2 – How to Reverse Lock Hand If it is necessary to change hand of locking piece: 1. Turn lockbody to side NOT marked with RED locking piece. 2. Insert blade of common screwdriver into locking piece slot. 3.
  • Page 8 Profile Series v.G1 Mortise Lock Step #3 – Lockbody Installation Wires and connector go into the mortised area and out of the inside cylinder hole Inside of door MUST feed Connector & Wires thru (2) #12-24 x 1/2" long non-cylinder flat head screw side.
  • Page 9 Profile Series v.G1 Mortise Lock Step #5 – Installation of Outside/Inside Escutcheon & Lever Assembly NOTE: For exterior applications, gasket (82-0500) should be used to seal between escutcheon and outside door surface 1A. For 12- fire rated devices, Mortise lockbody connector and wire feed keypad ribbon cable connector and ground wire...
  • Page 10 Profile Series v.G1 Mortise Lock Step #7 – Installation of Inside Lever and Outside Cylinder 1. Put the turn lever in the horizontal position (Ref. Fig. 1). 2. Slide lever handle onto spindle until fully seated (as shown in Fig. 2). Be sure handle is horizontal and facing to the rear of the door 3.
  • Page 11 Profile Series v.G1 Mortise Lock Step #9 – Battery Installation/Application of Front Plate 1. Tighten lockbody screws (Ref. Fig. 1) 2. Attach front plate with (2) flat head screws Fig. 1 Fig. 2 Fig. 3 Fig. 4 800-810-WIRE (9473) • www.sargentlock.com • A7756A...
  • Page 12: Operational Check

    Profile Series v.G1 Mortise Lock Operational Check For devices with cylinders: 1. Insert key into cylinder and rotate (There should be no friction against lock case, wire harness or any other obstructions – refer to Section 6, Step 8 if harness friction exists. 2.
